Quick Details
-
Brand Name:
-
BEIDOU
-
Model Number:
-
CNC
-
Product name:
-
CNC
-
Camera:
-
Japanese Sony 1/2 "CCD camera with magnification of 30-230X
-
Resolution of optical ruler:
-
X/Y/Z axis 0.0002mm(0.2um)
-
Measurement accuracy:
-
≤3.0um+L/200
-
Repeatability accuracy:
-
≤2.5um+L/200
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BEIDOU
-
Model Number:
-
CNC
-
Product name:
-
CNC
-
Camera:
-
Japanese Sony 1/2 "CCD camera with magnification of 30-230X
-
Resolution of optical ruler:
-
X/Y/Z axis 0.0002mm(0.2um)
-
Measurement accuracy:
-
≤3.0um+L/200
-
Repeatability accuracy:
-
≤2.5um+L/200
Product Description
Uses:

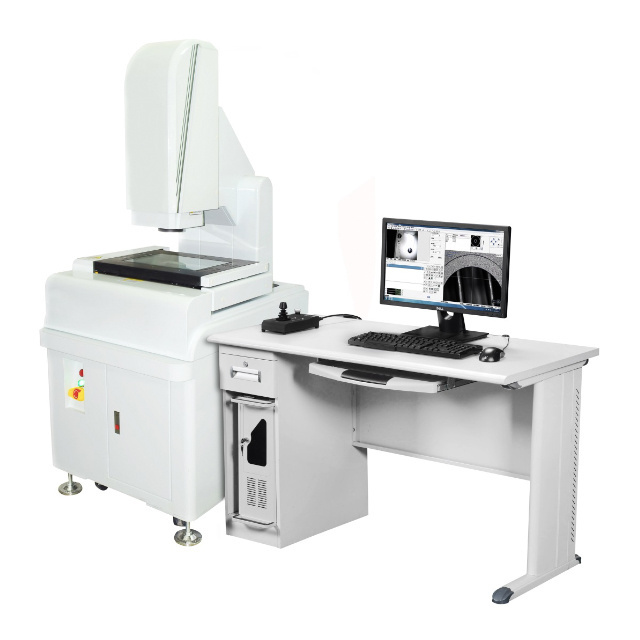

CNC automatic image measuring instrument developed for global measurement applications. It adopts flexible manual magnification and optimized software and hardware configuration to perfectly realize the batch automatic measurement requirements of various two-dimensional sizes. It is widely used in molds, precision hardware, mobile phone panels, glass, touch screens and other industries.
Technical Parameter:
| Model | CNC-3020P | CNC-4030P | CNC-5040P | |
| Overall dimensions of the instrument (mm) | 700*850*1650 | 800*900*1650 | 900*1050*1650 | |
| Instrument weight (Kg) | 330 | 400 | 550 | |
| Glass bearing (Kg) | 30 | 30 | 30 | |
| Instrument power supply and power | 220V/50HZ 800W | 220V/50HZ 800W | 220V/50HZ 800W | |
| Travel distance (mm) | 300*200 | 400*300 | 500*400 | |
| Metal table size (mm) | 450*350 | 550*450 | 700*600 | |
| Focusing stroke (mm) | Z axis: 200mm | Z axis: 200mm | Z axis: 200mm | |
| Glass table size (mm) | 330*230 | 430*330 | 530*430 | |
| Transmission form |
X/Y/Z axis imported silver precision linear guide rail matched
with imported silver grinding ball screw |
|||
| Camera | Japanese Sony 1/2 "CCD camera with magnification of 30-230X | |||
| Continuous freeze-frame zoom lens |
Automatic continuous zoom lens: high-definition zoom lens//The continuous
magnification is 0.7--5.0X |
|||
| Light source system |
5-ring and 8-zone surface light source and transmission light source LED cold light
source, long service life and adjustable brightness. |
|||
| Resolution of optical ruler | X/Y/Z axis 0.0002mm(0.2um) | |||
| Keyes laser measuring sensor LK-G30 working distancerange | 30mm | |||
|
≤3.0um+L/200 | |||
| Repeatability accuracy | ≤2.5um+L/200 | |||
| Probe measuring system | Lei Nishao, UK φ1mmφ2mm (optional) | |||
