Quick Details
-
Dimension(L*W*H):
-
5500*1000*1500MM
-
Weight:
-
3000kg
-
Name:
-
Horizontal Wood splitter
-
Keywords:
-
Wood splitter
-
Application:
-
Split Wood
-
Color:
-
Green or customized
-
Power:
-
22kw
-
Pressure:
-
25MPA
-
Piston Rod Diameter:
-
90MM
-
Forward speed:
-
80MM/Second
-
Backward speed:
-
120MM/Second
-
Opertation:
-
Automatic
-
Certification:
-
ISO9001
Quick Details
-
Use:
-
Split the wood into pieces
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill-world
-
Dimension(L*W*H):
-
5500*1000*1500MM
-
Weight:
-
3000kg
-
Name:
-
Horizontal Wood splitter
-
Keywords:
-
Wood splitter
-
Application:
-
Split Wood
-
Color:
-
Green or customized
-
Power:
-
22kw
-
Pressure:
-
25MPA
-
Piston Rod Diameter:
-
90MM
-
Forward speed:
-
80MM/Second
-
Backward speed:
-
120MM/Second
-
Opertation:
-
Automatic
-
Certification:
-
ISO9001
Product Description

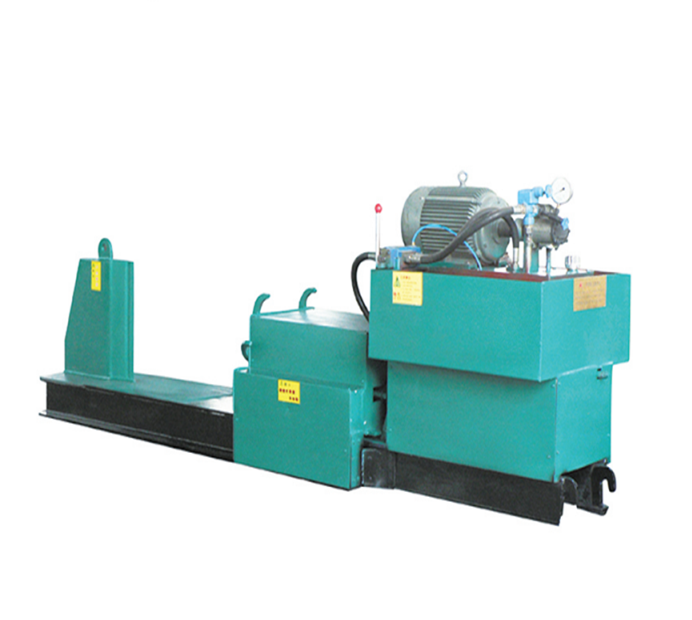

Horizontal Wood Log Splitter
|
Model
|
WP1200
|
WP1500
|
|
Motor Power
|
15KW
|
18.5KW
|
|
Stroke
|
1200MM
|
1500MM
|
|
Forward Speed
|
80MM/S
|
80MM/S
|
|
Backward Speed
|
120MM/S
|
120MM/S
|
|
Max Thrust 16MPA
|
30T
|
50T
|
|
Weight
|
2200KG
|
3000KG
|
Double Cylinder Vertical Wood Splitter
|
Motor Power
|
22KW 4 Pole
|
|
Motor Speed
|
1460RPM
|
|
Max Process Wood Diameter*Length
|
1200*3000mm
|
|
Production Capacity
|
10Tons/Hour
|
|
High Pressure Automatic Variable Pump Flow
|
80ML/R
|
|
Automatic Variable Displacement Piston Pump Pressure
|
20-35MPA
|
|
Oil Cylinder Diameter
|
125MM
|
|
Weight
|
3.5Tons
|
Other Hot Products
Related Product
Wood Drum Chipper
|
WOOD CHIPPER SH216E
|
|
|
|
Blade Roll Diameter（mm）
|
650
|
|
|
Roller Speed
|
650RPM
|
|
|
600MM T8 Blade Quantity（Pcs）
|
2
|
|
|
600MM T8 Bottom Blade
|
1
|
|
|
Feeding Inlet（mm）
|
300*600
|
|
|
Production Capacity（T/H)
|
7-10
|
|
|
Main Motor Power（kw)
|
55
|
|
|
Feeding Roll Motor Power（kw）
|
3*1 , 4*1
|
|
|
Outlet Motor Power
|
3KW 6 Pole
|
|
|
Oil Pump Motor Power（kw）
|
1.5KW
|
|
|
Feeding Conveyor
|
550MM*6 Meters
|
|
|
Outlet Conveyor
|
600MM*10 Meters
|
|
