Quick Details
-
Model Number:
-
Z41H-16C/25C/40C/63C/100C
-
Brand Name:
-
yaosheng
-
Body material:
-
WCB
-
Connection:
-
Flange Ends
-
Type:
-
Normal Colse/Open
-
Standard:
-
GOST
-
Working pressure:
-
PN16/PN25/PN40
-
Operation:
-
Manual Handle
-
Working Temperature:
-
≤425
-
packing:
-
Plywood Case
-
Payment:
-
30% in advance
Quick Details
-
Port Size:
-
DN50-DN800
-
Warranty:
-
12 Months, 12 Months
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Z41H-16C/25C/40C/63C/100C
-
Brand Name:
-
yaosheng
-
Body material:
-
WCB
-
Connection:
-
Flange Ends
-
Type:
-
Normal Colse/Open
-
Standard:
-
GOST
-
Working pressure:
-
PN16/PN25/PN40
-
Operation:
-
Manual Handle
-
Working Temperature:
-
≤425
-
packing:
-
Plywood Case
-
Payment:
-
30% in advance
Product Description

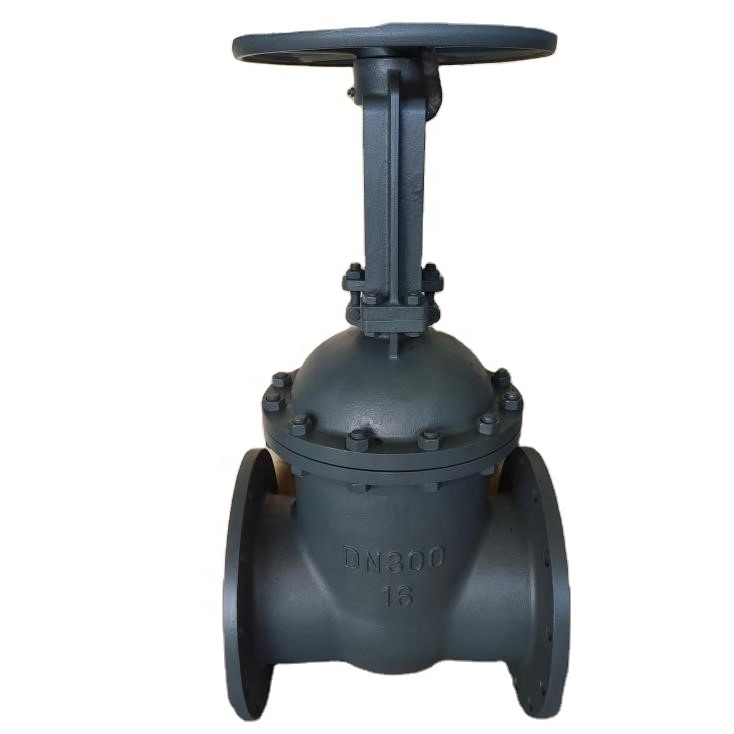

The gate valve prodeced by
Yaosheng factory
is widely used in petrochemical industry, pharmacy and power industry ect. The valve is suitable to the various pipeline which is fully open or fully closed.
|
Main parts and materials
|
|
|
|
Main parts
|
Materials
|
|
|
Valve Body
|
WCB
|
|
|
Bonnet
|
WCB
|
|
|
Disc
|
WCB+Stainless steel
|
|
|
Stem
|
WCB
|
|
|
Yoke Nut
|
Ductile Iron
|
|
|
Function and specification
|
|
|
|
|
|
|||||
|
Type
|
PN(MPa)
|
Testing pressure (MPa)
|
|
Suitable temperature(℃)
|
Suitable medium
|
|||||
|
|
|
Strength (water)
|
Enclose (water)
|
|
|
|||||
|
Z41H-16C
|
1.6
|
2.4
|
1.76
|
≤425℃
|
water,vapour,oil
|
|||||
|
Outline and measurement
|
|
|
|
|
|
|
||||||
|
Type
|
DN
(mm)
|
Measurement(mm)
|
|
|
|
Reference weight(kg)
|
||||||
|
|
|
L
|
D1
|
H
|
Z*Фd
|
|
||||||
|
Z41H-16C
|
50
|
180
|
125
|
285
|
4-18
|
12.7
|
||||||
|
|
80
|
210
|
160
|
337
|
4-18
|
20.5
|
||||||
|
|
100
|
230
|
180
|
383
|
8-18
|
27
|
||||||
|
|
150
|
280
|
240
|
522
|
8-22
|
52
|
||||||
|
|
200
|
330
|
295
|
647
|
12-22
|
80
|
||||||
|
|
250
|
450
|
355
|
815
|
12-26
|
119
|
||||||
|
|
300
|
500
|
410
|
886
|
12-26
|
156
|
||||||
|
|
400
|
600
|
525
|
1241
|
12-30
|
|
||||||
Tips:
1.
Compact structure, reasonable design, good valve rigidity, smooth passage.
2.
The use of flexible graphite packing, reliable sealing, light and flexible operation
Production process
The crystallization of
20 years
of manufacturing experience,
all products are fully inspected before leaving the factory,
achivev
100% qualified
,
ensuring that all products are exquisite.
Product packaging
(1) We also use plywood cases to package our gate valve.
(2) One 20' container can in bulk loaded on 20 pcs plywood cases more or less.
(4) We can pack according to specific customers' requests.
(5) Customers' logos are available on package of the gate valve
