Quick Details
-
Weight:
-
3300kg
-
Dimension(L*W*H):
-
4370x2100x2580
-
Certification:
-
BV,ISO certification
-
Theoretic output:
-
30m3/h
-
Theoretic outlet pressure:
-
8Mpa
-
Theoretic delivery height:
-
130m
-
Theoretic delivery distance:
-
320m
-
Max pressure:
-
8Mpa
-
Hopper volume:
-
450L
-
Concrete cylinder spec.:
-
180x1000
-
Maximum allowable size of bone particles:
-
gravel 25, pebbles 30
-
Power:
-
380V
-
Name:
-
JBT30 concrete mixer pump with 10-30 cum/hr capacity
Quick Details
-
Power Type:
-
Electric
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FOCUS concrete mixer pump
-
Weight:
-
3300kg
-
Dimension(L*W*H):
-
4370x2100x2580
-
Certification:
-
BV,ISO certification
-
Theoretic output:
-
30m3/h
-
Theoretic outlet pressure:
-
8Mpa
-
Theoretic delivery height:
-
130m
-
Theoretic delivery distance:
-
320m
-
Max pressure:
-
8Mpa
-
Hopper volume:
-
450L
-
Concrete cylinder spec.:
-
180x1000
-
Maximum allowable size of bone particles:
-
gravel 25, pebbles 30
-
Power:
-
380V
-
Name:
-
JBT30 concrete mixer pump with 10-30 cum/hr capacity
JBT30 concrete mixer pump with 10-30 cum/hr capacity
1. Application of JBT30 concrete mixer pump :
Group building, bridges, and the small construction projects, 4-6 floors building.
2. Main Features of JBT30 concrete mixer pump :
1) New combination of concrete pump and concrete mixer.
2) Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring
Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions
3)The pump construction operation system used in all automated, all material mixing, high pressure pumping.
Video: https://www.youtube.com/watch?v=2CA3BPaxnqE
3. Technical Data of JBT30 concrete mixer pump :
|
Item |
Unit |
JBT30 . 08 . 30 E |
|
|
Pumping system |
Theoretic output |
m³/h |
30 |
|
Theoretic outlet pressure |
Mpa |
8 |
|
|
Theoretic delivery height |
m |
130 |
|
|
Theoretic delivery distance |
m |
320 |
|
|
Pumping frequency |
times/min |
15 |
|
|
Distribution valve type |
|
S pipe valve |
|
|
Concrete cylinder spec. (inner dia. x stroke) |
mm |
Φ180x1000 |
|
|
Oil cylinder spec. (outer dia. x inner dia. x stroke) |
mm |
Φ100xΦ70x1000 |
|
|
Outlet diameter |
mm |
Φ150 |
|
|
Delivery pipe inner diameter |
mm |
Φ125 |
|
|
Hopper volume |
L |
450 |
|
|
Rated voltage |
V |
380 |
|
|
Main motor power |
Kw |
30 |
|
|
Vibrating motor power |
Kw |
0.04 |
|
|
Hydraulic circuit type |
|
open |
|
|
Main system max. oil pressure |
MPa |
22 |
|
|
Distributing system oil pressure |
MPa |
16 |
|
|
Mixing system oil pressure |
MPa |
9 |
|
|
Max. Mixing speed |
r/min |
24 |
|
|
Oil tank volume |
L |
120 |
|
|
Max. aggregate diameter |
mm |
≤30 |
|
|
Concrete slump scope |
mm |
80~200 |
|
|
Outer dimension (L*W*H) |
mm |
4370x2100x2580 |
|
|
Weight |
Kg |
3300 |
|
|
Mixing system |
Mixing volume per time |
m³/time |
0.4 |
|
Mixing volume per hour |
m³/h |
16 |
|
|
Mixing motor power |
Kw |
3×2=6 |
|
|
Lifting motor power |
Kw |
4.5 |
|
|
Water pump power |
Kw |
0.55 |
|
|
Vibrating motor power |
Kw |
0.55 |
|

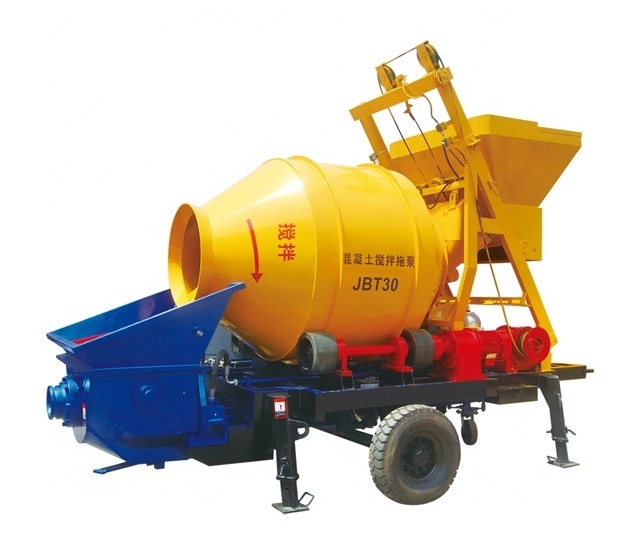

View of JBT30 concrete mixer pump :
JBT30 small concrete mixer pump in use:
