Quick Details
-
Voltage:
-
Diesel engine driven
-
Dimension(L*W*H):
-
2880*1740*1760mm
-
Weight:
-
1950kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Caudal:
-
10m3/min / 350CFM
-
Presion de trabajo:
-
8BAR /116PSIG
-
Modo de impulsado:
-
Transmision directa , impulsado por diesel
-
Potencia nominal:
-
84/115kw (112/154hp)
-
Tipo de motor:
-
Refrigerado por agua, de cuatro tiempos, inyeccion directa
-
Numero de cilindros:
-
4
-
Velocidad de rotacion nominal (rpm):
-
2400rpm
-
Velocidad sin carga:
-
1400
-
valvula de salida:
-
1-G2''.1-G1''
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Denair
-
Model Number:
-
DACY
-
Voltage:
-
Diesel engine driven
-
Dimension(L*W*H):
-
2880*1740*1760mm
-
Weight:
-
1950kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Caudal:
-
10m3/min / 350CFM
-
Presion de trabajo:
-
8BAR /116PSIG
-
Modo de impulsado:
-
Transmision directa , impulsado por diesel
-
Potencia nominal:
-
84/115kw (112/154hp)
-
Tipo de motor:
-
Refrigerado por agua, de cuatro tiempos, inyeccion directa
-
Numero de cilindros:
-
4
-
Velocidad de rotacion nominal (rpm):
-
2400rpm
-
Velocidad sin carga:
-
1400
-
valvula de salida:
-
1-G2''.1-G1''

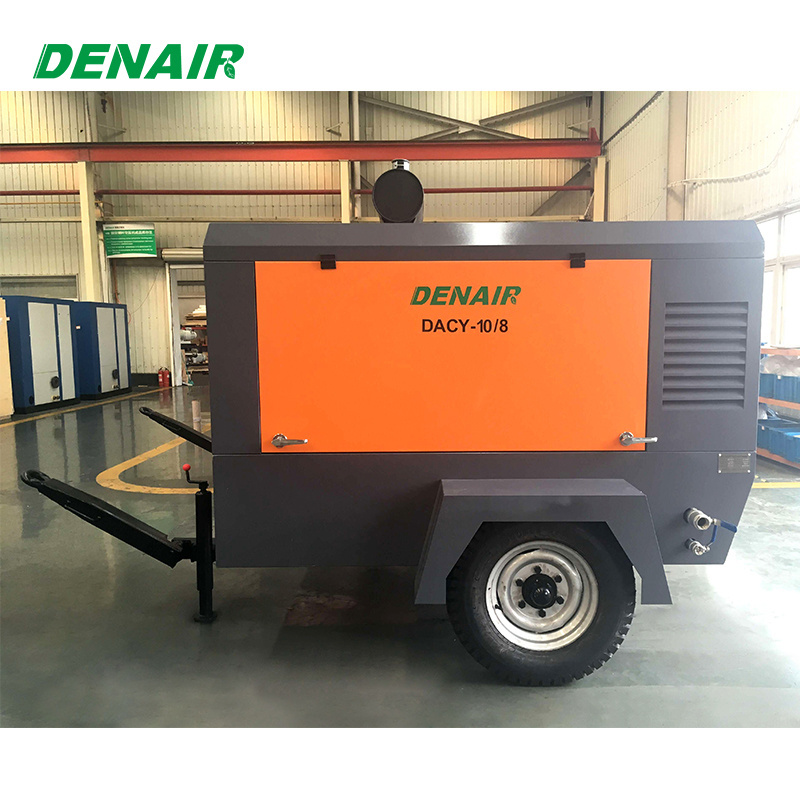

Diesel Engine Portable Mobile Towable Rotary Screw Air Compressor Advantages
- Use Germany KAPP machine and German manufacturing technique to process the compre ssion element, the components manufactured to the highest standards and precision aligned roller-bearings ensure long service life with maximum reliability .
- Heavy-duty CUMMINS diesel engine for extended operation.
- Excellent components, for example, Germany MANN oil filter and Siemens electronics for high performance.
- Automatic operation system helps the operator to master the operating skills quickly, unattended operation and remote control are available.
- Conform to CE , ISO9001 and energy saving certification , etc.
-
Applications: mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry,
quarry,
sandblasting,
pip
eline
pressure test, public works, etc.
Main Structure
Diesel Engine:
-
Heavy Duty and Less Fuel Consumption Compared to Similar engine Designs, better in durability and longevity.
Superior Air Filter and Oil Filter:
- Superior air filter with two-stage dust removal and filtering system with effciency of up to 99.9% even in heavy-duty environments
- Extends the service life of the compressor parts and components, ensures high air quality
- Quality oil filter with excellent oil purification capability ensures a clean and safe oil system
- Long service period and easy filter change reduce maintenance costs.
State-of-the-art Screw Element:
- Original DENAIR air end
- Advanced SAP profile design
- The material of the rotors is Americal specialty steel
- Superior Sweden SKF element bearings
Technical Parameters
| DENAIR Hot Sale Series Diesel Portable Air Compressors | |||||||||
| Model | Machine | Diesel Engine | |||||||
| Free Air | Normal | Dimensions | Weight | Manufacturer | Model |
Rated Power |
|||
| Delivery | Working Pressure | (Without Towbar) | |||||||
| M3/min | CFM | Bar(e) | Psig | L*W*H(mm) | kg | kw | |||
| DACY0507 | 5.00 | 177 | 7 | 102 | 2210*1450*1365 | 900 | Yanmar | 4TNV94L | 34.6 |
| DACY0513 | 5.00 | 177 | 13 | 189 | 3020*1650*1730 | 900 | Yanmar | 4TNV98T | 64 |
| DACY0707 | 7.50 | 265 | 7 | 102 | 3020*1650*1730 | 1300 | Yanmar | 4TNV98T | 64 |
| DACY0710 | 7.00 | 247 | 10 | 145 | 3020*1650*1730 | 1300 | Yanmar | 4TNV98T | 64 |
| DACY1008 | 10.00 | 355 | 8 | 116 | 3240*1880*2100 | 1800 | Cummins | QSB3.9-C110-31 | 81 |
| DACY1010 | 10.00 | 355 | 10 | 145 | 3240*1880*2100 | 1800 | Cummins | QSB3.9-C130-32 | 97 |
| DACY1207 | 12.00 | 424 | 7 | 102 | 3240*1880*2100 | 1800 | Cummins | QSB3.9-C130-32 | 97 |
| DACY1208 | 12.00 | 424 | 8 | 116 | 3240*1880*2100 | 1800 | Cummins | QSB3.9-C150-31 | 110 |
| DACY1013 | 10.00 | 355 | 13 | 189 | 3240*1880*2100 | 1800 | Cummins | QSB3.9-C150-31 | 110 |
| DACY1110 | 11.00 | 388 | 10 | 145 | 3240*1880*2100 | 1800 | Cummins | QSB3.9-C150-31 | 110 |
| DACY1313 | 13.00 | 459 | 13 | 189 | 3500*2050*2300 | 2400 | Cummins | QSB5.9-C190-31 | 142 |
| DACY1610 | 16.00 | 565 | 10 | 145 | 3500*2050*2300 | 2400 | Cummins | QSB5.9-C190-31 | 142 |
| DACY1708 | 17.00 | 600 | 8 | 116 | 3500*2050*2300 | 2400 | Cummins | QSB5.9-C190-31 | 142 |
| DACY1320 | 13.00 | 459 | 20 | 190 | 3500*2050*2300 | 2700 | Cummins | QSB5.9-C210-30 | 154 |
|
DACY1713 |
17.00 | 600 | 13 | 189 | 3500*2050*2300 | 3000 | Cummins | QSB5.9-C210-30 | 154 |
|
DACY1518 |
15.00 | 530 | 18 | 261 | 3500*2050*2300 | 3000 | Cummins | QSB5.9-C210-30 | 154 |
|
DACY2013 |
20.00 | 706 | 13 | 189 | 4230*1850*2280 | 4000 | Cummins | QSC8.3-C260-30 | 194 |
|
DACY2110 |
21.00 | 742 | 10 | 145 | 4230*1850*2280 | 4000 | Cummins | QSC8.3-C260-30 | 194 |
| DACY2508 | 25.00 | 884 | 8 | 116 | 4230*1850*2280 | 4000 | Cummins | QSC8.3-C260-30 | 194 |
| DACY2114 | 21.00 | 742 | 14 | 203 | 4230*1850*2280 | 4000 | Cummins | QSC8.3-C260-30 | 194 |
>> 50 more models, pls
inquire to us online!
