Quick Details
-
Model Number:
-
SPX500
-
Product Name:
-

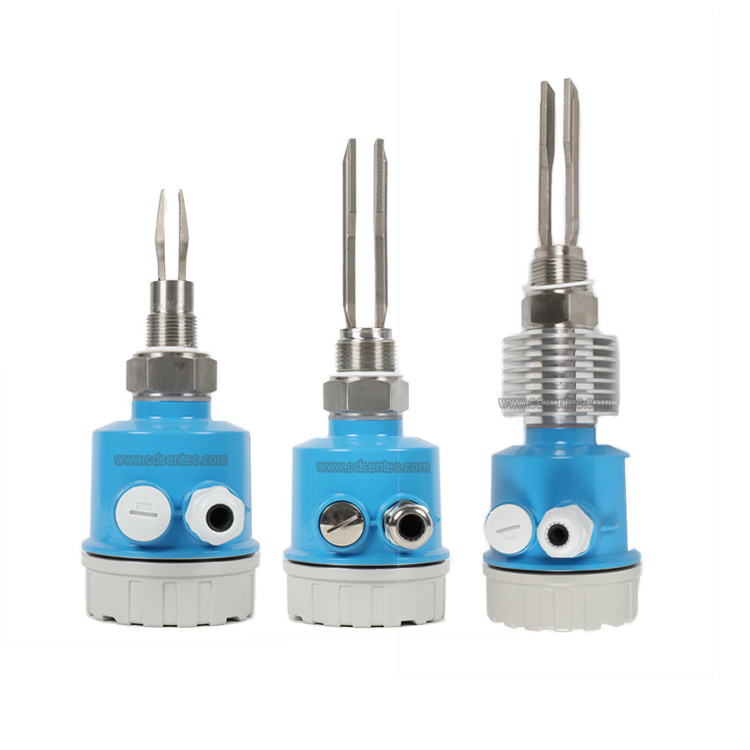

Tuning Fork Position Switch
-
Tuning fork vibration frequency:
-
300±50Hz-20°C~220°C
-
Medium temperature range:
-
-20°C~220°C
-
Ambient temperature:
-
-20°C~80°C
-
Environmental humidity:
-
≤95%RH
-
Maximum liquid viscosity:
-
<1000mm2/s
-
Measured medium repose angle:
-
≥200
-
Pressure range:
-
≤1MPa
-
Keywords:
-
level switch
-
Application:
-
tuning fork level switch
Quick Details
-
Warranty:
-
12 month
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
SPX500
-
Product Name:
-
Tuning Fork Position Switch
-
Tuning fork vibration frequency:
-
300±50Hz-20°C~220°C
-
Medium temperature range:
-
-20°C~220°C
-
Ambient temperature:
-
-20°C~80°C
-
Environmental humidity:
-
≤95%RH
-
Maximum liquid viscosity:
-
<1000mm2/s
-
Measured medium repose angle:
-
≥200
-
Pressure range:
-
≤1MPa
-
Keywords:
-
level switch
-
Application:
-
tuning fork level switch
The tuning fork liquid level switch works by vibrating the tuning fork at a certain resonant frequency through a pair of
piezoelectric crystals mounted on the tuning fork base. When the tuning fork of the tuning fork liquid level switch is in contact with the measured medium, the frequency and amplitude of the tuning fork will change. These changes of the tuning fork liquid level switch are measured by the intelligent circuit, processed and converted into a switching signal.
piezoelectric crystals mounted on the tuning fork base. When the tuning fork of the tuning fork liquid level switch is in contact with the measured medium, the frequency and amplitude of the tuning fork will change. These changes of the tuning fork liquid level switch are measured by the intelligent circuit, processed and converted into a switching signal.
|
Voltage
|
AC220V/DC24V
|
|
|
||
|
Power
|
≤1W
|
|
|
||
|
Ambient temperature
|
Meter -30 ° C ~ 100 ° C
|
|
|
||
|
Work pressure
|
≤2Mpa
|
|
|
||
|
Media specific gravity
|
>0.6g/cm3
|
Digital signal
|
Switch signal
|
||
|
Action point
|
Insert vertically into the water about 25mm
|
RS485 that support Modbus
|
NPN (with PP pulse output option) Relay (AC:5A/250V DC:10A/24V)
|
||
|
Response time
|
About 1 second
|
|
|
||
|
Output method
|
A set of relay outputs (3A/220VAC; 3A/30VDC)
|
|
|
||
|
Output delay
|
Adjustable from 1 to 50 seconds
|
|
|
||
|
Sensitivity
|
Adjustable according to materials, can be set to 10
|
|
|
||
|
Operating temperature
|
Fork body -30~150 °C (can accept high temperature custom)
|
|
|
||
|
Fork material
|
SUS304, SUS316, etc.
|
|
|
||
|
Connection method
|
Various standard threads, flanges, chuc
|
|
|
||
Certifications
Packaging&Shipping
Q:What kind of products do you offer ?
A:SenTec supply pressure sensors, level sensors, temperature sensors , fiow sensors and environment sensors. Export more than 70+countries.
Q:Could I get samples?
A:Yes,we have half-stock ready products for customized sample.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX, CE and ROSH ect.
Q:What is the delivery time?
A:For standard specification,delivery time 5-7days; For customized specification 10-20days.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Trade Assurance.
Q: What is the warranty for your product ?
A: Warranty: 12-24Month, Lifetime maintenance
Q: How to contact you?
A: Email/Skype: sales01(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848456685
The specific price is subject to the parameters, please contact us for the quotation
