Quick Details
-
Power Source:
-
Manual
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSTB
-
Model Number:
-
KSD301-R Series
-
Product name:
-

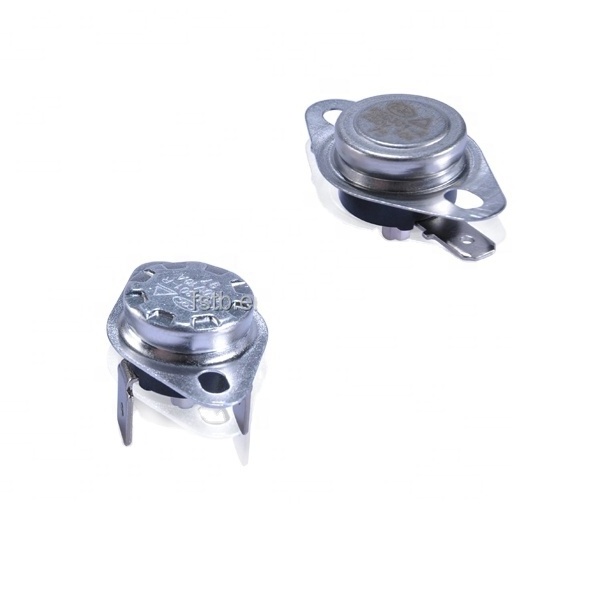

KSD301 bimetal thermostat
-
Base:
-
Resin base
-
Max OT:
-
180℃
-
Rated current::
-
5A/7A/10A/16A
-
Rated voltage:
-
120V/240V/250V
-
Life cycles::
-
10000 times
-
Rated Voltage:
-
120V,240V, 250V
-
Cycle certification::
-
CQC/ TUV
Quick Details
-
After-sales Service Provided:
-
Return and Replacement
-
Warranty:
-
1 Year
-
Application:
-
Commercial, Household
-
Power Source:
-
Manual
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSTB
-
Model Number:
-
KSD301-R Series
-
Product name:
-
KSD301 bimetal thermostat
-
Base:
-
Resin base
-
Max OT:
-
180℃
-
Rated current::
-
5A/7A/10A/16A
-
Rated voltage:
-
120V/240V/250V
-
Life cycles::
-
10000 times
-
Rated Voltage:
-
120V,240V, 250V
-
Cycle certification::
-
CQC/ TUV
Thermostat Switches 120V Thermo Controller Electric Iron Heating Element High Temperature Limit Switch Auto
Description:
KSD301 series snap-action thermostat is a kind of miniature hermetically sealed bimetal thermal protector (1/2" disc). It is of single-pole single-throw structure and works under resistive load.
KSD301 series is in wide use in a great variety of compact type home appliances, such as coffee maker, water dispenser, toaster, microwave oven, electric pad and portable icebox etc., to provide temperature control or temperature protection.
Advantages:
Easy mounting.
Rapid heat transmission.
High durability.
No breakdown, no flashover.
Every product will be tested, extremely high temperature pass rate.
High precision.
Parameter:
|
Use |
Temperature control/Overheat protection |
|
Appliance |
Coffee maker/ Drinking machine/toaster/Microwave oven/ Heating/ Portable Refrigerator/etc |
|
Reset type |
Manual |
|
Base material |
Ceramic base |
|
Amperage |
5A/7A/10A/16A |
|
Max. Operating Temperature |
180 °C |
|
Differential |
Refer to the regulation |
|
Tolerance |
Refer to the regulation |
|
Protection class |
IP00 |
|
Contact material |
Silver/Gold |
|
Dielectric Strength |
Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
|
Insulation Resistance |
With a DC 500V megger, borne DC 500V, the tested value is over 10M W . |
|
Resistance Between Terminals |
Below 50m W |
|
Temp. characteristics: |
Normal type: OFF temperature higher than ON temperature.(Normal close) One-shot type: The thermostat switches on at room temperature and it won’t be able to reset after switching off. |
|
Maximum ambient temperature |
280 °C (Long period) 310 °C (Less than 15 min) |
|
Diameter of bimetal disc |
F 12.8mm ( 1/2″ ) |
|
Approvals |
CQC/TUV |
|
Terminal type |
Customized (Refer to our specification) |
|
Cover/Bracket |
Customized (Refer to our specification) |
Dimension of the main body:
Safety certificate:
|
Max. OT |
Life |
120V 7A 240V 5A |
250A 5A |
250V 10A |
125V 16A |
250V 16A |
|
145 ° C |
10,000 |
|
CQC |
|
|
CQC, TUV |
|
190 ° C |
10,000 |
|
|
CQC/TUV |
|
Order detail:
|
Packaging details |
200pcs per inner box, 5 box(1000pcs) per carton, the carton size is 480(L)*282(W)*218(H)(mm) |
|
Minimum order quantity |
1000 pcs |
|
Payment terms |
T/T, West Union |
|
Delivery time |
15 ~ 20 days |
Installation and Direction for Use:
- Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.
- The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
- When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.
- If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.
- The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.
- Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
- The terminals should be bent, or else, the reliability of electric connection will be influenced.
