Quick Details
-
Conveyor Speed:
-
0.2m/s
-
Conveyor Height:
-
300mm
-
Conveyor Max.Load:
-
200kg(Uniform distribution)
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Techik
-
Tunnel Size:
-
1018mm(Width)*1010mm(Height)
-
Conveyor Speed:
-
0.2m/s
-
Conveyor Height:
-
300mm
-
Conveyor Max.Load:
-
200kg(Uniform distribution)

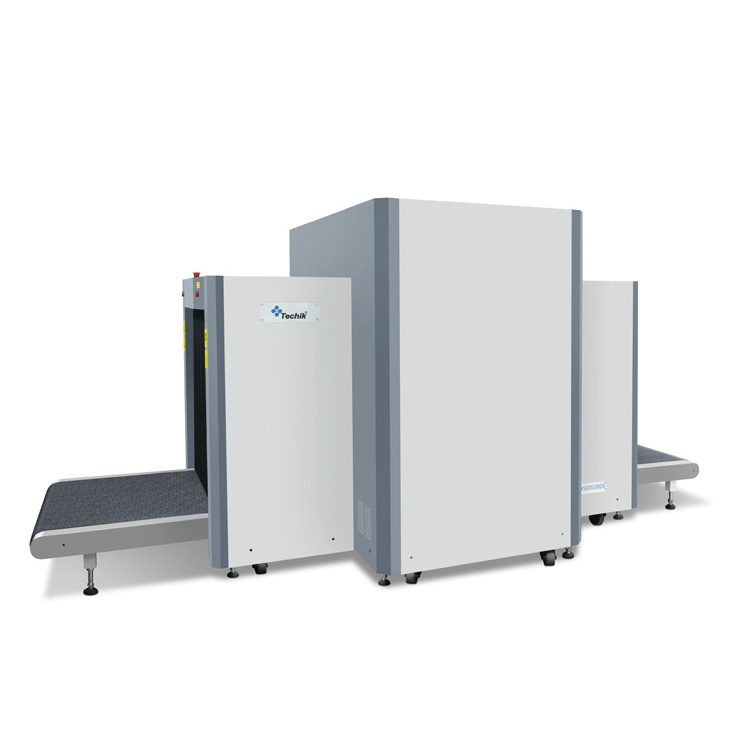

TE-XS100100 X-ray Baggage Scanner
Appl ication: security inspection for carry-on baggage or parcels etc. It is an ideal security inspection system to inspect large size baggage in airports, railway stations, bus stands, government institutions, hotels etc.
Main Features:
- Cost Effective
- Image Archiving
- Multi-language Support
- Dual-energy Material Discrimination
- Assist to Detect Drug and Explosive Powder
- Powerful X-ray Source Imaging Performance and Penetration
- Extended Height Tunnel with Square Opening Easily Accepts Outsized Parcels, Boxes and Other Freight
Technical Parameters:
|
General Specification |
||
|
Tunnel Size |
1018mm(width) × 1010mm(height) |
|
|
Conveyor Speed |
0.2m/s |
|
|
Conveyor Height |
300mm |
|
|
Max. Load |
200kg(even distribution) |
|
|
Wire Resolution |
40AWG(0.0787mm of wire)> 44 SWG |
|
|
Spatial Resolution |
horizontal dia1.0mm vertical dia1.0mm |
|
|
Penetrable Resolution |
32AWG(0.202mm) |
|
|
Steel Penetration |
40mm |
|
|
Monitor |
17-inch color monitor with resolution:1280×1024 |
|
|
X-ray Generator |
||
|
Anode Voltage |
140-160Kv |
|
|
Cooling/Run Cycle |
sealed oil cooling/ 100% |
|
|
Per-inspection Dose |
less than 1.0μGy |
|
|
Image Processing System |
||
|
Image Enhancement Features |
color/black & white image ,organic and inorganic elimination ,alterable absorption, super-enhancement, negative mode, high/low energy penetrability, pseudo color etc |
|
|
Image Resolution |
organics: orange inorganic: blue mixture and light metal: green |
|
|
Selection and Enlargement |
variable zoom, 1-32 times enlargement, support continuous enlargement |
|
|
Image Playback |
50 checked images playback |
|
|
Storage Capacity |
at least 100,000 images |
|
|
Radiation Safety |
||
|
Radiation Leakage |
less than 1.0μGy /h ( 5cm away from shell) comply with all domestic and international health and radiation safety standards |
|
|
Film Safety |
in accordance with ASA/ISO1600 film safe standard |
|
|
System Functions |
||
|
TIP(Threat Image Projection), hazardous area alarm,high density alarm, date / time display, baggage counter, user management, system timing, ray beam timing, power on self test, image back-up and search, maintenance and diagnosis, bi-directional scanning |
||
|
Optional Functions |
||
|
video monitor system/LED(liquid crystal display)/energy-conservation and environmental-protection equipment/electronic weighing system/speaker etc |
||
|
Installation Data |
||
|
External Dimension |
3960mm(length) × 1270mm(width) × 1800mm(height) |
|
|
Operation Console Size |
1100mm(length) × 704mm(width) × 1195mm(height) |
|
|
Weight |
950Kg |
|
|
Operation Voltage |
AC220V(-15%~+10%) 50±3Hz |
|
|
Power Consumption |
1kVA |
|
|
Operation Temperature |
0℃±3℃~ +40℃±2℃ |
|
|
Storage Temperature |
-40℃±3℃~+ 60℃±2℃ |
|
|
Relative Humidity |
5%~95%(non-condensing) |
|
|
Noise Level |
56dB(A) |
|
