Quick Details
-
Model Number:
-
SFA20-1
-
Business Type:
-
Manufacturer
-
Colour:
-
white,black,grey etc
-
Appearence:
-
rectangle,square,arc-floor,ladder-shaped...
-
Size:
-
10x10mm,15x10mm,20x10mm.........200x100mm
-
Lenght:
-
2-4 meters or up to customer
-
Thickness:
-
0.55mm,0.6mm,0.7mm.....3.0mm
-
MOQ:
-
8000 meters
-
Brand:
-
OEM
-
Performance:
-
With adhesive or without adhesive
-
Standard:
-
ISO TUV IEC
Quick Details
-
Brand Name:
-
Shingfong
-
Type:
-
Solid
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SFA20-1
-
Business Type:
-
Manufacturer
-
Colour:
-
white,black,grey etc
-
Appearence:
-
rectangle,square,arc-floor,ladder-shaped...
-
Size:
-
10x10mm,15x10mm,20x10mm.........200x100mm
-
Lenght:
-
2-4 meters or up to customer
-
Thickness:
-
0.55mm,0.6mm,0.7mm.....3.0mm
-
MOQ:
-
8000 meters
-
Brand:
-
OEM
-
Performance:
-
With adhesive or without adhesive
-
Standard:
-
ISO TUV IEC
1). Material : New PVC Material
2). Standard : IEC 61084-2-1
3). Apperance : Regular round, smooth, light, no impurity, beautiful Decent packaging
4). Color : Color pure, no have discoloration and aging
5). Smell : no scent,environmental.
6). Use : For internal wiring,protecting the wire under 1200v.
7). Effect : After using,wiring easily and trimly,installing reliably,and is convenient for maintaining and searching and exchanging.
8). Lifetime : ShingFong brand of PVC pipes and PVC trunking are Anti-aging,normal use life can be up to 50 years.
Product Features:
1). Thickness : With appropriate temperature and accurate molds machinery technology, the thickness,size,shape can be precisely controlled.
2). Toughness : If you bend ,can not be easier to break
3). Hardness : Under pressure ability, high impact resistance
4). Fire-resistance: Flame-retardant PVC resin,highly combustion-retardant,quickly self-extinguishing.
5). Corrosion resistance : moisture, acid and alkali resistance, assuring a lower maintenance cost and a longer performance life
7). Non-conductive : excellent electricity insulation, which resist 25kv voltage , assuring a safe system
8).Installation: easy to open and close ,convenient push-pull,installed with solvent cementing and threading joinin
9). Save cost : Can save much more installation expense than metal pipe and fittings because of light weight and convenient for installation.
|
PVC TRUNKING |
Model |
Size(W*H)mm |
Thickness(mm) |
Packing(pcs/bud) |
|
SF10-1 |
10X10 |
0.5/0.6 |
50 |
|
|
SF12-1 |
12X12 |
0.6 |
50 |
|
|
SF15-1 |
15X10 |
0.55/0.70 |
30 |
|
|
SF16-1 |
16X16 |
0.7/1.0 |
30 |
|
|
SF18-1 |
18X9 |
0.55/0.70 |
30 |
|
|
SF20-1 |
20X10 |
0.55/0.70/0.75/0.90 |
30 |
|
|
SF20-2 |
20X20 |
1.0/1.20/1.40 |
25 |
|
|
SF24-1 |
24X14 |
0.60/0.70/0.80/0.95 |
25 |
|
|
SF25-1 |
25X16 |
0.55/0.60/0.65/0.75/0.85/1.0 |
25 |
|
|
SF25-2 |
25X25 |
0.60/0.80/1.2 |
20 |
|
|
SF30-1 |
30X13 |
0.60/0.80 |
20 |
|
|
SF30-2 |
30X15 |
0.65/0.85 |
20 |
|
|
SF39-1 |
39X19 |
0.70/0.80/0.90/1.0 |
15 |
|
|
SF40-1 |
40X16 |
0.80/1.25 |
15 |
|
|
SF40-2 |
40X25 |
0.80/1.0/1.3 |
12 |
|
|
SF40-3 |
40X40 |
1.0/1.3 |
9 |
|
|
SF50-1 |
50X25 |
0.75/1.0 |
10 |
|
|
SF50-2 |
50X50 |
1.0/1.5 |
8 |
|
|
SF60-1 |
59X22 |
0.85/1.0/1.3 |
10 |
|
|
SF60-2 |
60X40 |
1.2/1.5 |
6 |
|
|
SF60-3 |
60X60 |
1.1/1.6 |
6 |
|
|
SF75-1 |
75X50 |
1.2/1.4/1.7 |
4 |
|
|
SF75-2 |
75X75 |
1.3/1.7 |
2 |
|
|
SF80-1 |
80X40 |
1.2/1.5 |
4 |
|
|
SF80-2 |
80X50 |
1.2/1.4 |
4 |
|
|
SF100-1 |
99X27 |
1.2/1.4 |
5 |
|
|
SF100-2 |
100X40 |
1.3/1.7 |
4 |
|
|
SF100-3 |
100X50 |
1.3/1.8 |
4 |
|
|
SF100-4 |
100X60 |
1.4/1.8 |
2 |
|
|
SF100-5 |
100X100 |
1.3/1.8 |
2 |
|
|
SF150-1 |
150X50 |
2.3 |
2 |
|
|
SF150-2 |
150X100 |
2.3 |
1 |
|
|
SF200-1 |
200X100 |
2.3 |
1 |
|
|
SFF25-1 |
25X8 |
1.25 |
30 |
|
|
SFF35-1 |
35X10 |
1.4 |
30 |
|
|
SFF50-1 |
50X15 |
1.8 |
20 |
|
|
SFF70-1 |
70X20 |
2.1 |
10 |
|
|

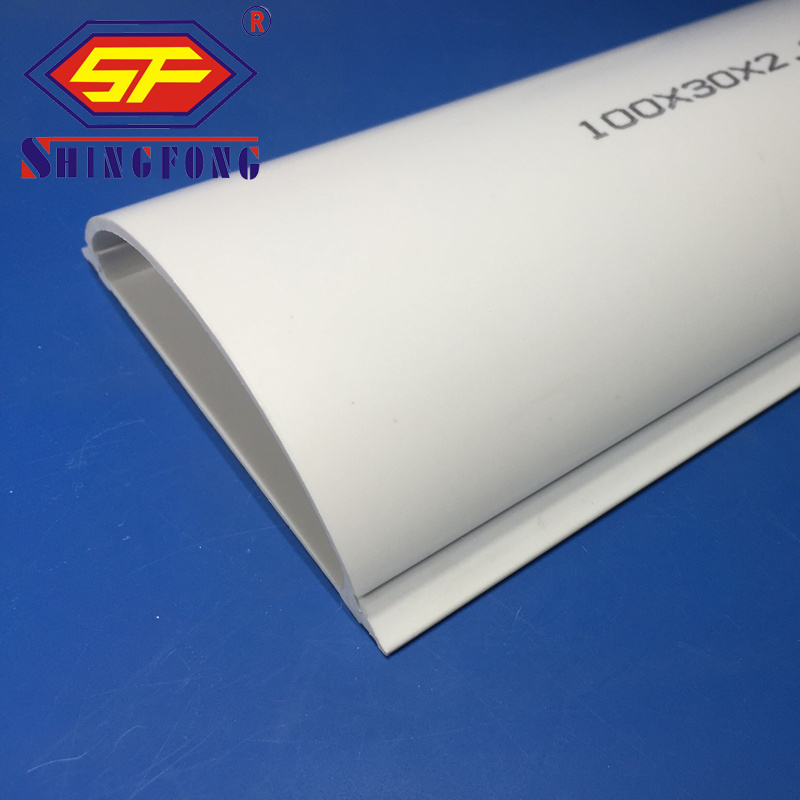

SFF100-1 |
100X30 |
2.3 |
5 |
|
M.O.Q |
8000PCS |
|
Package |
Up to your requirement |
|
Port of Loading |
Shunde, China |
|
Delivery |
25 days after receipt of 30% deposit |
|
Payment |
By T/T or L/C |
|
Certificates |
CE, ISO9001 |
|
Life Span |
30 years |
|
Main Market |
Europe, Mid east, South America, Africa, etc |
|
OEM, ODM Capacity |
It is acceptable to manufacture your brand products or set your brand on our own products instead our brand |
|
Sample |
Free |
Test results
|
Item: PVC trunking |
||
|
Impact property (60°Cx240h, -5°Cx2h) |
No damage |
|
|
Impressive property |
Load 1min |
D<25% |
|
Load-off 1min |
D<10% |
|
|
Fire Test |
Oxygen index |
>32% |
|
Vertical Combustion |
FV-0 |
|
|
Horizontal Combustion |
FH-1 |
|
|
Heat Resistance |
D<2mm |
|
|
Power frequency voltage (2500KV kv/min) |
No damage |
|
|
Insulation resistance |
>500MΩ |
|
pvc trunking
PVC Trunking
PVC Trunking Accessories
Self adhesive PVC Trunking
Packaging and delivery
5.Packaging: pieces in one bundle, each bundle in one plastic printing bag or up to you.The design of plastic bag will be transparent or as customer request.
Shipping: We will loading the goods in 7-10 days after we receive the deposit from customer.
6. Advantage: pvc trunking
1).Customization: Any color, size, thickness depending customers’ request, also can open new model for customers.
2).QC:Our QC members who are strict, experienced and technical..
3).Delivery time:5-10 days finish one high cube
4).Packaging Details:pvc cable trunking 25pcs in one bundle, each bundle in one plastic printing bag or meet your request.
5)Payment Term:T/T,30% as deposit,70% at the sight of BL copy
7.Certificates
Factory & Warehouse Overview
Our factory of PVC Trunking locates in Sihui city, it only takes one hour from guangzhou to our city by car. We manufacture a wide range size of PVC Trunking from 10x10mm to 200x100mm. With experience of more than 18 years, we sure to supply you good quality of PVC Trunking with competitive price.
