Quick Details
-
Brand Name:
-
OBT
-
Model Number:
-
X001
-
HRC:
-
45 55 63
-
Flute:
-
1 2 3 4 6
-
MOQ:
-
10 PCS
-
free sample:
-
yes
-
Machine:
-
Germany Machine
-
Factory:
-
yes
-
cheap:
-
yes
-
quality:
-
very high
-
Packing:
-
1ps/ Plastic Box
-
Shank Diameter:
-
3-40mm
Quick Details
-
Material:
-
Carbide, Tungsten Cobalt Alloy
-
Coating:
-
AlTiN, TiAIN, TiCN, Tin, NANO BLUE
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
OBT
-
Model Number:
-
X001
-
HRC:
-
45 55 63
-
Flute:
-
1 2 3 4 6
-
MOQ:
-
10 PCS
-
free sample:
-
yes
-
Machine:
-
Germany Machine
-
Factory:
-
yes
-
cheap:
-
yes
-
quality:
-
very high
-
Packing:
-
1ps/ Plastic Box
-
Shank Diameter:
-
3-40mm
Product description
|
Coating Introduction
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
ENDMILL GRADE
|
Coating Name
|
Color
|
Hv
|
μm
|
Friction
|
The Max ℃
|
||||||
|
HRC45 coating
|
AlTiN
|
black
|
3300
|
1-4
|
0.7
|
850℃
|
||||||
|
HRC55 coating
|
TiSiAlN
|
bronzed
|
3400
|
1-4
|
0.7
|
900℃
|
||||||
|
HRC60 coating
|
AlCrSiN
|
black
|
4000
|
1-7
|
0.35
|
1100℃
|
||||||
|
HRC65 coating
|
nACo 3 Blue
|
blue
|
4500
|
1-7
|
0.45
|
1200℃
|
||||||
|
Stainless Steel coating
|
nACo 3 Blue
|
blue
|
4500
|
1-7
|
0.55
|
1200℃
|
||||||
|
Carbide Material Introduction
|
|
|
|
|
|
|
||||||
|
ENDMILL GRADE
|
Material Grade
|
Grain
|
Introduction
|
|
|
Application
|
||||||
|
HRC45 carbide material
|
YL10.2
|
0.6μm
|
YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.
|
|
|
Suitable for General Steel
|
||||||
|
HRC55 carbide material
|
K30
|
0.5μm
|
K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.
|
|
|
General Steel, Stainless Steel, cast iron
|
||||||
|
HRC60 carbide material
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
|
|
High Hard Material, steel, cast iron, etc
|
||||||
|
HRC65 carbide material
|
GU25UF
|
0.4μm
|
GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard cutting.
|
|
|
Titanium Alloy, High-temperature Alloy, Harden material, etc
|
||||||
|
Stainless Steel material
|
WF25
|
0.4μm
|
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
|
|
|
stainless steel |
||||||

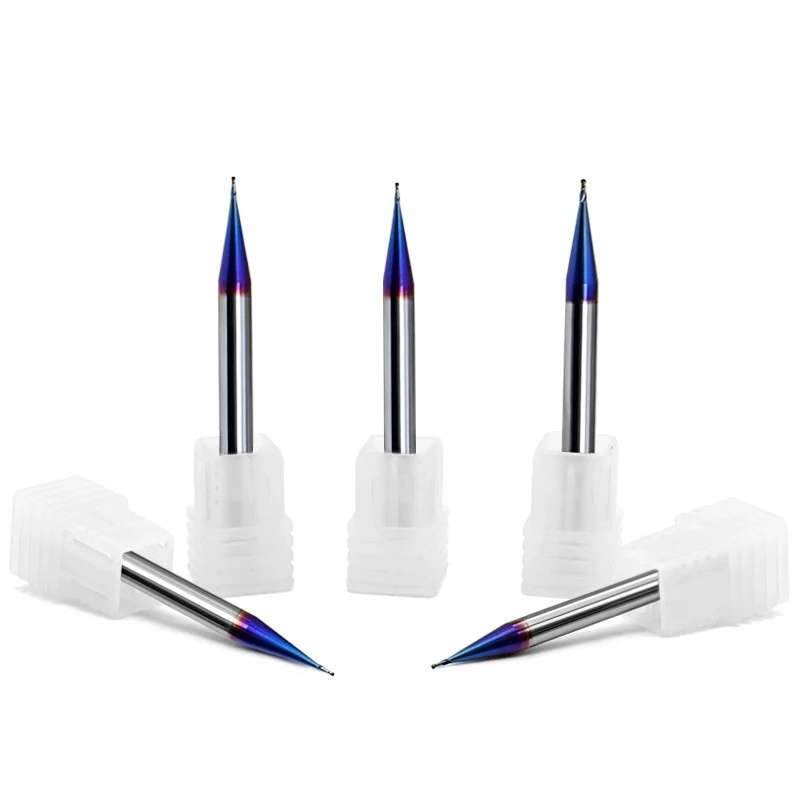

Product show
HRC45
HRC55
HRC65
Major Products
Solid carbide milling cutters, drills , reamers, carbide blade cutter, spiral end mill, welding tools, indexable cutting tools,
machines centers cutting tools and other type CNC machining fields. And are able to do the desigh and manufacturer of non-standard tools
machines centers cutting tools and other type CNC machining fields. And are able to do the desigh and manufacturer of non-standard tools
