- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
1000 mm
-
Max. Table Load(kg):
-
30
-
Travel (W-axis) (mm):
-
500 mm
-
Positioning Accuracy (X axis) mm:
-
1000
-
Positioning Accuracy (Y axis) mm:
-
1500
-
Positioning Accuracy (Z axis) mm:
-
1000
-
Range of Spindle Speed(r.p.m):
-
2800 r.p.m
-
Spindle Motor Power(kW):
-
3
-
Production Capacity:
-
2
-
Place of Origin:
-
China
-
Brand Name:
-
carlson
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1520*210*210mm
-
Weight (T):
-
0.13 T
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
1500 mm
-
Table Travel (Y) (mm):
-
1500 mm
-
Table Travel (Z) (mm):
-
1000 mm
-
Max. Table Load(kg):
-
30
-
Travel (W-axis) (mm):
-
500 mm
-
Positioning Accuracy (X axis) mm:
-
1000
-
Positioning Accuracy (Y axis) mm:
-
1500
-
Positioning Accuracy (Z axis) mm:
-
1000
-
Range of Spindle Speed(r.p.m):
-
2800 r.p.m
-
Spindle Motor Power(kW):
-
3
-
Production Capacity:
-
2
-
Place of Origin:
-
China
-
Brand Name:
-
carlson
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1520*210*210mm
-
Weight (T):
-
0.13 T
Product Description

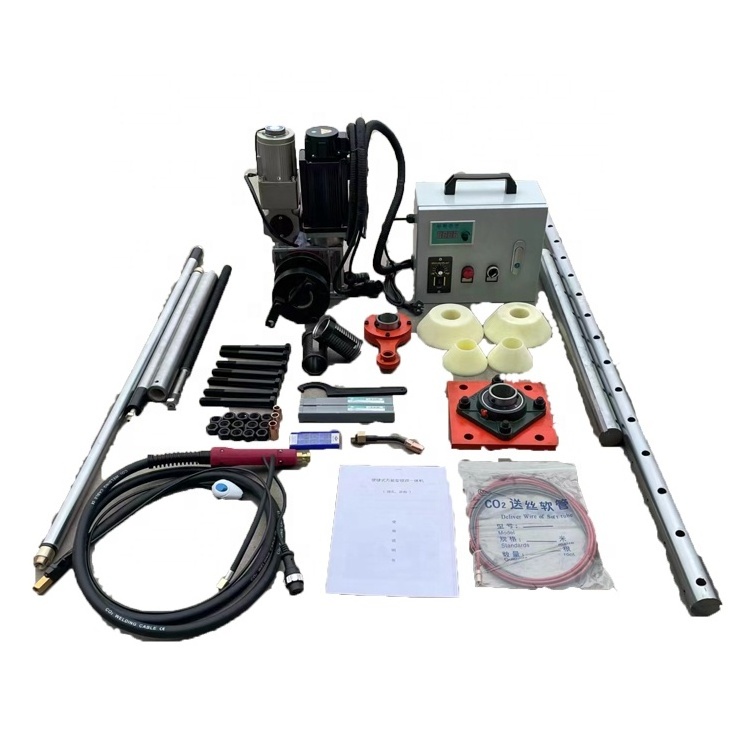

Portable Boring Machine is a Kind of Portable Processing Equipment Mainly Developed for On-site Maintenance of Construction Machinery. It is Mainly used for the Processing of Small Pipe Inner Holes and Concentric Spacing Holes. It is Widely used in the On-site Maintenance of construction Machinery Such as Excavators, Cranes, Loaders, Reducing the Cost of Equipment Maintenance and Improving the Efficiency.
Specification
|
Technical parameter
|
|
|
|
Model
|
45
|
|
|
Motor power of main axis
|
2.3KW
|
|
|
Type of motor
|
Sever motor
|
|
|
Feeding blade motor
|
1.5KW
|
|
|
Voltage
|
220v/50hz
|
|
|
Output rotate speed of main axis
|
0-250rmp
|
|
|
Speed control mode
|
Stepless speed regulation
|
|
|
Boring rod diameter
|
45MM
|
|
|
Processing range
|
60-200mm
|
|
|
Feeder blade stroke
|
450mm
|
|
|
Max depth of feeder blade at single side
|
3MM
|
|
|
Processing circular degree
|
0.02mm
|
|
|
Installation mode
|
Welding fixed
|
|
|
Welding hole diameter
|
50-140mm
|
|
|
Welding thickness at single side
|
2-5mm
|
|
|
Diameter of welding wire
|
1.0mm
|
|
|
Weight
|
85KG
|
|
