Quick Details
-
Year:
-
2021
-
Weight (KG):
-
5 kg
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2021
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
qingdao dongnuo rubber
-
Dimension(L*W*H):
-
3950*1110*1590
-
Year:
-
2021
-
Weight (KG):
-
5 kg
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2021

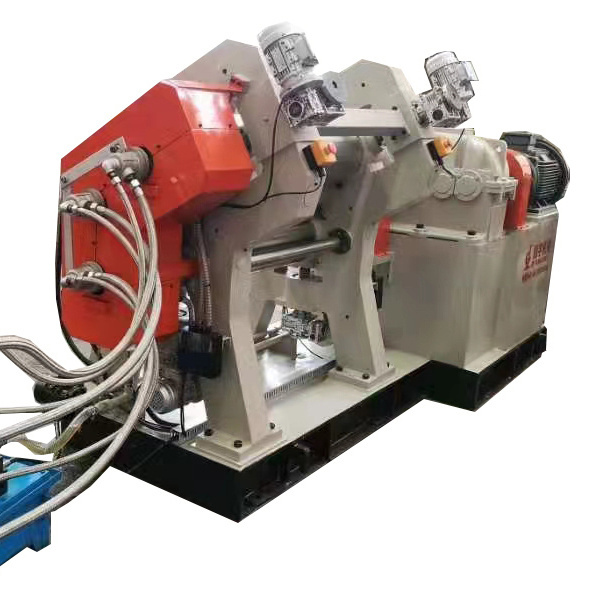

rubber calendering machine
Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet.
Features:
1. Rolls: chilled alloy cast iron rolls with surface hardness 68~72hs. the rolls are mirror finished & polished, duly grinding
and are hollowed for cooling or heating.
2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate
screws attached to the brass housing body.
3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete
up to supply pipe terminal.
4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5. Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust
sealed housing.
6. Stand frame & apron: heavy duty steel casting.
7. Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately
machined on which whole machine with gearbox and motor are fitted.
9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload
protection relay, 3 phase indicator and emergency stop switch.
and are hollowed for cooling or heating.
2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate
screws attached to the brass housing body.
3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete
up to supply pipe terminal.
4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5. Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust
sealed housing.
6. Stand frame & apron: heavy duty steel casting.
7. Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately
machined on which whole machine with gearbox and motor are fitted.
9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload
protection relay, 3 phase indicator and emergency stop switch.
Product Description
Specification
Rubber Calendering Machine/rubber sheet calendering mill machine
XY-252～810 Rubber Calender Series
Uses: used for calendering of rubber and plastics, rubbing and pasting of fabrics, making and laminating rubber and plastics, etc.
Specifications: 2 rolls-4 rolls φ250-φ810 I type, r type, F type, S type
|
model
project |
XY-2φ252*720
|
XY-2φ252*721
|
XY-2φ450*1500
|
XY-2φ550*1830
|
XY-2φ610*1730
|
XY-2φ710*2130
|
XY-2φ810*2430
|
|
Front roller linear speed
|
1.2～12
|
3～20.2
|
2.5～26
|
3～30
|
5.4～54
|
8～50
|
4～40
|
|
Roller speed ratio
|
1；1
|
1；1
|
1；1
|
1；1
|
1；1
|
1；1
|
1；1
|
|
Product width
|
580
|
920
|
1250
|
1600
|
1500
|
1850
|
2150
|
|
Minimum product width
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
|
Motor Power
|
15
|
37
|
45
|
75
|
90
|
110
|
160
|
|
Dimensions
|
3950*1110*1590
|
5400*1542*1681
|
7013*1595*2446
|
7200*1760*2760
|
5987*1860*2988
|
8150*3760*3630
|
8690*3139*4270
|
|
weight（kg)
|
～5
|
～11.5
|
～14
|
～24
|
～30
|
～49
|
～62
|
