5hp single phase hollow shaft motor

FOB Reference Price: Get Latest Price

≥2 Pieces

US $88

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: HS112M2-4

Frequency:: 50/60Hz

Product Name:: HS series Motor

Ambient temperature:: -15 ℃-40℃

Protection:: IP44/IP54/IP55

Insulation class:: B/F/H

Duty:: S1 (continuous)

Above sea level:: not exceed 1000m

Cooling method:: ICO141

Speed:: 1410rpm

Housing:: Aluminium

Quick Details

AC Voltage:: 230/400V

Place of Origin:: Fujian, China

Brand Name:: ZOZHI

Model Number:: HS112M2-4

Frequency:: 50/60Hz

Product Name:: HS series Motor

Ambient temperature:: -15 ℃-40℃

Protection:: IP44/IP54/IP55

Insulation class:: B/F/H

Duty:: S1 (continuous)

Above sea level:: not exceed 1000m

Cooling method:: ICO141

Speed:: 1410rpm

Housing:: Aluminium

Product Description

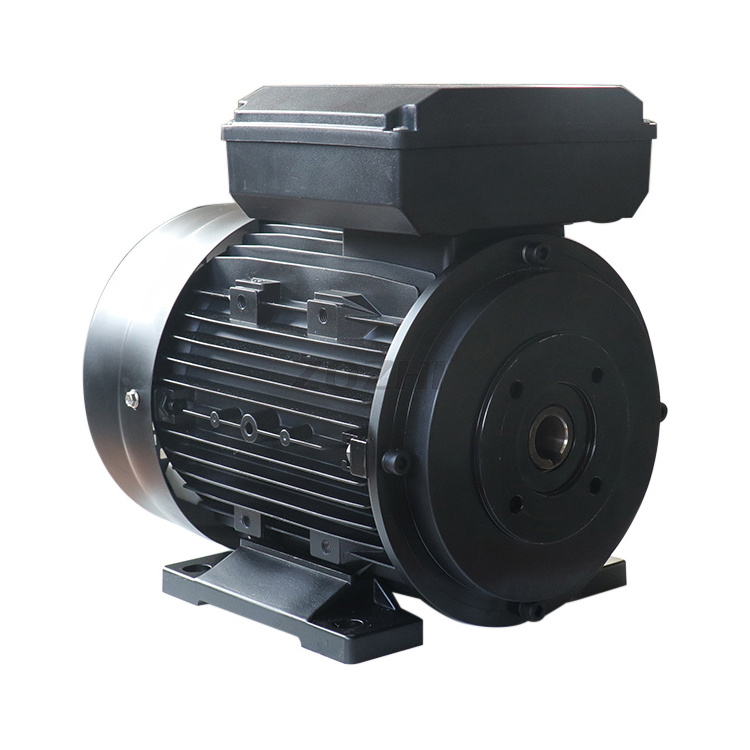

5hp single phase hollow shaft motor

The new ZOZHI electric motor with the internal joint is the ideal way to couple a high-pressure pump to the motor. It has reduced overall dimensions of hollow shaft motor while keeping all the technical and maintenance advantages of the standard motor with bell housing and flexible joints. It has the shield and flange on the front side: the first, equipped with bearing, protects the inside motor while the second supports the pump and contains the flexible joint. A new ZOZHI design, as always keeping our highest build quality.

Advantages: 1. Excellent heat dissipation performance 2. Running efficiently 3. Low noise hollow shaft motor

TECHNOLOGY DATA

FRAME	POWER KW HP			RPM	COSφ P.F.	EFF.%	CAPACITOR UF	VOL	AMPERE A
711-4	0.25	0.35	1360	0.91	57	10	230	2.1
712-4	0.37	0.5	1380	0.94	65	16	230	2.6
90L1-4	1.5	2	1400	0.98	70	45	230	9.5
100L1-4	1.85	2.5	1390	0.97	68	55	230	12.2
100L2-4	2.2	3	1350	0.99	74	70	230	13.1
100L3-4	2.6	3.5	1350	0.96	74	80	230	17.5
112M1-4	3	4	1400	0.98	74	80	230	18.1
112M2-4	3.7	5	1410	0.96	76	100	230	22
