Quick Details
-
Input:
-
ird dvb-s2
-
Output:
-
IP Output RF OUT
-
Application:
-
IPTV OTT System Total Solution
-
Product name:
-
IRD receiver
-
Keywords:
-
dvb-s2 multiplexer ci-ird,dvb-s2 multiplexer,dvb-s2 multicast mpts
-
Color:
-
Black
-
Support:
-
FTA and encrypted channels
-
Weight:
-
6.5KG
-
Modules:
-
Pluggable and changeable demodulator
-
Updates:
-
via web
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WOLCK
-
Model Number:
-
WK-3244S
-
Input:
-
ird dvb-s2
-
Output:
-
IP Output RF OUT
-
Application:
-
IPTV OTT System Total Solution
-
Product name:
-
IRD receiver
-
Keywords:
-
dvb-s2 multiplexer ci-ird,dvb-s2 multiplexer,dvb-s2 multicast mpts
-
Color:
-
Black
-
Support:
-
FTA and encrypted channels
-
Weight:
-
6.5KG
-
Modules:
-
Pluggable and changeable demodulator
-
Updates:
-
via web

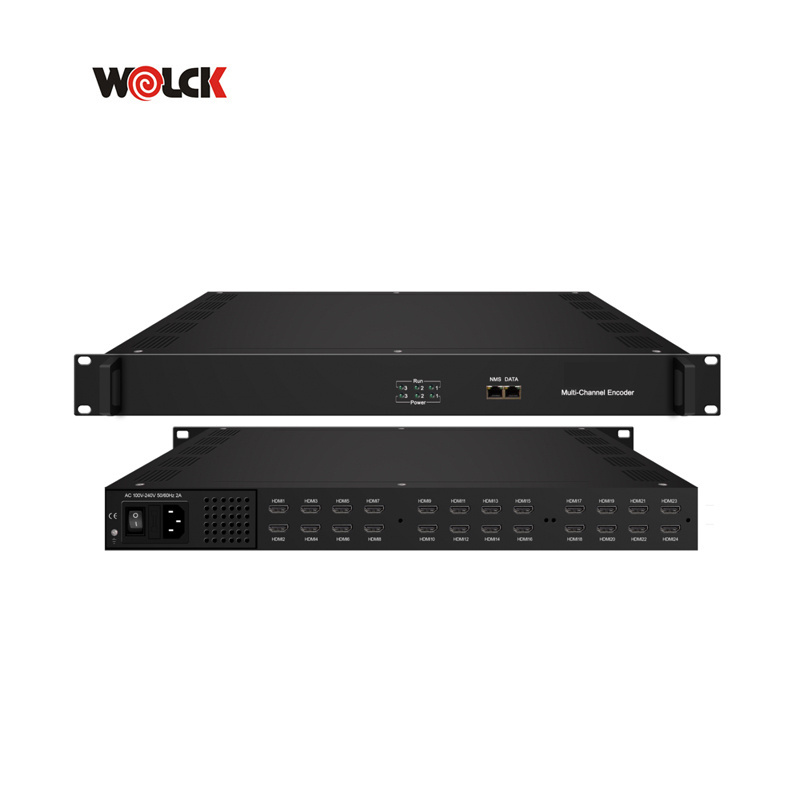

WK-3244S Multi-channel Encoder
WK-3244S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 16/24 HDMI inputs with very 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
* 16 or 24 HDMI inputs with SPTS and MPTS output (2 or 3 Encoder Modules share the same one NMS port and DATA port)
* MPEG4 AVC/H.264 video encoding format
* MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
* IP output over UDP and RTP/RTSP protocol
* Support QR code, LOGO, caption insertion
* Support “Null PKT Filter” function
* Control via web management, and easy updates via web
* MPEG4 AVC/H.264 video encoding format
* MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
* IP output over UDP and RTP/RTSP protocol
* Support QR code, LOGO, caption insertion
* Support “Null PKT Filter” function
* Control via web management, and easy updates via web
|
Input
|
16 HDMI inputs (WK-3236S); 24 HDMI inputs (WK-3244S)
|
|
|
||
|
Video
|
Resolution
|
input
|
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i |
||
|
|
|
Output
|
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P |
||
|
|
Encoding
|
|
MPEG-4 AVC/H.264
|
||
|
|
Bit-rate
|
|
1~20Mbps each channel
|
||
|
|
Rate Control
|
|
CBR/VBR
|
||
|
|
GOP Structure
|
|
IP…P (P Frame adjustment, without B Frame )
|
||
|
Audio
|
Encoding
|
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
|
|
||
|
|
Sampling rate
|
48KHz
|
|
||
|
|
Resolution
|
24-bit
|
|
||
|
|
Audio Gain
|
0-255 Adjustable
|
|
||
|
|
MPEG-1 Layer 2 Bit-rate
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
|
||
|
|
LC-AAC Bit-rate
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
|
||
|
|
HE-AAC Bit-rate
|
48/56/64/80/96/112/128 kbps
|
|
||
|
Miscellaneous
|
Dimension(W×L×H)
|
440mm×324mm×44mm
|
|
||
|
|
Environment
|
0~45℃(work)；-20~80℃（Storage）
|
|
||
|
|
Power requirements
|
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
|
|
||
|
Stream output
|
IP output through DATA (GE) over UDP and RTP/RTSP protocol
(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module) |
|
|
||
|
System function
|
Network management (WEB)
|
|
|
||
|
|
English language
|
|
|
||
|
|
Ethernet software upgrade
|
|
|
||
Shenzhen Wolck Network Product Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
