Hot Sale Commercial Used Complete 100% Light Deprivation Plastic Film Greenhouses Blackout Greenhouse For American Market

Hot Sale Commercial Used Complete 100% Light Deprivation Plastic Film Greenhouses Blackout Greenhouse For American Market

FOB Reference Price: Get Latest Price

≥500 Square meters

US $21.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Unigreen

Product Name:: Greenhouse

Application:: Greenhouse Seedling Growing

Usage:: Medicinal Plants Planting

Length:: Customized Size

Width:: 2ft/3ft/4ft/5ft/1.7m/1.8m/Customized

Span Width:: 4m/8m/10m/12m/Customized Size

Optional system:: Seedling Bench, NFT System

Advantage:: Economical/Durable

Quick Details

Size:: Large

Type:: Single-Span Agricultural Greenhouses

Model Number:: UG-PEP

Place of Origin:: Jiangsu, China

Brand Name:: Unigreen

Product Name:: Greenhouse

Application:: Greenhouse Seedling Growing

Usage:: Medicinal Plants Planting

Length:: Customized Size

Width:: 2ft/3ft/4ft/5ft/1.7m/1.8m/Customized

Span Width:: 4m/8m/10m/12m/Customized Size

Optional system:: Seedling Bench, NFT System

Advantage:: Economical/Durable

Specification

Hot Sale Commercial Used Complete 100% Light Deprivation Plastic Film Greenhouses Blackout Greenhouse For American Market plastic greenhouses for American market/blackout greenhouse/Light deprivation Greenhouse
Product Name	100% Light Deprivation Greenhouse
Size	Large/Small/Customized
Type	Single-Span Agricultural Greenhouses Multi-Span Agricultural Greenhouses 100% Blackout Light Deprivation Greenhouse
Cover Material	PEP Film/PC Sheet/Glass
Frame Material	Hot-dip Galvanized Steel Pipe
Application	Vegetable/Fruit/Medical Plant/Lettuce/Tomato/Farming Growing
Length	Customized according to customer requirements
Width	Customized according to customer requirements
Span Width	Customized according to customer requirements
Optional Systems	Ventilation System	Shading System
	Cooling System	Heating System
	Irrigation & Fertilizing System	Benches System
	Hydroponics System	Lighting System
	Automatic Control System	Other Customized Equipment
We will make design proposal as customers specific requirements.

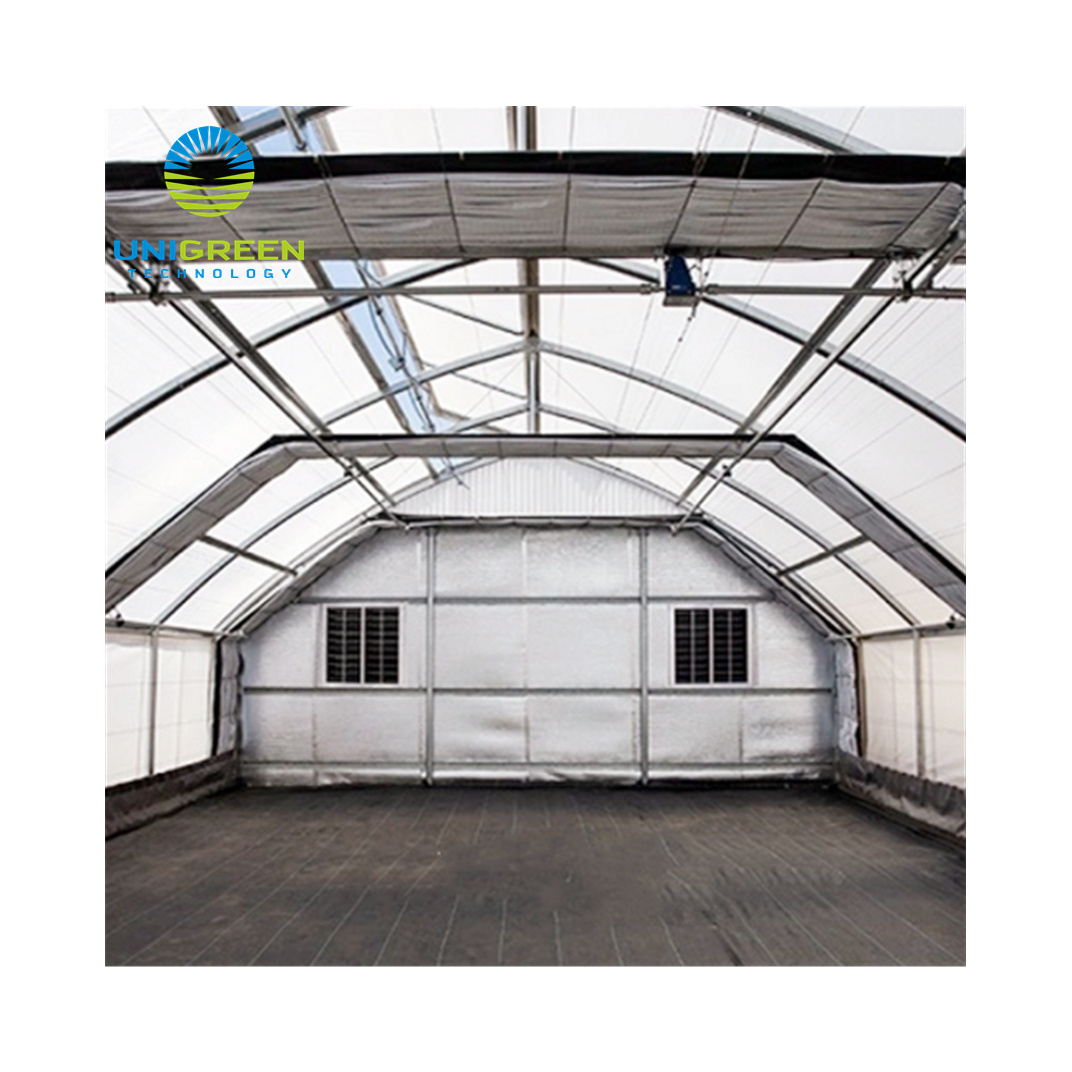

100% Light Deprivation Greenhouse

- Light deprivation greenhouse is suitable for sensitive plants requiring photoperiod control, such as Medical plants, or seeding,vegetables, flowers, etc.

- 100% light deprivation ,blackout greenhouse is very popular in USA, Canada,Australia,etc. Professionally grown medical material and commercial grade cultivation and production require precise environmental control.

- The light deprivation greenhouse composed by hot galvanized pipe with blackout for the covering material. The frame structure is simple, cheap cost and easy to install. According to the climatic condition, it usually equiped with sidewall manual roll up units to achieve good ventilation and cooling effective

Products Description

Cover Material

- PEP Film -

（ Poly-ethylene Plastic ）

Stable chemical property

Heat-resisting/Anti-freezing

Water--proof /Moisture--proof.

- Glass -

Beautiful and durable

Sound-insulating and heat-insulating Dust-proof and fog-proof

- PC Sheet -

( Poly-carbonate )

Light/Anti-collusive/Heat-resisting

Anti-freezing/Dust-proof

Fog--proof/Anti-ultraviolet-rays

- Shading rate 100%. This kind of blackout curtain is suitable for sensitive plants requiring photoperiod control.

- The special structure of its double layer material can achieve less than 0.4% of the light transmittance.

- The light is reflected by the aluminum foil on the surface of the shading curtain. During the light-dark period, unwanted light accumulation can be prevented.

- Although made of double-layer material, the closed curtain can still be collapsed into a small size, to ensure that the crop in its open to get maximum light. Has a good water permeability, the bottom of the curtain will not form condensation droplets. UV guarantee 5 years.

♢ Blackout Greenhouse ♢

Feature: 1) Stronger design for medical plants and seedling growing. 2) Automatical light deprivation system,100% stop the light go in to the greenhouse. 3) Excellent hot galvanized steel structures and accessories,anti-corrosion,10 years using life. 4) Ventilation and insect nets can give your planting under comfortable situation, Increasing yield. 5)Reduce the amount of supplemental light reflecting out of the greenhouse at night. 6)Light deprivation systems are customized for your greenhouse structure. 7) Best after sales service and 11 years experience in greenhouse.

Data reference:

Single-Span Width: 6m / 8m /10m

Single-Bay Width: 5-10m

Height of the Gutter: 4.5m～ 7.5m

Height of Greenhouse: 3.0m～ 6.0m

NOTE:

The height of the gutter can be defined

by the requirements of clients.

Basic Structure

※ Hot drip galvanized steel structures

- Excellent and Durable -

※ Hot drip galvanized steel accessories

- Service life 10-15 years -

- Anti-rust -

- Sturdy and durable -

- Corrosion resistance -

Primary Load-Carrying Materials and Connecting Materials

a)The primary load-carrying materials include upright, gutter and trusses. b)There are many kinds of suitable connecting materials, such as roof connectors,roof-gutter connectors, gutter supporters.

Sunshade system

The Shading system principle is to filter the excess light through shade net to achieve indoor cooling effect,

preventing the plants from being burned in the greenhouse. And it can regulate the heat or reduce the cost for the operations. The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity. Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams.

Outside shading net is made by black and round wire materials and fastened by black polyester strings. Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse.

Inside shading net is made by white aluminum--alloy materials, fastened by white polyester strings.

Inner Sunshade System

Material: Aluminum foil Sunshade Net Introduction:

Installed in the greenhouse, supported by the uprights and beams.

Advantage:

This system is Installation inner sunshade net in the greenhouse. Button control switch, reduce the internal temperature by cutting off excess solar radiation. In summer, it can reduce the inner temperature, and in winter or in night, it can prevent the heat running off.

Outer Sunshade System

Material: Black round wire Net

Introduction:

Installed in the greenhouse, supported by the uprights and beams.

Advantage: The shading system is installed on the top of the greenhouse with a sunshade net that can be driven by electricity. The principle is to filter the excess light through shade net to achieve indoor cooling effect. The external shading drive system adopts type A gear transmission, and the motor adopts a high-quality three-phase deceleration motor. Shelter Roofing closed, when not hot.

Ventilation System

The ventilation systems is consist of Roof Ventilation Systems and Side Ventilation Systems according to the difference of the
installation position.

Include:

Gear motor and controlled by the rack, pinion and other transmission tubes to make the windows open or closed.Common for glass and PC sheet greenhouse.

Advantage:

One-touch control switch to ensure that the greenhouse has good circulation of air and avoid troubles caused by repeated manual
operations.

Roof

Ventilation System

The gear motor controls the rack

pinion structure,

by which a set of driving rods act.

The windows open and close, supported by them (supporting arms).

Cooling System

Side Cooling-Pad

Ventilation System

The gear motor controls

the rack-pinion structure.

The rack connects the windows,

thus the windows open or clasie.

Side Plastic-Film

Reeling Ventilation System

(Manual or Electric)

Can be used on the side.

Usually installed on the plastic firm multi-span greenhouse on tunnel greenhouse and

controlled by the film reeler.

- The cooling pads are installed on one side of the greenhouse, the exhaust fans, the other. (The air-circulating fans are installed in the greenhouse.) - The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse. - The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.

Advantage:

In hot weather, the pads and fans are used together,cool water circulation could reduce temperature and increase humidity inside the greenhouse at same time.

Fan

a) Frame Material:

Thick galvanized steel sheet

Advantage:

Strong anti-corrosion property

b) Blade: Driven by the belt through the motor. Passing the test of dynamic balance and static balance,ensuring the strong blasts of air through them and the low noise that is caused. c) Louver Material:

Aluminum alloy or galvanized steel

With the special switch structure,

functioning as the role of wind-proof, rain-proof and dust-proof effects.

Air-circulating Fan

a) The motor has the great performance of rain-proof,wind-proof and dust-proof.

It works in low noise and can be in service for long time.

b) The blade is punched by the light aluminum materials,large tilting angel, great blast capacity and low noise. c) The blast capacity,ensuring the circulation and uniformize the temperature, humidity and the concentration of CO ² .

d) You can choose the different frame, made by stainless steel steel or painted steel.

Cooling Pad

On the cooing pad,

there is flowing water,

through which the hot air outside can be cooled.

b) Advantage:

Strong, Ant-corrosive,

Durable,Water-absorbing greatly

c) Outline border:

Aluminum alloy or galvanized steel

Hot-dip galvanized steel and aluminized zinc frames

Thickness 10mm and 15mm for tropical area

Heating System

- Heating System of Greenhouse refers to a set of suitable heating facilities chosen to meet the heating demands.

- Consisting of heating source,heat--radiating facilities, heat-transmitting facilities.

- It includes gas boiler, heating fans and circulating water pipeline.

Irrigation System

Irrigation system of greenhouse include of Drip irrigation System and Spray Irrigation System

Working principle: The irrigation water is extracted from the source, pressurized, purified, filtered properly, then sent through the water-transmitting pipeline into the irrigation facility on the field. At last, the irrigation water is released by the irrigation emitter of the irrigation facility to the plants of the field in the greenhouse.

Control System

Control System of greenhouse able to measure a lot of agricultural factors such as direction and speed of wind,temperature and humidity of air or soil, air pressure, rainfal, solar radiant quantity and ultraviolet intensity, etc.

It can control the facilities of ventilation system, shading system, cooling system,illumination supplement, irrigation and fertilization, adjusting the inner environment of the greenhouse to the most suitable conditions.

Hydroponic System

Hydroponic System of greenhouse applies the hydroponics, which refers to the meens of cultivation that is equipped with the base materials, not natural soil, when plants are in seed-breeding period and that is fixed with nutrient solutions for irrigation after they are settled,) preventing the diseases due to the soil frequently used and the physiological barriers because of the salt accumulation of it and meeting the needs of plants with minerals, water, air and other conditions. The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.

Seedbed System

Seedbed system of greenhouse inciudes fixed seedbed and mobile seedbed.

The fixed seedbed is single-layer, angle steel as the support, stee-wire mesh set on the surface. The surface of the mesh applies the ant-corrosive treatment by the cladding layer. The support of mobile seedbed is made by galvanized steel tubes, outline of the seedbed aluminum--alloy material. Height of it can be slightly adjusted, and it is equipped with the ant-overturn device and location-limiting device. The seedbed system can promote the utilization rate effectively of the greenhouse. usually up to about 85%
