Quick Details
-
Model Number:
-
001
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
muchen
-
Product name:
-
Multi-span Glass Greenhouse
-
Application:
-
Vegetable Fruits Flowers Planting
-
Covering:
-
Glass Cover Greenhouse
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
-
Frame material:
-
Hot Dip Galvanized Steel Tube
-
Length:
-
10-100m
-
Width:
-
6m/8m/10m/12m/customized
-
Height:
-
3-10m
-
Warranty:
-
5-10years
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
Muchen Agriculture
-
Model Number:
-
001
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
muchen
-
Product name:
-
Multi-span Glass Greenhouse
-
Application:
-
Vegetable Fruits Flowers Planting
-
Covering:
-
Glass Cover Greenhouse
-
Optional system:
-
Cooling System.irrigation System.ventilation.etc
-
Frame material:
-
Hot Dip Galvanized Steel Tube
-
Length:
-
10-100m
-
Width:
-
6m/8m/10m/12m/customized
-
Height:
-
3-10m
-
Warranty:
-
5-10years

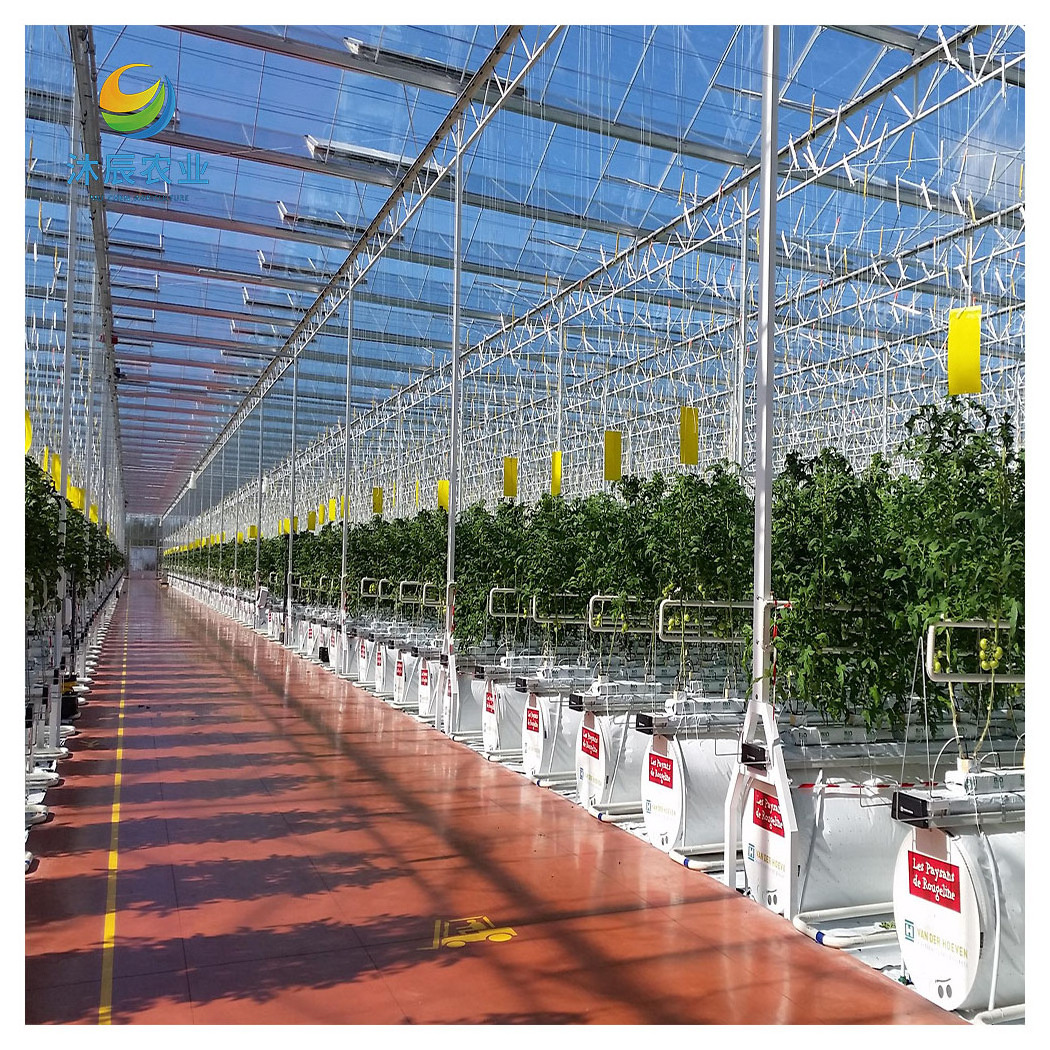

Product Description
heating systems glass multi-span greenhouse used for sale
Advantages of Glass greenhouse
1.glass transmitance of more than 80%;
2.Light transmittance stable, no water vapor entering,anti aging;
3.A
nti-condensation
;
4.Large area of greenhouse lighting,indoor light uniform;
5.The interior is spacious and bright,and he operating space is big,and the utilization rate of the
greenhouse is high;
6.Looks beautiful, and has a strong ornamental;
7.Greenhouse drainage capacity is very strong,and it can be a large area of multi-span.
Specification
|
Parameters and Configurations
|
|
|
||
|
Span length
|
8m, 9.6m, 12m
|
Adjusted to your request
|
||
|
Bay width
|
4m, 8m
|
Adjusted to your request
|
||
|
Gutter height
|
From 3.0m to 8.0m
|
Adjusted to your request
|
||
|
Steel structure
|
Venlo type hot-dip galvanized steel structure, good anti-corrosion ability, service life over 20years.
|
|
||
|
Cover material
|
4-5mm tempered glass on roof, 5+6+5mm double layer glass on sides. All glasses are installed with aluminum alloy frame, sealed by EPDM rubber strip.
|
|
||
|
Technical data
|
Wind load: 0.6KN/㎡
|
|
||
|
|
Snow load: 0.5KN/㎡
|
|
||
|
|
Dead load:15kg/㎡
|
|
||
|
|
Rainwater drain capacity: 140mm/h at maximum
|
|
||
|
|
Light transmission: 90%
|
|
||
|
|
Temperature range: -40 to 60℃
|
|
||
|
Other system
|
Ventilation system, thermal insulation system, seedbed system, irrigation system, lighting system, IOT system etc.
|
|
||
Greenhouse System
Greenhouse Structure
Top Ventilation System
Side Ventilation System
External Sunshade System
Internal Sunshade System
Hydroponic System
