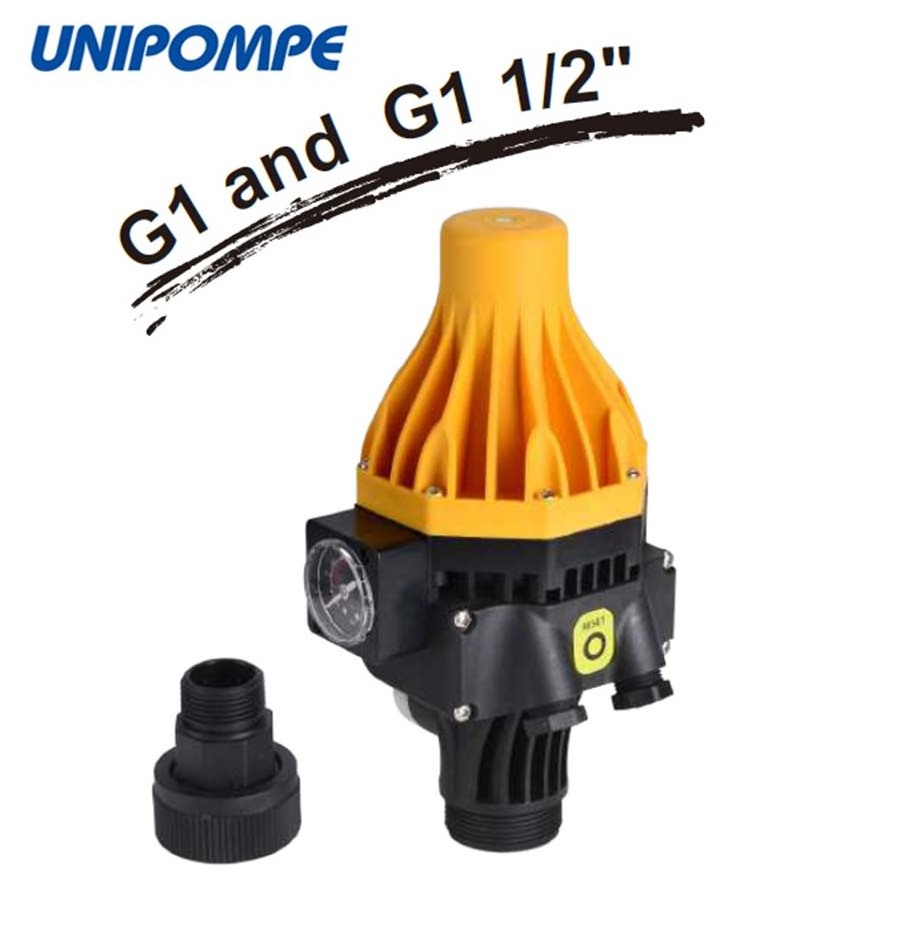

New design adjustable pressure switch water pump pressure controller

1. Automatic pump pressure controller for water pumps
2. CE and RoHs certificates
3. Start and stop water pump automatically
4. Electric switch used in water systems

5. Customized setting

1.Rate voltage: 220V-240V/110V-120V

2.Max. Rated Current: 10A

3.Frequency: 50HZ/60HZ

4.Max. power:1.1KW

5.Joint screw: G1 1/2'' convert into 1'' with adapter substitute

6.protection Garde: IP65

7.Starting Pressure : 1.2/1.5/2.2 bar

8.Max allowable pressure:10 bar(1Mpa)

9.Max ambient temperature:60°C

1. Electric switch used in water systems

2. Start and stop water pump automatically according to the pressure and water storage

It starts the electric pump automatically after a pressure decrease (taps opening) and stops it when the fluid  flow interrupts at the maximum pressure level of the electric pump (taps closed).

Stop the water pump in the case of water shortage.

1. It will indicate the pump has started when the green light Power on lights up after connecting the power.

2. When the yellow light Pump on lights up, it indicates the pump has been started. The pump continues to operate for a few minutes enabling the system to fill in the pipes and to reach the required pressure.

3. If this lapse is insufficient, the red light failure will light up. In this event, keep the Restart button pressed and wait, with a tap opened till the red light is off. Once released the button and closed the tap, the product will keep the pump at its maximum pressure

1. It has the features of stable performace, low maintenance and long life etc.

2. Completely replaced the complicated traditional pump control system composed of pressure gauge,pressure switch, T-valve, check valve and pressure tank.

3. Its starting flow is about 36-60L/h and is convenient for home application.

The product is designed especially for all control operation of automatic water pump. If the particular breakdowns occur, suction pipe etc, the product recognizes the breakdowns and the red light failure lights up. Meanwhile,a stop signal is sent to the pump to prevent damages caused by its working in the absence of water. Rectification of the failures that have caused the blockage, allows the system to be restarted by pressing the restart button. The controller can ensure a constant pressure for the water supplying system and thus reduce the water hammer effect inside pipeline during water delivering. The controller also posesses the features of reset after power failure.

Q1.What will you do for after sale?

A: We will follow up and await your feedback after we delivery the goods to you.

Q2.Why did you choose us?

A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps  and pump fittings.

Q3.How does your factory do regarding quality control?

A:Quality is priority, and we will do 100% quality inspection before shipment.

Q4.Can we use our own logo and design?

A: Yes, you can. We'll produce pump on your brand and according to your design.

Q5.What's the delivery time of your products?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your purchasing quantity and production season .
