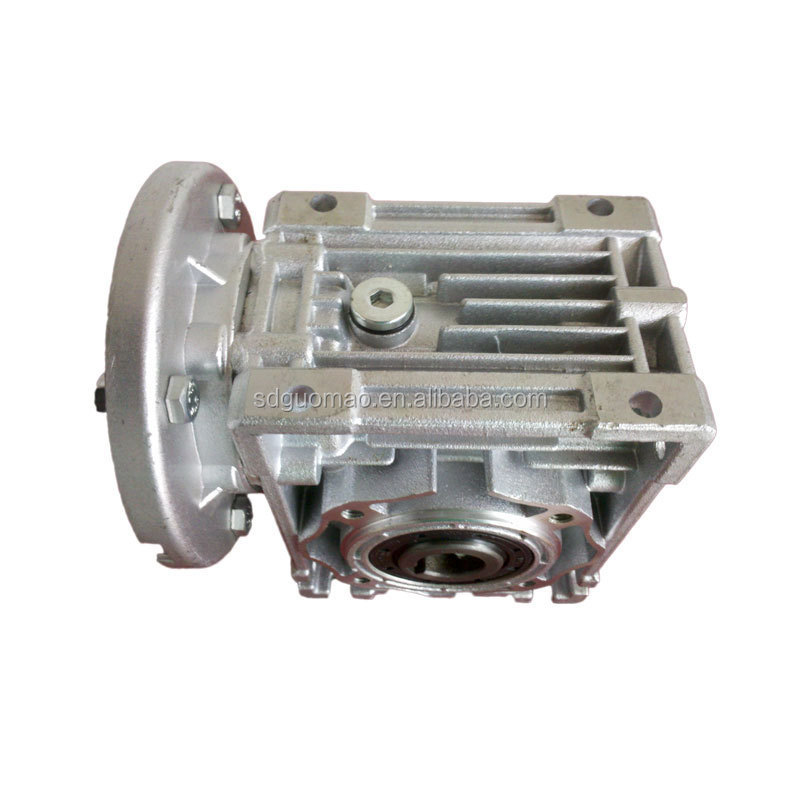

New atv reverse gearbox of RV Series

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

≥10 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Input Speed:: 1400 rpm

Output Speed:: 14-280rpm

Place of Origin:: Shandong, China

Brand Name:: GUOMAO

Model Number:: RV

Quality Control System:: ISO9001:2008

Certicifate:: CCC,CQM,Supplier Assessment, MA

Mounting Position:: Horizontal (foot mounted) or Vertical (flange mounted)

Color:: According to customer's order

Material:: Steel or cast iron

Heat treatmen:: Carburising,quenching,gear grinding

Gear accuracy:: Less than 6

Gear material:: Low carbon high alloy steel

Standard or Nonstandard:: Standard

Mounting type:: shaft or flange

Quick Details

Gearing Arrangement:: Worm

Output Torque:: 160-18000N.m

Rated Power:: 0.06-15KW

Input Speed:: 1400 rpm

Output Speed:: 14-280rpm

Place of Origin:: Shandong, China

Brand Name:: GUOMAO

Model Number:: RV

Quality Control System:: ISO9001:2008

Certicifate:: CCC,CQM,Supplier Assessment, MA

Mounting Position:: Horizontal (foot mounted) or Vertical (flange mounted)

Color:: According to customer's order

Material:: Steel or cast iron

Heat treatmen:: Carburising,quenching,gear grinding

Gear accuracy:: Less than 6

Gear material:: Low carbon high alloy steel

Standard or Nonstandard:: Standard

Mounting type:: shaft or flange

Certificate:

New atv reverse gearbox of RV Series :
The RV series gear box is widely used for fast, accurate positioning mechanism:
( 1) For precision machine tools, printing machinery, packaging machinery, food machinery, textile machinery, printing machinery,
industrial automation, industrial robots, medical tests, precision testing equipment and automated high-precision mechanical and electrical products industries;
(2) Suitable for factory automation rapid transfer mechanism, the robot arm grab agencies, intelligent warehouse and so on.
production Photos :

Parameters:

Model

Ratio	Nominal Power (KW)	Nominal Torque(N.m)
RV25	10/15/20/25/30/40/50/60	0.08-0.58	2-3022
RV30	7.5/10/15/20/25/30/40/50/60/80/100	0.05-0.41	2-3022
RV40	7.5/10/15/20/25/30/40/50/60/80/100	0.09-0.9	2-3022
RV50	7.5/10/15/20/25/30/40/50/60/80/100	0.16-1.6	2-3022
RV63	7.5/10/15/20/25/30/40/50/60/80/100	0.34-2.8	2-3022
RV75	7.5/10/15/20/25/30/40/50/60/80/100	0.48-4.1	2-3022
RV90	7.5/10/15/20/25/30/40/50/60/80/100	0.67-6.3	2-3022
RV110	7.5/10/15/20/25/30/40/50/60/80/100	1.1-12	2-3022
RV130	7.5/10/15/20/25/30/40/50/60/80/100	1.7-16.1	2-3022
RV150	7.5/10/15/20/25/30/40/50/60/80/100	0.30-419	2-3022

Product Description :
With the implementation of latest technology and quality tested components, we offer worm speed reducers.
The product range is offered in various specifications and dimensions to meet the needs of the clients. Our range
is tested on various parameters, before it gets delivered to the clients.

We have the expertise in offering a wide range of reducers which is also termed as RV series worm speed reducer.
Our precision engineered worm speed reducer are well trusted for their high heat-radiating efficiency and high carrying ability.
These reducers are available in high quality aluminum alloy quadrate case and are acknowledged for the attributes like safe to use,
reliability and durability.
The Features:

1. Efficient and safe operating.

2. Compact structure and small volume saves mounting space.

3. High load capacity and overload functions give stable transmission with reduced vibration and noise.

4. No gap structure of gearbox makes this reducer maintenance free and prevents lubricant from leaking.

5. Various linking structures for power input and torque output allows for different mounting methods.

6. Low noise and stably running, can adapt long term work condition in terrible environments.

7. Light weight, high mechanical strength.

8. Motor mounting, shaft mounting, and flange mounting.

9. Widely used, an ideal choice for modern industrial equipments to realize transmission and control at large speed reducing ratio.
RV Specification Dimensions:
Produce Processing:
1. Niles forming gear grinding machine imported from Germany
2. OKUMA horizontal machining center imported from Japan
3. Gear me asuring center and three coordinate measuring instrument
4. Gear inspection and test center
the nmrv gearbox has many advantages:
1. Mechanical structure is compact, small volume, light and heat efficiency, good performance, easy installation, heat fast,
flexible connection form, superior performance, easy maintenance, transmission speed, torque, withstand high overload ability, smooth operation.
2. Low noise, durable, strong practicability, safety and reliability. In accordance with the national standards GB10085-88 cylindrical
worm turbine based on the most advanced technology, absorbs the domestic and foreign design and manufacture.
3. Use the statics structure design of the die casting aluminum alloy with high quality.
4. Worm speed reducer has been widely used in various industries of machinery production technology and equipment, and is currently
slowing device modern industrial equipment, large torque ratio, low noise, high efficiency, high stability, mechanical transmission device of choice slowdown.
Main Materials:
1. Housing: die - cast aluminum alloy (frame size: 025 to 090); cast iron (frame size: 110 to 150)
2. Worm: 20CrMnTi, carbonize heat treatment make the hardness of gear ' s surface up to 56
62 HRC, retain carburization layer ' s thickness between 0.3 and 0.5mm after precise grinding
3. Worm wheel: wearable stannum bronze alloy
New atv reverse gearbox of RV Series 'Packing :
