Quick Details
-
Brand Name:
-
Infinity Machine
-
Model Number:
-
RS-6600A5
-
Usage:
-
insertion and extraction tester
-
Application:
-
Connector
-
Test items:
-
Lifetime Test
-
Capacity:
-
5kgf, 10kgf, 20kgf, 50kgf, 100kgf
-
Effective width:
-
200, 400mm (optional)
-
Test speed:
-
0-200mm/min or 400mm/min
-
Motor:
-
AC Servo Motor
-
Weight:
-
70kg
-
Dimensions:
-
360mm(W)*270mm(D)*950mm(H)
-
Power supply:
-
AC220V 10A or specified by user
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Infinity Machine
-
Model Number:
-
RS-6600A5
-
Usage:
-
insertion and extraction tester
-
Application:
-
Connector
-
Test items:
-
Lifetime Test
-
Capacity:
-
5kgf, 10kgf, 20kgf, 50kgf, 100kgf
-
Effective width:
-
200, 400mm (optional)
-
Test speed:
-
0-200mm/min or 400mm/min
-
Motor:
-
AC Servo Motor
-
Weight:
-
70kg
-
Dimensions:
-
360mm(W)*270mm(D)*950mm(H)
-
Power supply:
-
AC220V 10A or specified by user

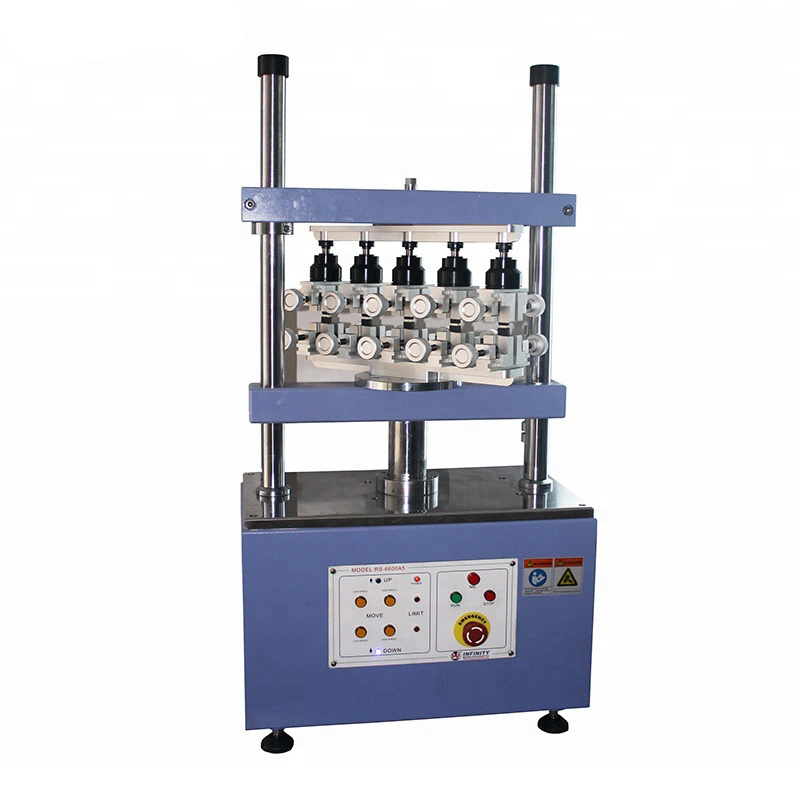

Full-auto Computer Control Connector Lifetime Insertion Extraction Force Testing Machine
Model: RS-6600A-5
Product Description
| Purpose: |
|
The machine is used in the insertion and extraction force tests of various kinds of connectors. Equipped with an automatic axopetal device and the special fixture for all kinds of connectors, it can ensure accurate insertion and extraction force results. The machine adopts the Windows program, which is easy to operate and can automatically store test data (such as load-stroke curve, load life die-away curve and test results) and all test conditions. The machine also adopts high-precision load cell measurement and servo motor drive, which ensures accurate insertion and extraction force results, making it an essential detecting instrument in the development and research and quality inspection of connector manufacturers and finished products manufacturers. |
Typical Application :
Connector whole line insertion and extraction test
Connector single port insertion and extraction test
Connector insertion and extraction duration test
Connector single pin and plastic retention test
Connector normal force test
Connector clip compression test
Connector dynamic impedance test
Various tensile and pressure test
Connector dynamic impedance test (optional)
Specification :
|
Model |
RS-6600A |
|
Capacity (Optional) |
5kgf,10kgf, 20kgf, 50kgf,100kgf |
|
Unit (Switchable) |
kgf, N, Lb, gf |
|
Load Accuracy |
±0.5% |
|
Load Least Display |
0.01kgf or 0.01gf |
|
Test Stroke |
0~150mm |
|
Stroke Least Display |
0.001mm |
|
Effective Width |
200,400mm (optional) |
|
Test speed |
0~200mm/min or 600mm/min |
|
Speed Accuracy |
±0.5% |
|
Motor |
Panasonic servo motor |
|
Dimension (WxDxH) |
360x270x950mm |
|
Weight |
About 70kg |
|
Power |
AC220V 5A or specified |
Testing software:
Fixture:
