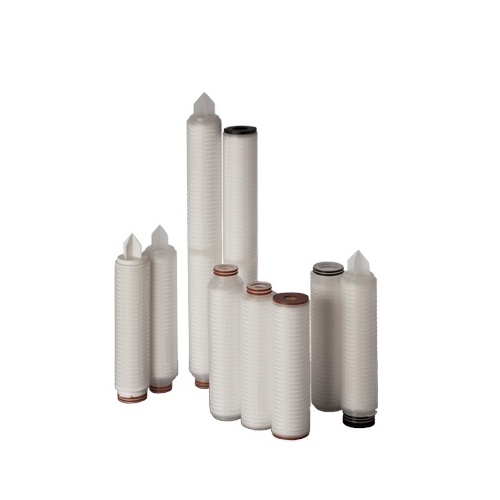

Membrane pleated Filter cartridge
|
|
|
|
|
||||
A. Constructed of all polypropylene high purity media,meets requirements.
B. Multiple layered micro-porous construction ensures consistent filtration performance.
C. No adhesive,thermal bonded manufacturing enable the smallest contaminant extraction and high durability.
D. Wide selection of micron rating to meet different filtration requirement.
E. High surface area
F. Wide selection of micron rating to meet different filtration requirement
G. Increased dirt holding capacity.Longer service life
A. Pre-filtration or RO system,DI water
B. Solvents,selected acids&lyes,chemical industry
C. Semiconductor,Eletronic industry ultrapure water system
D. FOOD and beverage,drinking water treatment
E. Oil industry
A. Media:Polypropylene
B. Support layer:Polypropylene
C. Core/Cage/End adaptor:Polypropylene
D. Sealing method:Thermal bonding
A. Max.Differential pressure:
B. Forward-75psi (5.1bar) at 25℃
C. Forward-25psi (1.7bar) at 80℃
D.Reverse-30psi (2.0bar) at 25℃
E. Filters change recommended at 1.5-2.0bar
F. Max.Operating temperature:80℃
G. Sterilization:5times,20Minutes cycles at 121℃
A. Filtration Area:0.5㎡ each 10″length
B. Outer Diameter:69mm
C. Nominal Length:5″,10″,20″,30″,40″etc
D. Micron Rating:0.1,0.2,0.45,0.65,1,3,5…µm
Packing Details : 25pcs/carton, 50pcs/carton
Delivery Details : 12 days after payment
|
Model PPL
|
Micron Rating
|
End Adaptor
|
Seal
|
Length
|
|
PPL - PP
Pleated Type |
0.10:0.1μm
0.20:0.2μm 0.45:4.5μm 100:1μm 300:3μm ...... H10:10μm |
CODE
O - DOE Double Open End 7 - 226/Fin 8 - 222/Fin 3 - 222/Flat Closed 2 - 226/Flat Closed
F - 215/Flat Closed
|
E - EPDM
N - Buna S - Silicon V - Viton T - Telfon Encapsulated Viton |
5:5"
10:10" 20:20" 30:30" 40:40" |
|
|
|
|
|
|
|
|
|
|
|
|
Our warehouse
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
