Quick Details
-
Product name:
-
Vehicle Loop Detector
-
Application:
-
Parking Lot
-
Certification:
-
ISO9001 CE
-
Warranty:
-
2 Years
-
Self-turning range:
-
20-2000uh
-
Relay output:
-
presence relay / fault relay
-
Working temperature:
-
-40 + 70
-
Frequency:
-
4 steps switch, 20-80KHz
-
Response time:
-
turn on 10-90 MS, turn off 10-90NS
-
Sensitivity:
-
16 ways selectable
Quick Details
-
Place of Origin:
-
Guangdong China
-
Brand Name:
-
NOBLE
-
Model Number:
-
NBLD-100 / NBLD-102
-
Product name:
-
Vehicle Loop Detector
-
Application:
-
Parking Lot
-
Certification:
-
ISO9001 CE
-
Warranty:
-
2 Years
-
Self-turning range:
-
20-2000uh
-
Relay output:
-
presence relay / fault relay
-
Working temperature:
-
-40 + 70
-
Frequency:
-
4 steps switch, 20-80KHz
-
Response time:
-
turn on 10-90 MS, turn off 10-90NS
-
Sensitivity:
-
16 ways selectable
Single channel loop detector,vehicle loop detector, wired loop detector sensor
Products Description
|
|
Model: NBLD-102 NBLD-100
|
|
|
|
1
|
Self-turning range
|
20-2000uh
|
|
|
2
|
Voltage
|
12-24VDC or 85-240VAC
|
|
|
3
|
Relay output
|
presence relay / fault relay
|
|
|
4
|
Working temperature
|
-40℃ - +70℃
|
|
|
5
|
Frequency
|
4 steps switch, 20-80KHz
|
|
|
6
|
Response time
|
turn on 10-90MS, turn off 10-90NS
|
|
|
7
|
Sensitivity
|
16ways selectable,
highest: 0.010% DL/L, Lowest: 2.56% DL/L
|
|
|
8
|
Housing color
|
green / white(optional)
|
|
|
9
|
Size
|
75*43*110mm
|
|
Symptoms Solution
If the detector is not working ------------------- -------- please press reset
If red led indicator is not fully lit-------------------------- Check for power supply
If green led indicator:
Blinks slowly ------ It maybe because the loop is short circuit or the no: of turns is not enough.
Blinks faster ------- It maybe because the loop is open or the no: of turns is too many.
If no: of turns is not enough-----Lower the frequency(if the frequency is still too high, you must add more turns).
If no: of turns is too many-------Higher the frequency (if the frequency is still too low, you must remove some turns).
Production details

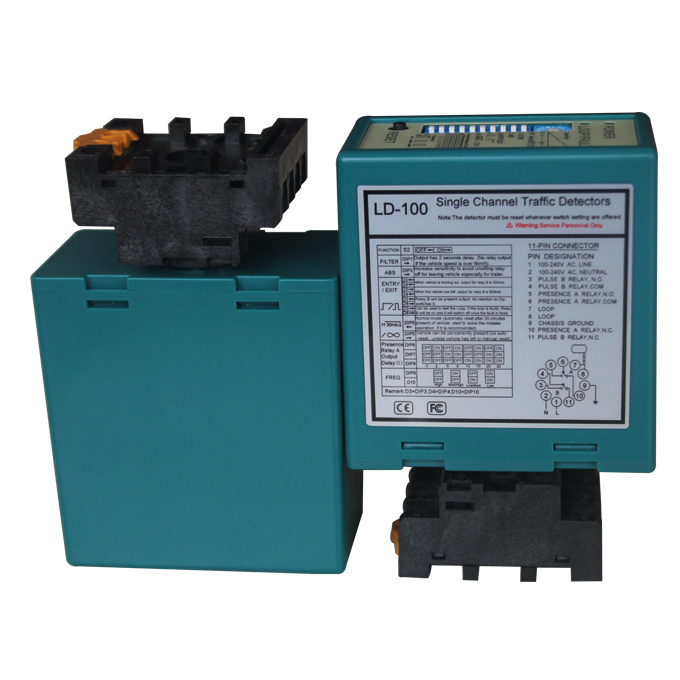

NBLD-102 NBLD-100 NBLD-200 NBLD-202
Single channel loop detector
please discuss it with us if you want to know more, we can make OEM.
Applications
Single loop detector apply to parking lot, weight station, dock light,warehouse, car wash and so on. projects: Saudi Arabia, Thailand, Philippines. South American, North American,Europe, Asia, etc.
Exhibition
NBLD-102 NBLD-100 Single channel vehicle loop detector, green color,
we can make OEM, please discuss with us
Client's Feedback
This is our customer's feedback about products. And this is one of part. Our customer very satisfied with our products
Quality control
Manufacture
Testing
Packing
Loading&Delivery
NOBLE has a mature product R&D, production, quality control and supply chain management system, to achieve the whole industrial
chain management.
At the same time, NOBLE has a professional QC team to ensure the high quality product.
Since(2008) the establishment of the company,we recognize the importance of providing good quality products and best pre- to after-sale, and we are always trying our best offer to improve our design and production capacity. Moreover, we have the led traffic lights EN12368,ITE, CE ISO9001 certification. Our products are exported to overseas markets around European countries and Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey,Israel, Spain, USA, Russia Ross, Singapore etc.
