Quick Details
-
Place of Origin:
-
Guangdong, China
-
Certificate:
-
ENEC25,CE,ETL,CQC,ROHS
-
Rated:
-
2A 250V AC/3A 125VAC
-
Ambient temperature:
-
T85/T55
-
number of cycles:
-
10000
-
Housing material:
-
PC
-
Conductor:
-
Brass
-
Function:
-
ON-OFF
-
color:
-
black
-
Product name:
-
94v-2 grade M200 wall fan pull cord switch with nylon rope
-
type of switch:
-
Cord-operated
Quick Details
-
Protection Level:
-
IP20
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Certificate:
-
ENEC25,CE,ETL,CQC,ROHS
-
Rated:
-
2A 250V AC/3A 125VAC
-
Ambient temperature:
-
T85/T55
-
number of cycles:
-
10000
-
Housing material:
-
PC
-
Conductor:
-
Brass
-
Function:
-
ON-OFF
-
color:
-
black
-
Product name:
-
94v-2 grade M200 wall fan pull cord switch with nylon rope
-
type of switch:
-
Cord-operated
Product Description
|
Datasheet
|
|
|
|
|
||||
|

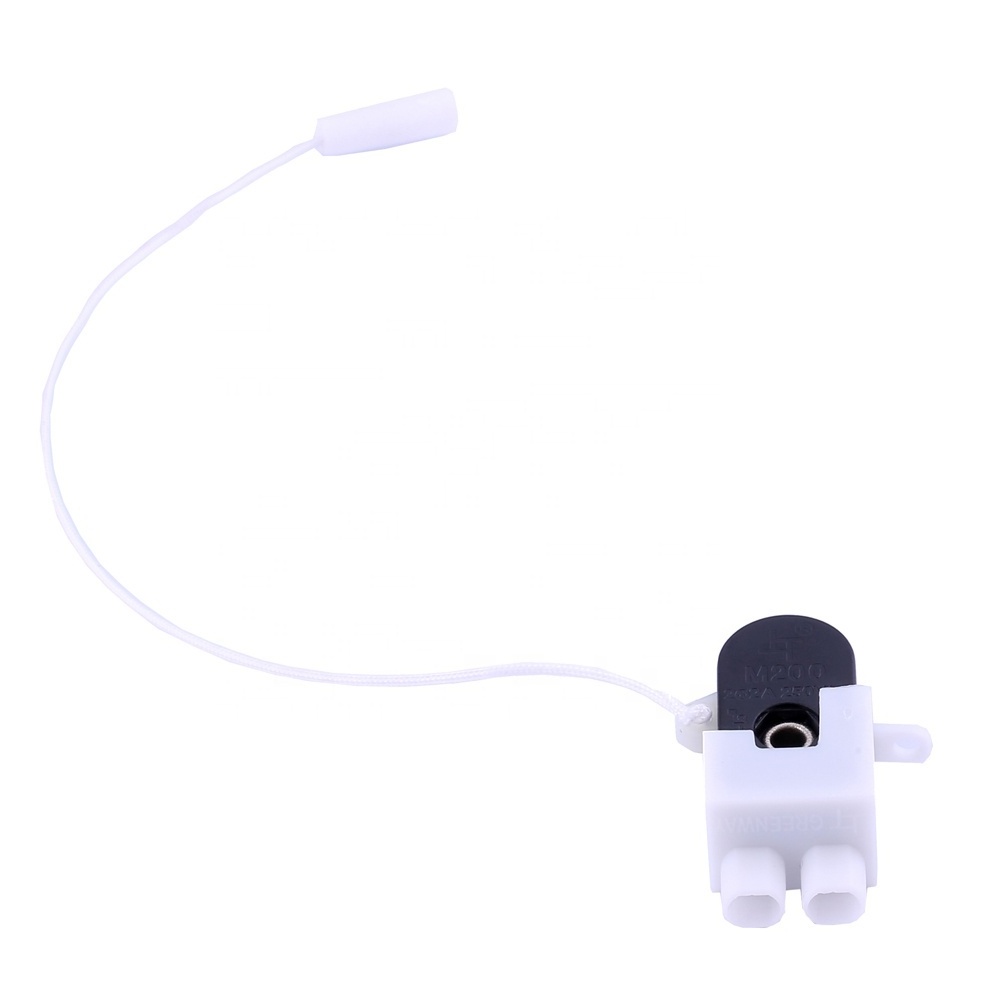

94v-2 grade M200 wall fan pull switch pull cord switch with nylon rope
|
|
|
|
|
||||
|
Model
|
|
M200
|
|
|
||||
|
Rated current
|
|
2A
|
|
|
||||
|
Rated voltage
|
|
250V
|
|
|
||||
|
Color
|
|
black
|
|
|
||||
|
Pollution degree
|
|
3
|
|
|
||||
|
UsingSingle- Pole
|
|
On- Off Switch
|
|
|
||||
|
Connection technology
|
|
Screw connection
|
|
|
||||
|
Strip length
|
|
6-8 mm / 0.24- 0.315 Inch
|
|
|
||||
|
Wire type
|
|
Single core or Copper clad side
|
|
|
||||
|
PTI
|
|
250-399
|
|
|
||||
|
House material
|
|
PC-1100
|
|
|
||||
|
Material of connection parts
|
|
Brass
|
|
|
||||
|
Housing
|
|
94V-2 grade
|
|
|
||||
|
Resistant to high voltage
|
|
3750V
|
|
|
||||
|
Switching Life
|
|
5000-10000 cycles min. Unloading 15-18 cycles per min
|
|
|
||||
|
Fixing Hole
|
|
3.7mm
|
|
|
||||
|
Cord length
|
|
Usually 22 cm , can be customized
|
|
|
||||
|
Cord material
|
|
Nylon
|
|
|
||||
|
Temperature
|
|
0-85
|
|
|
||||
|
Wire cross section
|
|
0.5-1.5 mm2
|
|
|
||||
|
certification
|
|
ENEC25,ETL,CE,ROHS
|
|
|
||||
Details Images
Type 1
Switch+22cm cord +acorn+withe jacket
Type 2
Switch+22cm cord +acorn
Type 3
Switch+22cm cord +acorn+
Product packaging
|
Package detail
|
|
|
|
200pcs/PE bag
|
|
|
|
2000pcs/carton
|
|
|
|
carton package
|
|
|
|
carton size：32*25*32cm
|
|
|
