Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAC
-
Supplier Type:
-
Internet of Things Provider
-
Name:
-

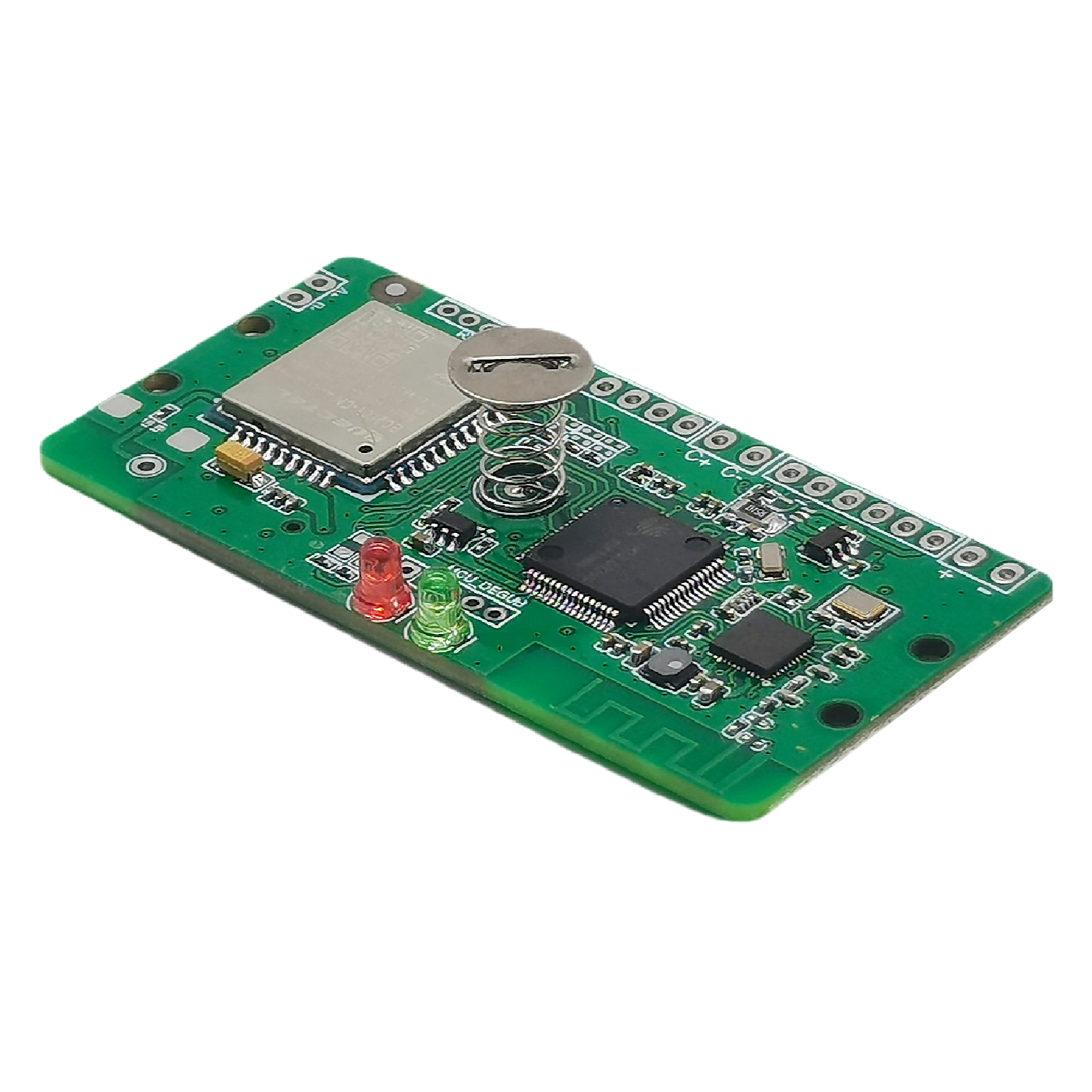

NB-IoT Bluetooth dual mode meter reading module
-
Type:
-
Customizable
-
System composition:
-
Meter reading management platform, handheld, NB communication module
-
Accessories:
-
Setting tools, handheld equipment, data management platform, etc.
-
Features:
-
Low power consumption,low cost,long communication distance
-
Frequency:
-
850MHz(Band5), 900MHz(Band8), or the locally supported NB-IoT band
-
Communication distance:
-
The communication distance is greater than 20Km
-
Battery lifetime:
-
At least 10 years
-
Power consumption:
-
<20uA
-
Operating voltage:
-
3.1V~4.0V
Quick Details
-
Chipset:
-
EFR32BG22C112F352GM32 BC260Y
-
Application:
-
NB-IoT Wireless meter reading applications
-
Model Number:
-
HAC-NBt
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAC
-
Supplier Type:
-
Internet of Things Provider
-
Name:
-
NB-IoT Bluetooth dual mode meter reading module
-
Type:
-
Customizable
-
System composition:
-
Meter reading management platform, handheld, NB communication module
-
Accessories:
-
Setting tools, handheld equipment, data management platform, etc.
-
Features:
-
Low power consumption,low cost,long communication distance
-
Frequency:
-
850MHz(Band5), 900MHz(Band8), or the locally supported NB-IoT band
-
Communication distance:
-
The communication distance is greater than 20Km
-
Battery lifetime:
-
At least 10 years
-
Power consumption:
-
<20uA
-
Operating voltage:
-
3.1V~4.0V
HAC-NBt meter reading system is the overall solution of low power intelligent remote meter reading application developed by Shenzhen HAC Telecom Technology Co., LTD based on NB-iot technology of Internet of Things and Bluetooth. The scheme is composed of meter reading management platform, mobile phone APP and terminal communication module. Its functions cover collection and measurement, two-way NB communication and Bluetooth communication, meter reading control valve, and near end maintenance, etc., which fully meet the requirements of water supply companies, gas companies and power grid companies for wireless meter reading applications.
l Ultra-low power consumption: capacity ER26500+SPC1520 battery pack can reach 10 years of life;
l Easy access: there is no need to rebuild the network, and it can be directly used for business with the help of the operator's existing network;
l Super capacity: storage of monthly frozen data for 10 years and daily frozen data for 12 months;
l Two-way communication: in addition to remote reading, remote setting and query of parameters, valve control, etc.;
l Near-end maintenance: It can communicate with mobile APP through Bluetooth to achieve near-end maintenance, including OTA firmware upgrade and other special functions.
|
performance parameter |
Min |
Typ |
Max |
Units |
|
working voltage |
3.1 |
3.6 |
4.1 |
V |
|
operating temperature |
-20 |
25 |
75 |
℃ |
|
Storage temperature |
-40 |
-- |
80 |
℃ |
|
Sleep current |
-- |
16 |
18 |
uA |
HAC products have been widely used in water, gas, heat, electric power, petroleum, military and other fields. The water, electricity, gas and heat wireless communication meter reading system which is based on the low-power wake-up patent technology has been used for a long time in the domestic and overseas market.
