Quick Details
-
Power (kW):
-
13.5
-
Range of Spindle Speed(r.p.m):
-
1 - 5500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XT
-
Voltage:
-
220V 380V 415V 440V
-
Dimension(L*W*H):
-
4200*1250*2700mm
-
Weight (KG):
-
1200 KG
-
Motor Brand:
-
ABB/Siemens/domestic
-
cooling system:
-
water
-
After-sales Service Provided(1):
-
Free spare parts/Video technical support/Online support
-
After-sales Service Provided(2):
-
Field installation, commissioning and training
-
After-sales Service Provided(3):
-
Field maintenance and repair service
-
After Warranty Service(1):
-
Video technical support/Spare parts/Online support
-
After Warranty Service(3):
-
Field maintenance and repair service
-
Local Service Location:
-
Viet Nam/Pakistan/Thailand/Malaysia/South Korea
Quick Details
-
Output (kg/h):
-
30 - 200 kg/h
-
Feeding Size (mm):
-
1 - 10 mm
-
Output Size (mesh):
-
80 - 320 mesh
-
Power (kW):
-
13.5
-
Range of Spindle Speed(r.p.m):
-
1 - 5500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XT
-
Voltage:
-
220V 380V 415V 440V
-
Dimension(L*W*H):
-
4200*1250*2700mm
-
Weight (KG):
-
1200 KG
-
Motor Brand:
-
ABB/Siemens/domestic
-
cooling system:
-
water
-
After-sales Service Provided(1):
-
Free spare parts/Video technical support/Online support
-
After-sales Service Provided(2):
-
Field installation, commissioning and training
-
After-sales Service Provided(3):
-
Field maintenance and repair service
-
After Warranty Service(1):
-
Video technical support/Spare parts/Online support
-
After Warranty Service(3):
-
Field maintenance and repair service
-
Local Service Location:
-
Viet Nam/Pakistan/Thailand/Malaysia/South Korea
Products Description
Main Application
The machine is composed of main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing,
non-sieve or mesh equality of granule size and continuousness processing,etc.It meets the international advanced level and is suitable for the material grinding by the trade of and foodstuff etc.
Working Method

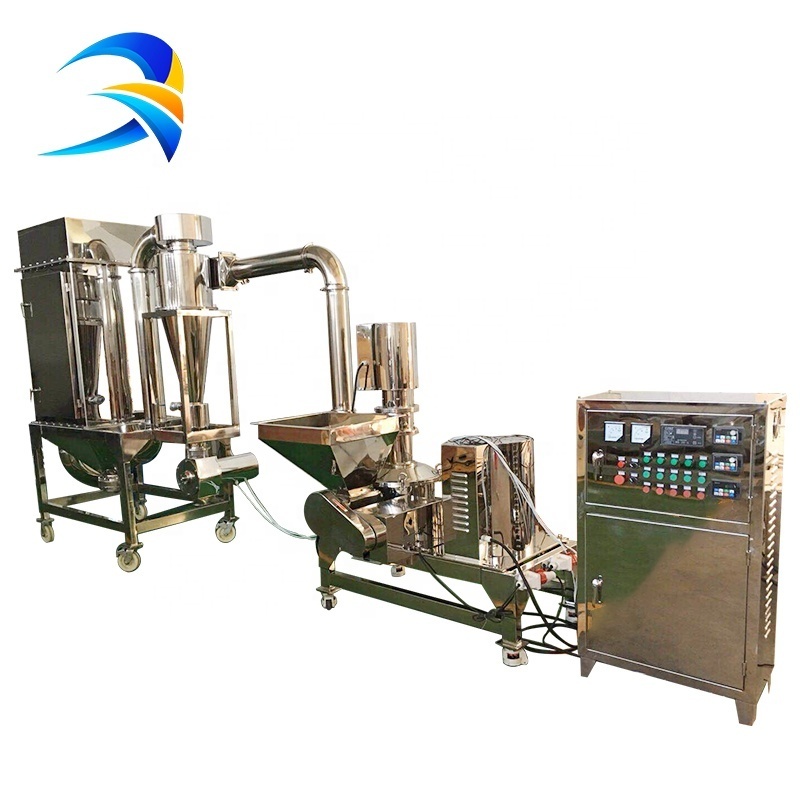

Material is fed into the grinding chamber via screw feeder and strongly impacted and collided into fine powder between the high-speed disc rotor and teeth liner. After grinding process, fine powders are carried to the classifying section by airflow where qualified powders are suctioned into the interior of the classifying wheel and discharged as products; coarse powders flow through the inner guide ring back to the grinding chamber because of centrifugal force for re-grinding. Final product is collected by cyclone and bag house.
WFJ series air classifying mill pulverizer has been widely used for milling/pulverizing high fiber content materials, heat
sensitive materials and brittle materials in food and chemical industry.
The machine is composed of main motor, auxiliary motor and electrical control cabinet with the capabilities of winnowing,
non-sieve or mesh equality of granule size and continuousness processing,etc.It meets the international advanced level and is suitable for the material grinding by the trade of and foodstuff etc.
Working Method
Material is fed into the grinding chamber via screw feeder and strongly impacted and collided into fine powder between the high-speed disc rotor and teeth liner. After grinding process, fine powders are carried to the classifying section by airflow where qualified powders are suctioned into the interior of the classifying wheel and discharged as products; coarse powders flow through the inner guide ring back to the grinding chamber because of centrifugal force for re-grinding. Final product is collected by cyclone and bag house.
WFJ series air classifying mill pulverizer has been widely used for milling/pulverizing high fiber content materials, heat
sensitive materials and brittle materials in food and chemical industry.
Technical advantages
1 Material:usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.
2 Automatic operating:just press button easy to clean,usually use water cooling and air compressor is ok .
2 Automatic operating:just press button easy to clean,usually use water cooling and air compressor is ok .
3.
Output size is adjustable via air classifier.
4. Final powder size range from 40 mesh -320 mesh.
5. Machine has water cooling system to reduce working temperature,so can working long hours.
4. Final powder size range from 40 mesh -320 mesh.
5. Machine has water cooling system to reduce working temperature,so can working long hours.
Technical Data
|
Model
|
15
|
20
|
30
|
60
|
80
|
110
|
|
Capacity（kg/h）
|
30-200
|
50-300
|
30-800
|
50-1200
|
100-1500
|
200-3000
|
|
Size of input granules（mm）
|
＜10
|
＜12
|
＜15
|
＜15
|
＜15
|
＜20
|
|
Size of output granules (mesh)
|
80-320
|
80-320
|
80-320
|
80-320
|
80-320
|
80-320
|
|
General power（kw）
|
13.5
|
17.5
|
46
|
84.15
|
145
|
230
|
|
Main running speed（r/min）
|
5500
|
4800
|
3800
|
2800
|
2800
|
2800
|
|
Weight（kg）
|
1200
|
1600
|
2500
|
3200
|
8700
|
15000
|
|
Overall size（L×W×H）( mm)
|
4200*1250*2700
|
4700*1250*2900
|
6640*1300*3960
|
7500*2300*4530
|
9800*2600*6800
|
13000*3500*7200
|
Product Detailes
Grinding chamber inside
Alloy steel hammer heads and specially heat-treated teeth liner can considerablly increase life-span.
Grinding chamber outside
All the motors are well protected for safety and high sanitary working conditions.
Product collecting system---
Discharging Valve
Product collecting system consists of cyclone, bag house and draft fan to prevent dust and increase collection rate.
Product collecting system---
bag house
Product collecting system consists of cyclone, bag house and draft fan to prevent dust and increase collection rate.
