Quick Details
-
Type:
-
Farm Equipment
-
Use:
-
Removing Impurity and Dust
-
Production Capacity (kg/h):
-
1000 - 10000
-
Sieve Size(mm):
-
1700*1600
-
Power (kW):
-
13
-
Weight:
-
2000 KG
-
Customize:
-
Color, layer,size of sieves
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hebei Taobo
-
Dimension(L*W*H):
-
4400*2300*4000
-
Type:
-
Farm Equipment
-
Use:
-
Removing Impurity and Dust
-
Production Capacity (kg/h):
-
1000 - 10000
-
Sieve Size(mm):
-
1700*1600
-
Power (kW):
-
13
-
Weight:
-
2000 KG
-
Customize:
-
Color, layer,size of sieves

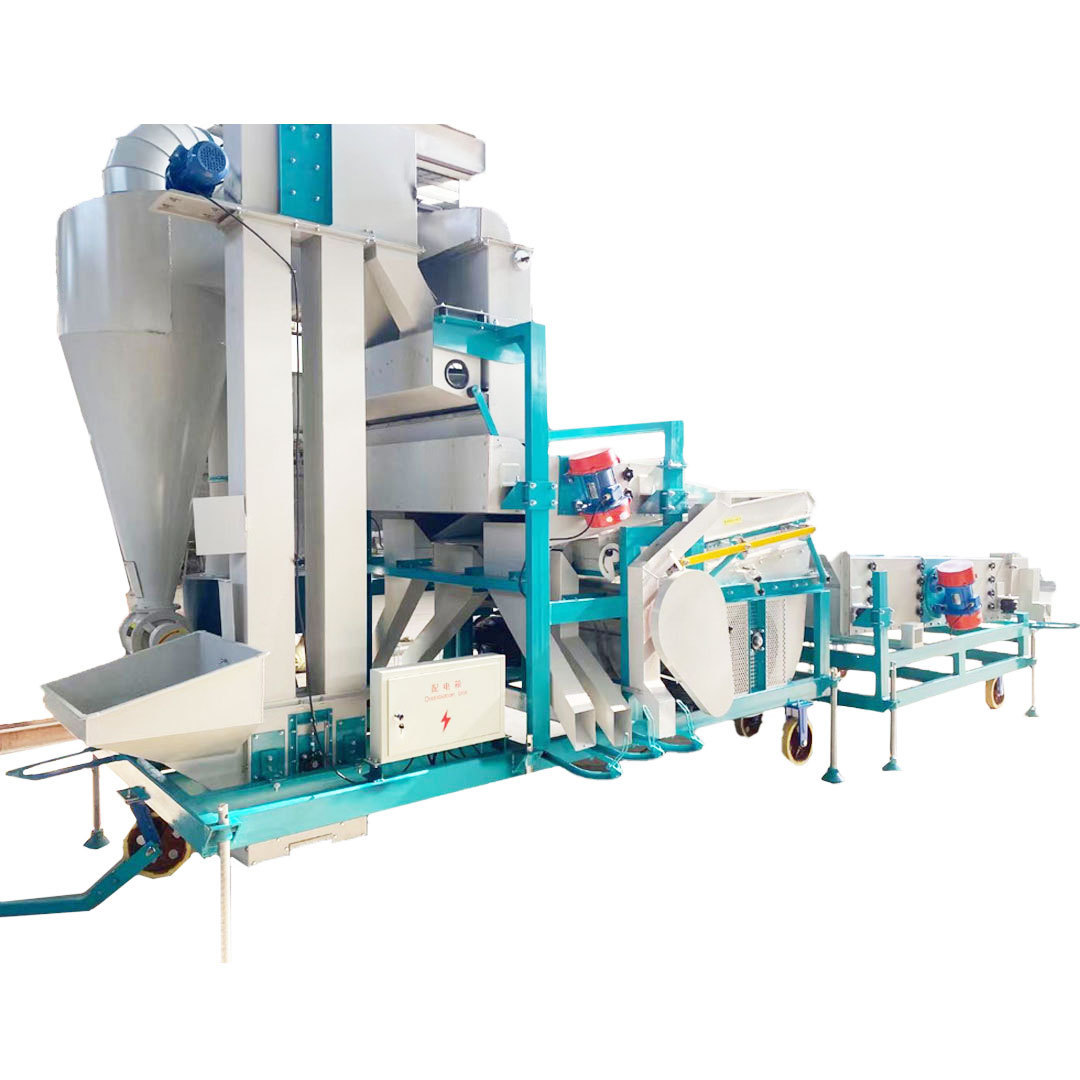

PRODUCT OVERVIEW

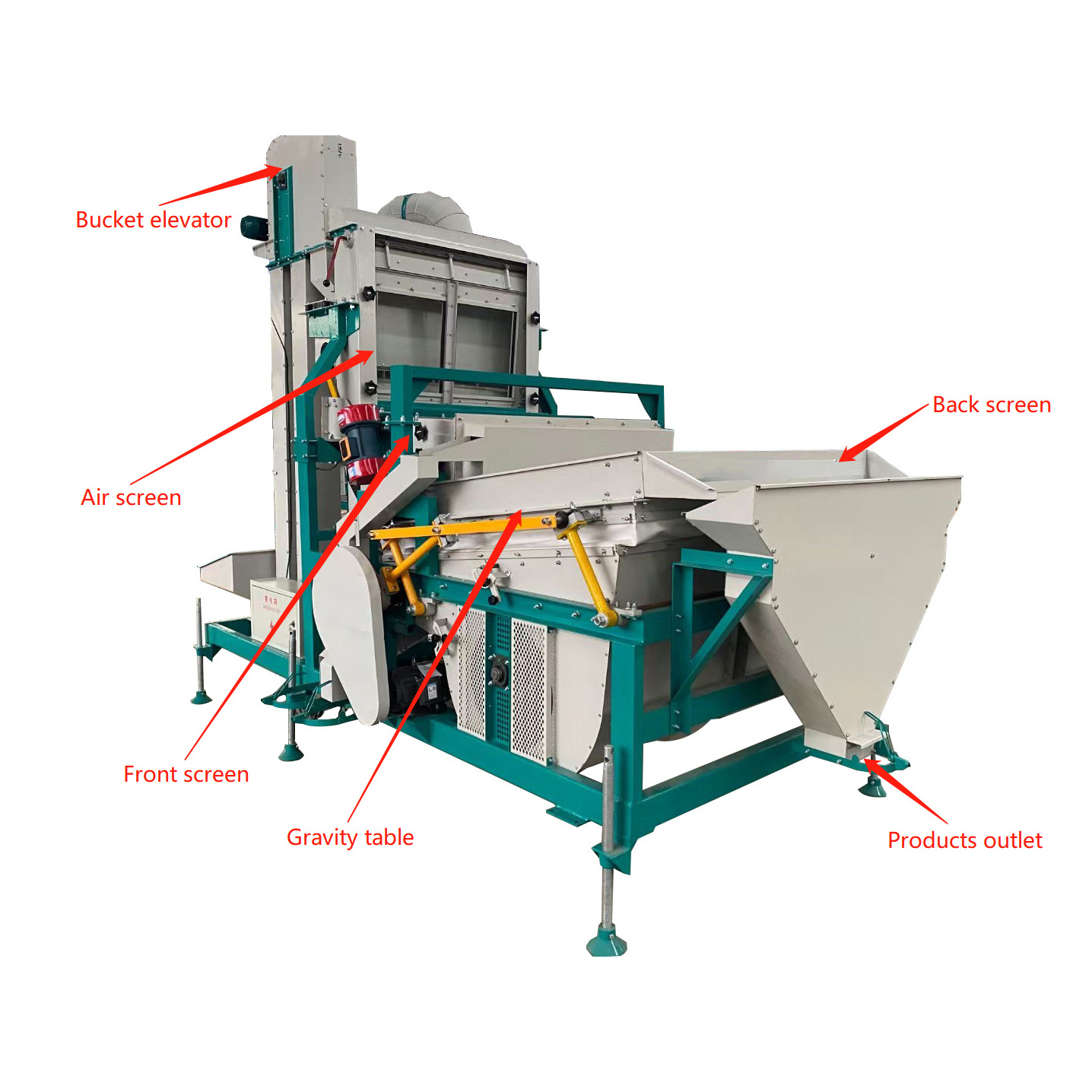

The air screen cleaner with gravity table consists of non-broken elevator, cyclone dust collector, vertical air screen, vibration box, vibration motor,gravity table.The material enters the feed hopper,and through the elevator, it enters the feed box.At this time, the cyclone duster begins to take effect, light impurities such as dust or light straw bran removed. Material into the bulk grain box, bulk grain box can disperse the material, make the material more uniform into the screen box and then into the gravity table. Under the double action of wind and vibration, the bad bean out from the front impurity outlet flow, good material from the hopper out.
VIDEO DESCRIPTION
FEATURES
1
No broken elevator leads no damage to grain
2 Cyclone dust catcher achive quick dust removal
3 Can be used for various materials, such as sesame seeds, pulses
4 Stainless steel screen to ensure food safety
5 Equipped with vibration box, achieve high capacity.
2 Cyclone dust catcher achive quick dust removal
3 Can be used for various materials, such as sesame seeds, pulses
4 Stainless steel screen to ensure food safety
5 Equipped with vibration box, achieve high capacity.
AFTER CLEANING EFFECT
PRODUCT CONFIGURATION
Stainless steel woven sieves
Best vibration motor
Distribution box
SPECIFICATIONS
|
Model
|
Table size(MM)
|
Power(KW)
|
Capacity(T/H)
|
Weight(T)
|
Oversize
L*W*H(MM)
|
Voltage
|
|
5TB-25S
|
1700*1600
|
13
|
10
|
2
|
4400*2300*4000
|
380V 50HZ
|
|
5TB-40S
|
1700*2000
|
18
|
10
|
4
|
5000*2700*4200
|
380V 50HZ
|
RECOMMEND PRODUCTS
PACKING & SHIPPING
Application Industry
About Us
Hebei Taobo Machinery has been focusing on manufacturing grains pulses & oils seeds processing equipment over 10 years.
Our products include grains processing plant ,oil processing plant, sesame and pulses processing plant, and coffee beans processing plant, We have a research and development team forkeeping our products to be high technology and best quality.
Hebei Taobo has been delivering tabo projects since its establishment and today with technological improvements in the industry taobo delivers nearly 80 plants a year globally.
Now you can find our equipment in Ethiopia, Sudan, south Africa, Tanzania, Uganda and Dubai etc.
We always believes WIN-WIN Together it can win the future！
Why Choose Us
FAQ
Q1
: Can we visit the factory ?
A1 : Sure, our factory is in Hebei Province, very close to Beijing, You can contact our business manager, we will arrange the pick-up service.
Q2 : How long is your delivery time?
A2 : For a single machine, we can deliver in 5-10 days, and for the whole normal line, it is estimated to be about 20 days.
Q3 : I want to more machines , how can I get latest catalog for reference?
A3 : You can contact us, we will send you the latest cataloq.
Q4 : How to ensure the quality and how long is the warranty period?
A4 : Before each device is shipped, our engineers will debug the device to the best operating condition to ensure the customer's use effect. We will provide commonly used spare parts, and after-sales engineers will provide technical solutions for machine failures in time. Warranty period is 1 year.
A1 : Sure, our factory is in Hebei Province, very close to Beijing, You can contact our business manager, we will arrange the pick-up service.
Q2 : How long is your delivery time?
A2 : For a single machine, we can deliver in 5-10 days, and for the whole normal line, it is estimated to be about 20 days.
Q3 : I want to more machines , how can I get latest catalog for reference?
A3 : You can contact us, we will send you the latest cataloq.
Q4 : How to ensure the quality and how long is the warranty period?
A4 : Before each device is shipped, our engineers will debug the device to the best operating condition to ensure the customer's use effect. We will provide commonly used spare parts, and after-sales engineers will provide technical solutions for machine failures in time. Warranty period is 1 year.
