Quick Details
-
Name:
-

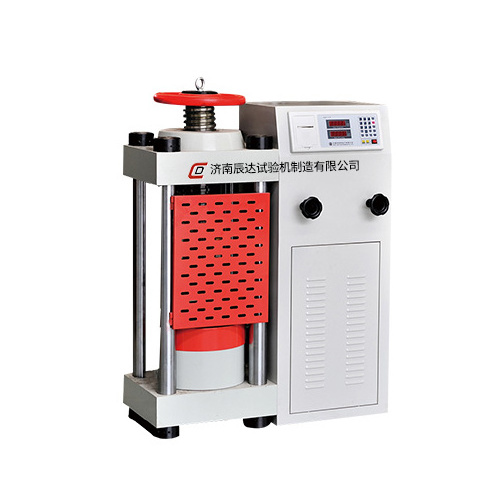

YES 2000 2000kn Concrete Compression Testing Machine Price
-
Max load:
-
2000kn
-
Load accuracy:
-
Within ±1%
-
Size of the bearing plate:
-
320*260mm
-
Rated pressure of the hydraulic pump:
-
40 mpa
-
Compression Space:
-
500mm
-
Minimum piston lift speed:
-
50mm/min
-
Piston stroke:
-
50mm
-
power:
-
220v
Quick Details
-
Power:
-
Hydraulic
-
Usage:
-
Compression Testing Machine
-
Place of Origin:
-
Shandong, China
-
Name:
-
YES 2000 2000kn Concrete Compression Testing Machine Price
-
Max load:
-
2000kn
-
Load accuracy:
-
Within ±1%
-
Size of the bearing plate:
-
320*260mm
-
Rated pressure of the hydraulic pump:
-
40 mpa
-
Compression Space:
-
500mm
-
Minimum piston lift speed:
-
50mm/min
-
Piston stroke:
-
50mm
-
power:
-
220v
Standard: ISO 7500-1 ASTM E4.
Application: this machine is designed to conduct compression and crushing strength tests on containers, concrete cube &cylinders, hollow blocks and various other material in accordance with international standards. The machine is electro-hydraulically operated. the control panel comprises of hydraulic power pack, digital readout system , operating switches, load control values, output print-out of test data.
Feature:
1. Efficient hydraulic power packs
2. Economic machine ideal for site use
3. Designed to meet the need for a simple , economic and reliable means of testing concrete
4. The dimension of the frame allow the testing of cylinder up to 320mm long *160mm motor and any arbitrary size
5. Digital readout is microprocessor controlled instrument which is fitted as standard to all digital machines in the range
6. Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range
Technical Parameter:
Digital Displayer
Vibrating screen machine
Concrete Slump Test
