* LCD display
* Standand module structure design
* Din rail installation
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Elecnova
-
Model Number:
-
PD195Z-E31
-
Accuracy Class:
-
0.2%/0.5%
-
Output Voltage:
-
230V
-
Operating Temperature:
-
-10℃~55℃
-
Dimensions:
-
72*90*63.5mm
-
Product name:
-
industrial control system
-
Display:
-
LCD
-
Communication interface:
-
RS485
-
Current signal input:
-
Hall transformer DC-4V
-
Voltage signal input:
-
DC:0~100V,0~300V,0~1000V,(max. over voltage 1200V)
-
Net weight:
-
About 300g
-
Port of loading:
-
Shanghai
-
Warranty:
-
2 years
-
Delivery time:
-
15days after confirmation
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-999999
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Elecnova
-
Model Number:
-
PD195Z-E31
-
Accuracy Class:
-
0.2%/0.5%
-
Output Voltage:
-
230V
-
Operating Temperature:
-
-10℃~55℃
-
Dimensions:
-
72*90*63.5mm
-
Product name:
-
industrial control system
-
Display:
-
LCD
-
Communication interface:
-
RS485
-
Current signal input:
-
Hall transformer DC-4V
-
Voltage signal input:
-
DC:0~100V,0~300V,0~1000V,(max. over voltage 1200V)
-
Net weight:
-
About 300g
-
Port of loading:
-
Shanghai
-
Warranty:
-
2 years
-
Delivery time:
-
15days after confirmation
Product Description
|
Product Name
|

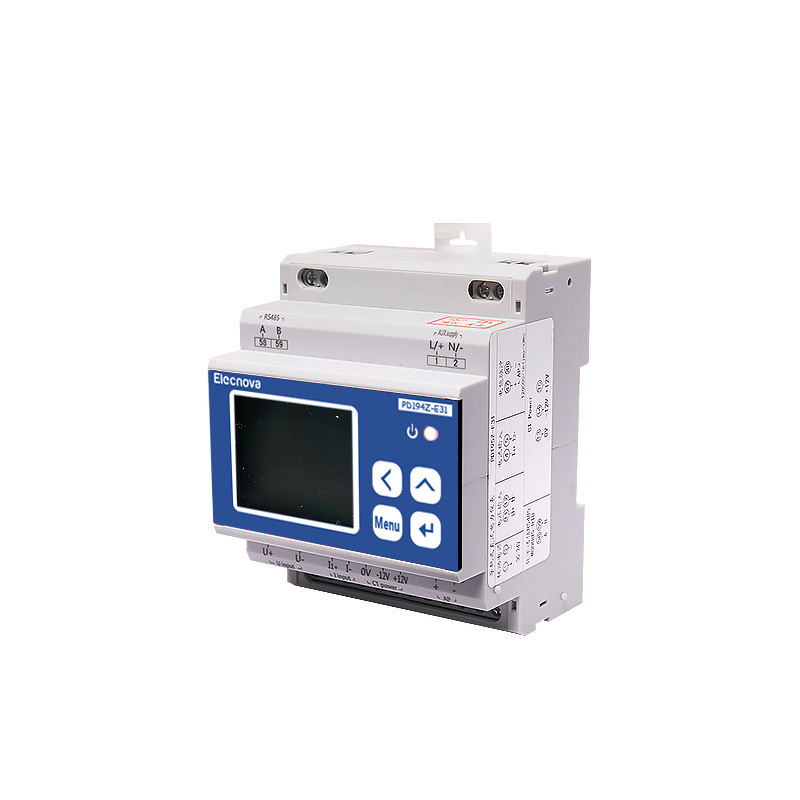

Elecnova PD195Z-E31 DC industrial control system Din rail installation RS485 data monitoring analyzer digital power meter
|
|
Installation
|
Din rail mounted
|
|
Measurement
|
voltage, current and power, energy, demand and Max./Min. values of one DC circuit
|
|
Accuracy
|
Voltage, current: :0.5
Active power: 0.5
Max./Min. value: 0.5
Demand:0.5
Active energy: 1
|
|
Voltage Input Signal Value
|
DC:0~100V,0~300V,0~1000V,(max. over voltage 1200V)
|
|
Communication RS485 Interface
|
Modbus-RTU protocol, baud rate up to 9600bps
|
|
Working Power Supply Rated Range
|
AC/DC:80~270V or DC:24V
|
|
Storage Temperature
|
-40°C ~ 85°C
|
|
Optional module
|
EK1: 4 digital inputs+2 relay outputs
|
Products Show
Advantages:
Application:
* Solar PV power electric generation
* Wide power generation
* Industrial DC control system
Certifications
Size
Related Products
Packing & Shipment
Air bag protection
Inner box for each
Master carton box
Delivery and Shipment
Delivery time: 5-7days after sales confirmation
Transportation: By Air or by Sea
Port of laoding: Shanghai port, or Any port of China
Product guaranty: 2 years
