Quick Details
-
Model Number:
-
G1
-
Brand Name:
-
IMGV
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
DN800 GATE VALVE
-
Body material:
-
Cast Iron
-
Connection:
-
Flange Ends
-
Color:
-
Customizable
-
Certificate:
-
ISO9001:2008 CE
-
Type:
-
Gate Valves
Quick Details
-
Port Size:
-
DN50-DN1200
-
Warranty:
-
18M
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
G1
-
Brand Name:
-
IMGV
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
DN800 GATE VALVE
-
Body material:
-
Cast Iron
-
Connection:
-
Flange Ends
-
Color:
-
Customizable
-
Certificate:
-
ISO9001:2008 CE
-
Type:
-
Gate Valves

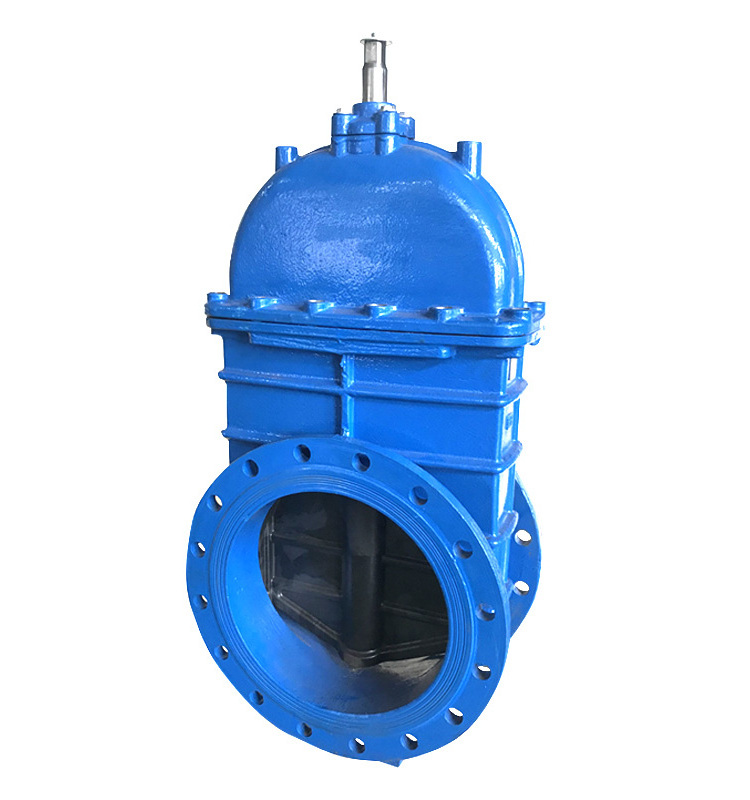

China Factory Manufactured DN800 Cast Iron Flange Type Gate Valves
P16 8 inch bronze electric actuated gate valve
| Size | DN50-DN600 |
| Nominal Pressure | PN10/PN16 |
| WorkingTemperature | -10°C~120°C |
| Suitable Medium | Chemicals,air,water,steam,oil, acids,salts,etc |
Standards
| Design standard | DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163 |
| Face to Face | DIN3202 F4/F5, BS5163, ANSI B16.10 |
| Flange Drilling | DIN2533 PN10/PN16, ANSI 125/150,JIS10K |
| Test Inspection | DIN3230, BS6755 |
Materials
| Body | Cast Iron, Ductile Iron |
| Wedge | Cast Iron, Ductile Iron |
| Stem | Stainless steel,Brass |
| Sealing Ring | EPDM,NBR |
| O Ring | EPDM,NBR |
production process
