Quick Details
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1025*520*3.5mm
-
Panel Efficiency:
-
22%
-
Product name:
-

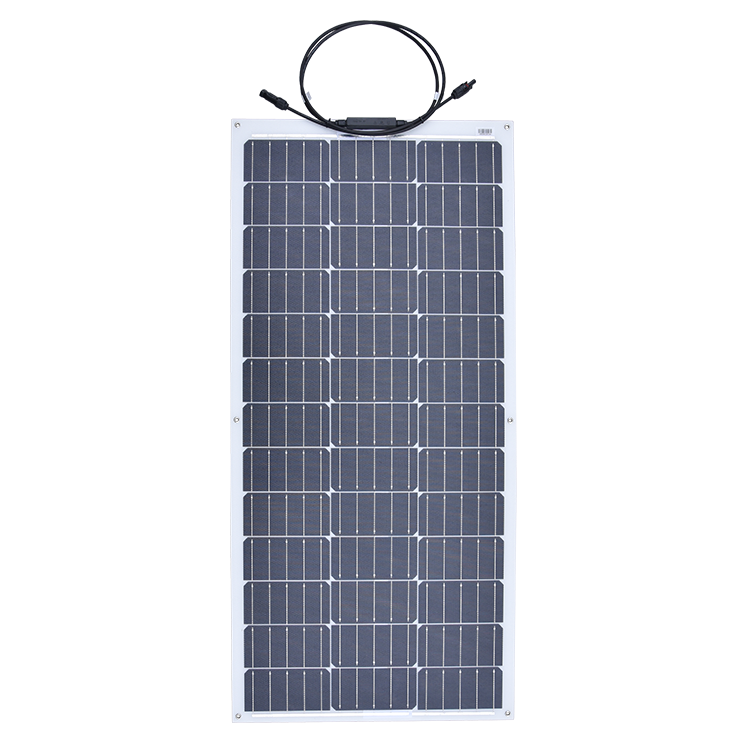

100w thin film sunpower flexible solar panel for lawn vehichs
-
Color:
-
Dark Blue
-
Material:
-
Monocrystalline Silicon
-
Solar cell:
-
HIT CELL
-
OEM Order:
-
Acceptable
-
Certificate:
-
CE/RoHS/ISO, CE/RoHS/ISO
-
characteristic:
-
flexible solar panel
-
Application:
-
Solar yacht,solar light,solar mosquito killer lamp
-
Thick:
-
3.0 mm
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Brand Name:
-
OEM
-
Model Number:
-
HFP-100
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1025*520*3.5mm
-
Panel Efficiency:
-
22%
-
Product name:
-
100w thin film sunpower flexible solar panel for lawn vehichs
-
Color:
-
Dark Blue
-
Material:
-
Monocrystalline Silicon
-
Solar cell:
-
HIT CELL
-
OEM Order:
-
Acceptable
-
Certificate:
-
CE/RoHS/ISO, CE/RoHS/ISO
-
characteristic:
-
flexible solar panel
-
Application:
-
Solar yacht,solar light,solar mosquito killer lamp
-
Thick:
-
3.0 mm
Factory Price Monocrystalline Silicon 100w 18v Etfe Flexible Solar Cell Solar Panel
|
Product name
|
Factory price monocrystalline silicon 100w 18V ETFE Flexible sunpower solar cell Solar Panel
|
|||||
|
Maximum power(Pmax)
|
100W
|
|||||
|
Voltage at Pmax(Vmp)
|
24.2
|
|||||
|
Current at Pmax(Imp)
|
4.13
|
|||||
|
Open-circuit voltage(Voc)
|
28.1
|
|||||
|
Short-circuit current(Isc)
|
4.35
|
|||||
|
Power Tolerance
|
±5%
|
|||||
|
Cells Efficiency(%)
|
22%
|
|||||
|
The maximum system voltage
|
1000VDC(IEC)
|
|||||
|
Maximum Series Fuse
|
15A
|
|||||
|
Temperature
|
-40 to +80
|
|||||
|
Power Temp Coef.
|
-0.28%/
|
|||||
|
Voltage Temp Coef.
|
-0.27%/
|
|||||
|
Current Temp Coef.
|
-0.059%/
|
|||||
|
Solar cell brand
|
HIT CELL
|
|||||
|
No.of cells and connections
|
39(3*13)
|
|||||
|
Module dimension
|
1025*520*3.5mm
|
|||||
|
Weight
|
2KG
|
|||||
|
Surface
|
ETFE
|
|||||
|
Waterproof junction box
|
IP67/MC4
|
|||||
|
Quality Managerment
|
ISO9001-2015
|
|||||
|
Warranty
|
1 year and service life 10 years
|
|||||
|
Maximum bend radius()
|
6°
|
|||||
|
Cables and Connectors
|
2.5mm² cable with MC4 connector
|
|||||
|
Standard Test Conditions
|
STC: 1000W/m², AM 1.5 and cell temp 25°C
|
|||||
