Quick Details
-
Rated power:
-
12kw
-
Starting form:
-
electric start
-
Hopper volume:
-
0.4m3 (larger volume, reducing waiting time)
-
Paving curb size:
-
width <900mm, height <500mm
-
Working voltage:
-
380V
-
Heat dissipation form:
-
water cooling
-
size:
-
2800*2100*1200mm
-
Function:
-
Road Basic Construction
Quick Details
-
Weight (KG):
-
2000
-
Place of Origin:
-
Henan, China
-
Product name:
-

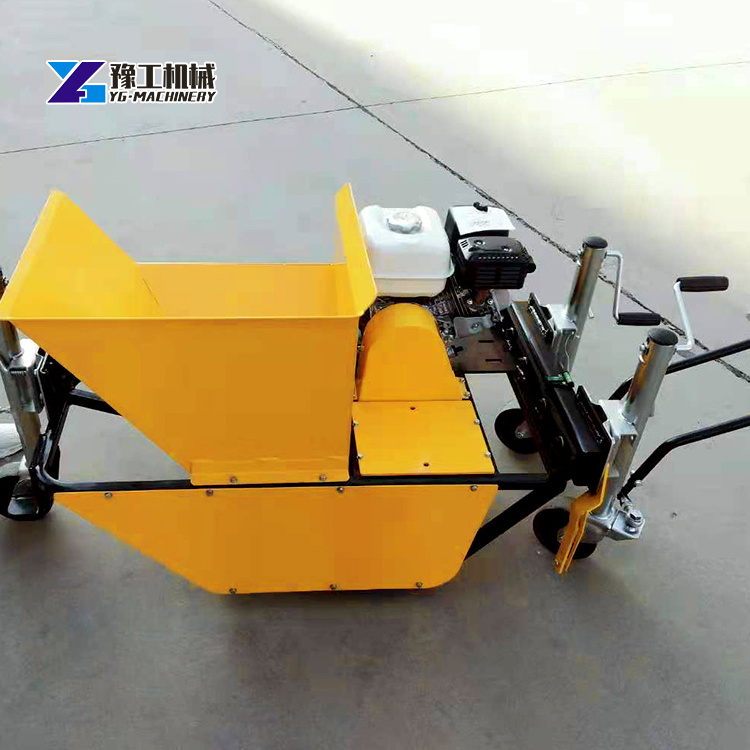

Concrete curb cutting curb stone making machine for sale
-
Rated power:
-
12kw
-
Starting form:
-
electric start
-
Hopper volume:
-
0.4m3 (larger volume, reducing waiting time)
-
Paving curb size:
-
width <900mm, height <500mm
-
Working voltage:
-
380V
-
Heat dissipation form:
-
water cooling
-
size:
-
2800*2100*1200mm
-
Function:
-
Road Basic Construction
Concrete curb and gutter machine is a one-time completion of the whole process of laying curbs in site pouring construction, which can improve work efficiency and reduce labor intensity. Plastic concrete can also be used as dry hard concrete. After being compacted by a motor, it is formed by a sliding mold and vibrated continuously while walking. The formed curb has higher impact strength and stability.
Working principle:
Spiral blades are installed in front of the forming mold, and the blades continuously rotate to continuously push the cement concrete into the forming mold and squeeze out the curb. The vibrating rod is installed in front of the forming mold. The high-frequency vibration of the rod makes the cement concrete reach a certain degree of compactness, and the machine advances by its own power.
| Paving curb size | width <900mm, height <500mm | |
| Generator set parameters | Rated power | 12kw |
| Working voltage | 380V | |
| Starting form | electric start | |
| Heat dissipation form | water cooling | |
| Features | well-known brand single-cylinder diesel engine, high reliability; well-known brand 100% all-copper generator | |
| Vibrating rod forming | suitable for plastic concrete (higher strength of curbs); suitable for dry hard concrete (more beautiful appearance of curbs) | |
| Automatic leveling(optional) | leveling range: +-5cm (Japanese components, temperature compensation, overvoltage and overcurrent protection) | |
| Automatic steering | Minimum turning radius: 3.5m (Japanese components, temperature compensation, overvoltage and overcurrent protection) | |
| Paving speed | 1-6m/min (using CVT transmission, convenient to adjust the most suitable paving speed) | |
| Hopper volume | 0.4m3 (larger volume, reducing waiting time) | |
| No-load mass | 2000kg | |
| Size | 2800*2100*1200mm | |
Application And Features:
This machine is the special equipment for asphalt mixture or cement concrete road-building curbs.
Widely used in highway and municipal road curbs molding.
The built curbs linear has smooth appearance, water reaining effect is good,easy to operate,high production efficiency.
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
