Quick Details
-
Model Number:
-
LBCX1409
-
Mechanical Life:
-
200,000 times, 200000 times
-
IP level:
-
IP65
-
Diameter:
-
14*9mm
-
Crust material:
-
PA66
-
Contact configuration:
-
2NO/2NO2NC
-
Emitting Color:
-
Red Green Yellow Blue White
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Switch Rating:
-
7A/AC250V
-
Operation type:
-
Latching
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LBCX1409
-
Mechanical Life:
-
200,000 times, 200000 times
-
IP level:
-
IP65
-
Diameter:
-
14*9mm
-
Crust material:
-
PA66
-
Contact configuration:
-
2NO/2NO2NC
-
Emitting Color:
-
Red Green Yellow Blue White
-
LED Voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Switch Rating:
-
7A/AC250V
-
Operation type:
-
Latching
Specification
|
Model NO.
|

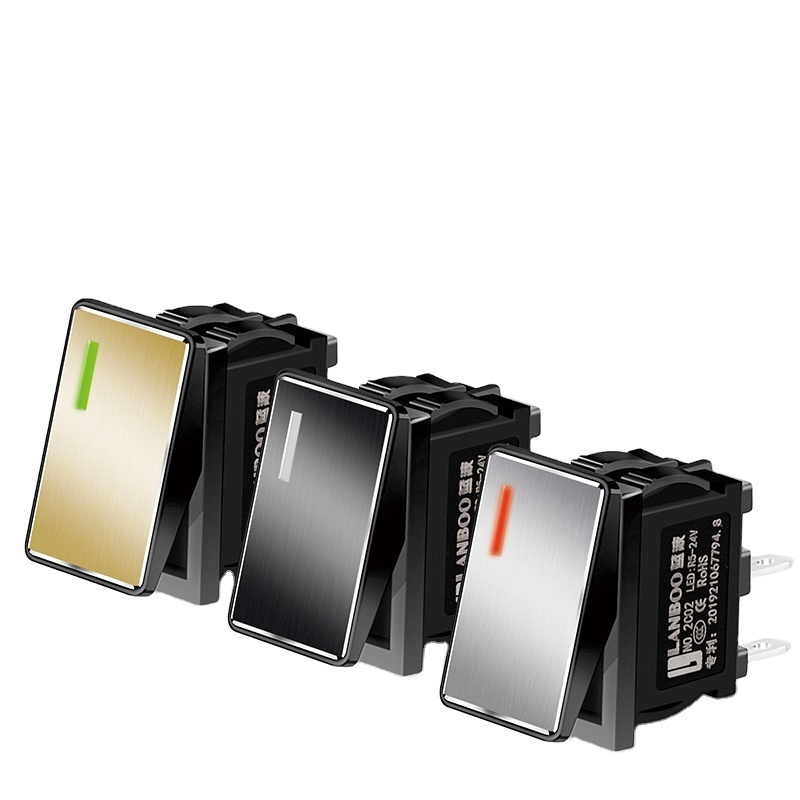

LB1409 rocker switch
|
|
Mounting diameter
|
14X9mm
|
|
Mounting thickness
|
≤3.5mm
|
|
Contact resistance
|
≤50MΩ
|
|
Dielectric Strength
|
2000VAC,50HZ,1min
|
|
Rated load
|
Resistive Load:AC-15: 110V/220V:7AAC-15: 110V/220V:7A
Inductive Load:DC-13: 12V/24V/36V:7A |
|
Mechanical life
|
20,000 times
|
|
LED rated load
|
DC5-24V,250V,customize:3-8V,25-48V,110V,AC/DC common
|
|
Illuminated LED color
|
Red,Green,customize:Blue,Yellow,White
|
