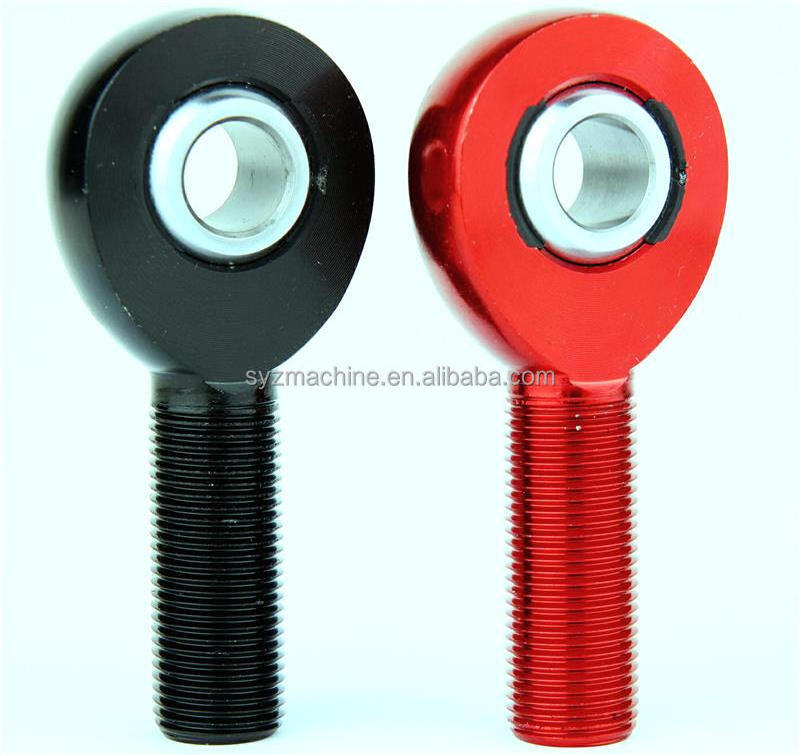

15mm MALE rod end POS15 POS 15 Boxed Rose Joint

15mm MALE rod end POS15 POS 15 Boxed Rose Joint

FOB Reference Price: Get Latest Price

≥50 Pieces

US $8

≥500 Pieces

US $6.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: pos15

Place of Origin:: Shanghai, China

Ball Material:: Gcr15 steel, hardened, hard chrome plated

Race:: bronze

Body:: Mild steel

Sliding contact surface:: steel/bronze

quality:: top quality

15mm MALE rod end POS15 POS 15:: 15mm MALE rod end POS15 POS 15 Boxed Rose Joint

Product name:: 15mm MALE rod end POS15 POS 15 Boxed Rose Joint

Application:: Offroad

size:: normal size

Quick Details

Applicable Industries:: Garment Shops, Building Material Shops, Machinery Repair Shops, Home Use, Food Shop, Printing Shops, Other

Precision Rating:: high precision

Brand Name:: SYZMachine

Model Number:: pos15

Place of Origin:: Shanghai, China

Ball Material:: Gcr15 steel, hardened, hard chrome plated

Race:: bronze

Body:: Mild steel

Sliding contact surface:: steel/bronze

quality:: top quality

15mm MALE rod end POS15 POS 15:: 15mm MALE rod end POS15 POS 15 Boxed Rose Joint

Product name:: 15mm MALE rod end POS15 POS 15 Boxed Rose Joint

Application:: Offroad

size:: normal size

SYZ MACHINE

- Your China Linkage Joint Expert, Alibaba Highly recommended supplier.

Specifications:

Number	Dimensions mm												Load ratings KN		Weight
	d	d3	B	C1	l1	d2	h	l2	dk	R1s	d1	α°	C	Co	≈kg
	d	d3	B	max	max	max	h	max	dk	min	d1	≈	C	Co

POS5	5	M5	8	6	20	18	33	42	11.11	0.3	7.7	13	3.25	5.7	0.013
POS6	6	M6	9	6.75	23	20	36	46	12.7	0.3	8.9	13	4.3	72	0.02
POS8	8	M8	12	9	25	24	42	54	15.875	0.3	10.3	14	7.2	11.6	0.03
POS10	10	M10	14	10.5	30	26	48	61	19.05	0.3	12.9	13	10	14.5	0.055
POS12	12	M12	16	12	34	30	54	69	22.225	0.3	15.4	13	13.4	17	0.085
POS14	14	M14	19	13.5	37	34	60	77	25.4	0.3	16.8	16	17	24	0.14
POS16	16	M16	21	15	41	40	66	86	28.575	0.3	19.3	15	21.6	28.5	0.21
POS18	18	M18X1.5	23	16.5	45	44	72	94	31.75	0.3	21.8	15	26	42.5	0.28
POS20	20	M20X1.5	25	18	48	48	78	102	34.925	0.3	24.3	14	31.5	52.5	0.38
POS22	22	M22X1.5	28	20	52	54	84	111	38.1	0.3	25.8	15	38	57	0.48
POS25	25	M24X2	31	22	58	60	94	124	42.85	0.3	29.5	15	47.5	68	0.64
POS28	28	M27X2	35	24	63	66	103	136	47.6	0.3	33.7	15	58	75.5	0.96
POS30	30	M30X2	37	25	67	70	110	145	50.8	0.3	34.8	17	64	88	1.1

Number	Dimensions mm														Load ratings KN		Weight
	d	d3	B	C1	W	l3	d2	l4	h1	l5	d4	d5	dk	α°	C	Co	≈kg
	d	d3	B	max	W	min	max	max	h1	max	max	max	dk	≈	C	Co

PHS5	5	M5	8	6	9	14	18	36	27	4	8.5	11	11.11	13	3.25	5.7	0.016
PHS6	6	M6	9	6.75	11	14	20	40	30	5	10	13	12.7	13	4.3	7.2	0.022
PHS8	8	M8	12	9	14	17	24	48	36	5	12.5	16	15.875	14	7.2	11.6	0.047
PHS10	10	M10	14	10.5	17	21	26	56	43	6.5	15	19	19.05	13	10	14.5	0.077
PHS12	12	M12	16	12	19	24	30	65	50	6.5	17.5	22	22.225	13	13.4	17	0.1
PHS14	14	M14	19	13.5	22	27	34	74	57	8	20	26	25.4	16	17	24	0.16
PHS16	16	M16	21	15	24	33	40	84	64	8	22	28	28.575	15	21.6	28.5	0.22
PHS18	18	M18X1.5	23	16.5	27	36	44	93	71	10	25	31	31.75	15	26	42.5	0.32
PHS20	20	M20X1.5	25	18	30	40	48	101	77	10	27.5	35	34.925	14	31.5	42.5	0.42
PHS22	22	M22X1.5	28	20	32	43	54	111	84	12	30	38	38.1	15	38	57	0.54
PHS25	25	M24X2	31	22	36	48	60	124	94	12	33.5	42	42.85	15	47.5	68	0.73
PHS28	28	M27X2	35	24	41	53	66	136	103	14	37	46	47.6	15	58	75	0.98
PHS30	30	M30X2	37	25	46	56	70	145	110	15	40	50	50.8	17	64	88	1.1

Applications:

Delivery Time:

Sample Time:

We provide free samples for parts in stock. Client pays for air freight for sample delivery or provide freight account on collect.

Sample can be sent out next day upon request.

Please send email for sample requirement.

Bulk Order Delivery Time:

Stock in hand: Ship next day after receipt of payment.

Bulk production: 30~45 days after receipt of deposit (may vary depending on specific items and item quantities)

For urgent order, we can make it faster. Please send email to negotiate.

Shipping Options:

Shipping Options with estimated charge (freight may vary depending on specific weight, volume, and address, check with us for the exact freight):

- Air freight to door by FedEx (100KGS-300KGS)= $4.40-$5.80/KG

- Air freight to door by FedEx (less than 100KGS)= $6.20-$8.00/KG

- Ocean freight to door= $600-$1,200/ shipment

- Ocean freight to nearest port= $100-$200/ shipment

We work with the most professional forwarders in the world and we share our large shipping discounts with all our customers.

Payment Terms:

We usually accept T/T (wire transfer), PAYPAL, Western Union, Escrow.

Other terms like MONEY GRAM, L/C, D/P, D/A, O/A can be negotiated.

Packing Method:

1.Neutral packing (neutral plastic bag+ neutral carton+ Plywood/Iron pallets)

2.Custom packing (with logo or barcode according to clients' requirement)

Why choose us?

1. As a direct manufacturer and also a trading company, we are able to have the best resources integrated in China and offer our clients qualified parts at the most competitive price.
2. Quality Assurance: 100% QC inspection before delivery; ISO9001:2008, and certified; Full refund or replacement for quality faulty; 90 days quality warranty for ALL products.
3. Excellent customer service, responded within 24 hours.
4. Fast delivery: we have large amount of stock ready to ship the next day after order, and for bulk production, we can work on urgent order and deliver in time.
5. We provide OEM service and can make custom parts according to clients' prints or sample pieces.
6. With 10 year's exporting experience, we've worked with customers worldwide (NORTH AMERICA 80%, EUROPE/11%, Oceania/5%, RUSSIA/2%, South Korea/1%, Japan/1%).
7. Monthly production capacity over 200,000pcs, one of the three largest in our field in China.
8. Cheapest Shipping: the price we enjoyed is the cheapest in Shanghai, "84% off from FedEx" and "80% off from DHL".
9. One-Stop service: we can take care of everything from production, shipping, import clearance, door delivery until your order is right there in your hands.
