Quick Details
-
Product name:
-
Ground Rod
-
Application:
-
Grounding System
-
Material:
-
Copper clad steel
-
Diameter:
-
14.2mm~25mm; (5/8, 3/4)
-
Length:
-
1.2m~3.0m(4ft~10ft)
-
Copper layer thickness:
-
≥0.254mm
-
Package:
-
50pcs/Pallet
Quick Details
-
Brand Name:
-
Trochi
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
Ground Rod
-
Product name:
-
Ground Rod
-
Application:
-
Grounding System
-
Material:
-
Copper clad steel
-
Diameter:
-
14.2mm~25mm; (5/8, 3/4)
-
Length:
-
1.2m~3.0m(4ft~10ft)
-
Copper layer thickness:
-
≥0.254mm
-
Package:
-
50pcs/Pallet

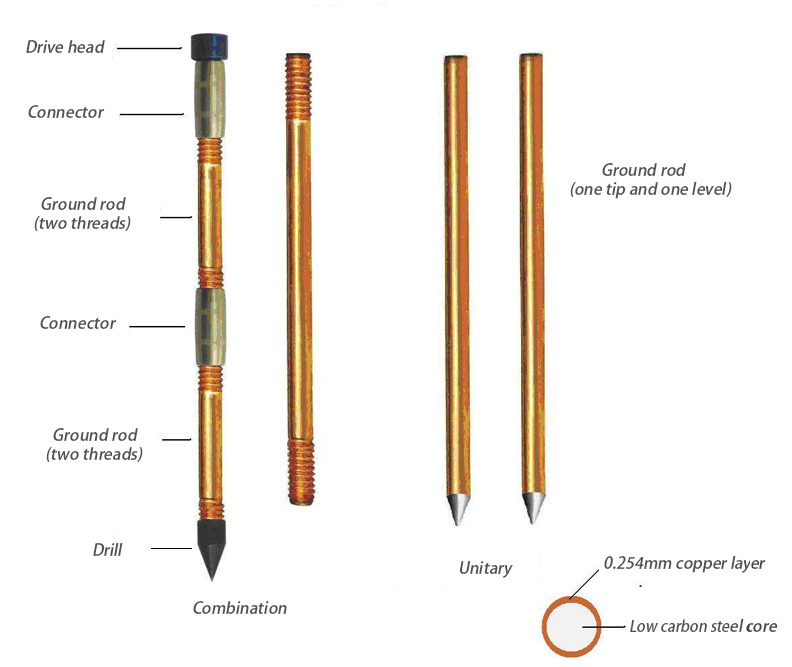

High quality copper bonded ground 5/8" 3/4" 1/2" copper clad steel earth rod price
Copper Bonded Ground Rod earth rod are widely used in power plants, substation, transmission line, tower, communication base stations, airports, railways, all kinds of high-rise buildings, microwave relay station, the networkcomputer room, grounding,oil refinery, oil depots and other places to anti-static grounding, protective grounding, working, etc.
Features:
1. The unique manufacturing process of the copper-clad steel ground rod: no disconnection, peeling, or cracking.
2. The copper clad steel ground rod has superior corrosion resistance: the surface copper layer is thicker and the service life is long.
3. Better electrical performance of copper-clad steel ground rod: excellent electrical conductivity of surface copper material
4. The connection of the copper-clad steel ground rod is safe and reliable: using a dedicated connecting pipe or hot-melt welding, the joint is firm and stable.
5. The installation of copper-clad steel ground rods is convenient and quick: complete accessories and convenient installation can effectively increase the construction speed.
6. Increasing the grounding depth: The special connection and transmission method of the copper-clad steel grounding rod can reach 35 meters underground to meet the low resistance requirements of special occasions.
7. Low construction cost.
Parameter: (for more information, pls send me an inquiry!)
| Ttem | Copper bonded ground rod earth rod |
| Material | Pure copper/copper clad steel |
| Purity of copper | ≥99.95% |
| Tensile strength | ≥580Nm/mm |
| Straightness Error | ≤1mm/m |
| Service life | ≥50 Years |
| Function | Connect with grounding,disperse the lightning |
| Type | Threaded or plat or pointed |
For more products, pls send me an inquiry!
