Quick Details
-
Power:
-
3.0kw or others
-
Min. Lifting Height:
-
2m
-
Table Size:
-
2010*830mm
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2024
-
Name:
-
self propelled Boom Lift
-
Lifting height:
-
8-30m
-
Platform plate:
-
Thickness Checkered steel plate
-
Guard Rail height:
-
1m
-
Control methods:
-
Ground Control+platform Control
-
Hydraulic oil pipe:
-
High pressure double steel net rubber pipe
-
power:
-
electrical power or diesel power
-
Application:
-
Aerial Construction Work
-
Hydraulic pump station:
-
China Famous Brand
-
Control electrical parts:
-
Delixi or Chint Brand
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
New
-
Brand Name:
-
Yunjin
-
Power:
-
3.0kw or others
-
Min. Lifting Height:
-
2m
-
Table Size:
-
2010*830mm
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
2000 kg
-
Marketing Type:
-
New Product 2024
-
Name:
-
self propelled Boom Lift
-
Lifting height:
-
8-30m
-
Platform plate:
-
Thickness Checkered steel plate
-
Guard Rail height:
-
1m
-
Control methods:
-
Ground Control+platform Control
-
Hydraulic oil pipe:
-
High pressure double steel net rubber pipe
-
power:
-
electrical power or diesel power
-
Application:
-
Aerial Construction Work
-
Hydraulic pump station:
-
China Famous Brand
-
Control electrical parts:
-
Delixi or Chint Brand
Product Description

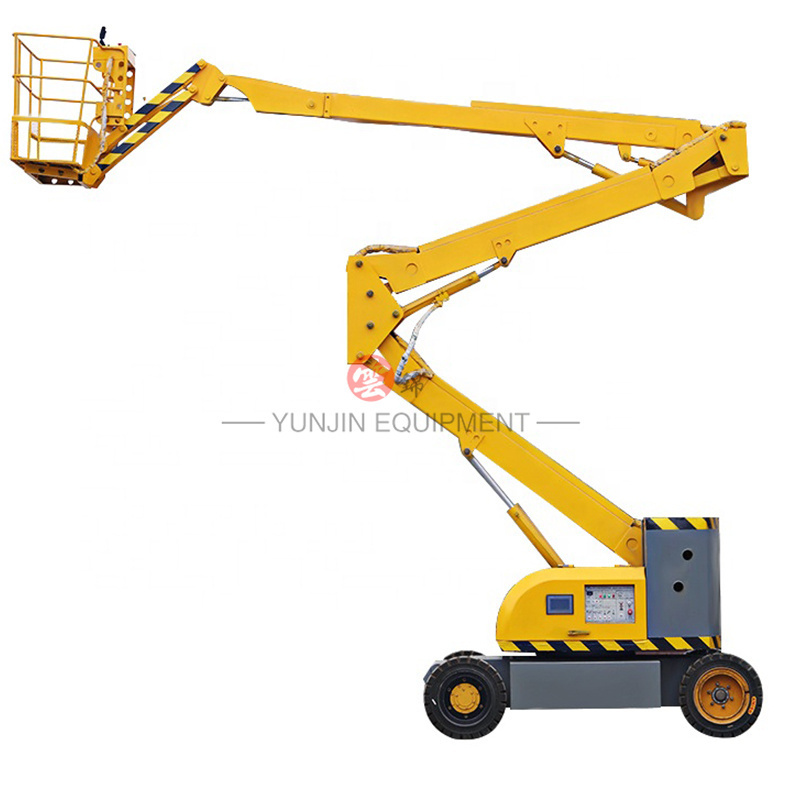

Self -Propelled boom Lift
The self-propelled boom lift table is applicable to a variety of scenes and is widely used, such as plant construction and maintenance, plant equipment maintenance, outdoor decoration, outdoor street lamp maintenance, etc. self propelled boom lift table
can cross obstacles for high-altitude operation. When the platform is lifted to any position, it works while walking, with compact structure and flexible steering. The width of its site can ensure that the equipment enters the narrow channel and crowded working area.
WE have the lifting height 8m, 10m, 12m , 14m，16m, 18m , 20m 22m 24m 26m 28m 30m for your choose!
Products Details
Performance Characteristics
2. The storage height is 2 meters, which is easy to pass through the doorway.
3. Compact rotation radius and width, allowing work in crowded sites
4. Platform full proportion control
5. Platform loading and unloading restrictions improve safety
6. Two people work with tools at the same time
7. Single handle smooth proportional control of all actions
8. Two wheel or four-wheel drive (solid tire or crawler type can be selected)
9. With fast lifting speed and zero swing at the tail, it is suitable for construction in places with limited space
10. Durable, reliable and easy to maintain
Product Paramenters
|
Model
|
Platform Height
|
Loading Capacity
|
Platform size
mm |
Overall Dimension mm
|
Maximum working radius m
|
Self-weight
kg |
|
QB0.23-8
|
8
|
230kg
|
1500*650
|
5200*1650*2350
|
5.3
|
4900
|
|
QB0.23-10
|
10
|
230kg
|
1500*650
|
5500*1650*2350
|
5.8
|
5800
|
|
QB0.23-12
|
12
|
230kg
|
1530*780
|
6300*1780*2350
|
6.9
|
6596
|
|
QB0.23-14
|
14
|
230kg
|
1530*780
|
7000*1930*2350
|
8
|
6900
|
|
QB0.23-16
|
16
|
230kg
|
1880*780
|
7180*2180*2200
|
8.9
|
8550
|
|
QB0.23-18
|
18
|
230kg
|
1880*780
|
8350*2200*2630
|
10.6
|
9200
|
|
QB0.23-20
|
20
|
230kg
|
1880*780
|
8860*2250*2530
|
11.7
|
11000
|
|
QB0.23-22
|
22
|
230kg
|
1880*850
|
11200*2400*3200
|
12.2
|
13200
|
|
QB0.2-24
|
24
|
200kg
|
1880*850
|
9900*2600*2900
|
12.5
|
14200
|
|
QB0.2-26
|
26
|
200kg
|
1880*850
|
11500*2800*3200
|
12.8
|
16200
|
|
QB0.2-28
|
28
|
200kg
|
1880*850
|
12300*2800*3200
|
13.2
|
18200
|
|
QB0.2-30
|
30
|
200kg
|
1880*850
|
12800*2800*3300
|
13.6
|
21000
|
Packing & Delivery
It is can be load into container , suitable for by sea.
