Quick Details
-
Place of Origin:
-
Henan, China
-
Product Name:
-
Brushless DC Motor
-
Motor size:
-
86mm
-
Rated Voltage:
-
12v24v36V48V 220V 310V dc
-
Number of poles:
-
8 Pole
-
Material:
-
Metal
-
Shaft type:
-
Optical axis
-
Rated torque:
-
0.2-1N.m
-
Rated speed:
-
1000Rpm-5000Rpm
-
Installation method:
-
Vertical / round / square
-
Ambient temperature:
-
-45°C-+65°C
Quick Details
-
Speed(RPM):
-
1000-5000r
-
Continuous Current(A):
-
0.004-11.4A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Henan, China
-
Product Name:
-
Brushless DC Motor
-
Motor size:
-
86mm
-
Rated Voltage:
-
12v24v36V48V 220V 310V dc
-
Number of poles:
-
8 Pole
-
Material:
-
Metal
-
Shaft type:
-
Optical axis
-
Rated torque:
-
0.2-1N.m
-
Rated speed:
-
1000Rpm-5000Rpm
-
Installation method:
-
Vertical / round / square
-
Ambient temperature:
-
-45°C-+65°C

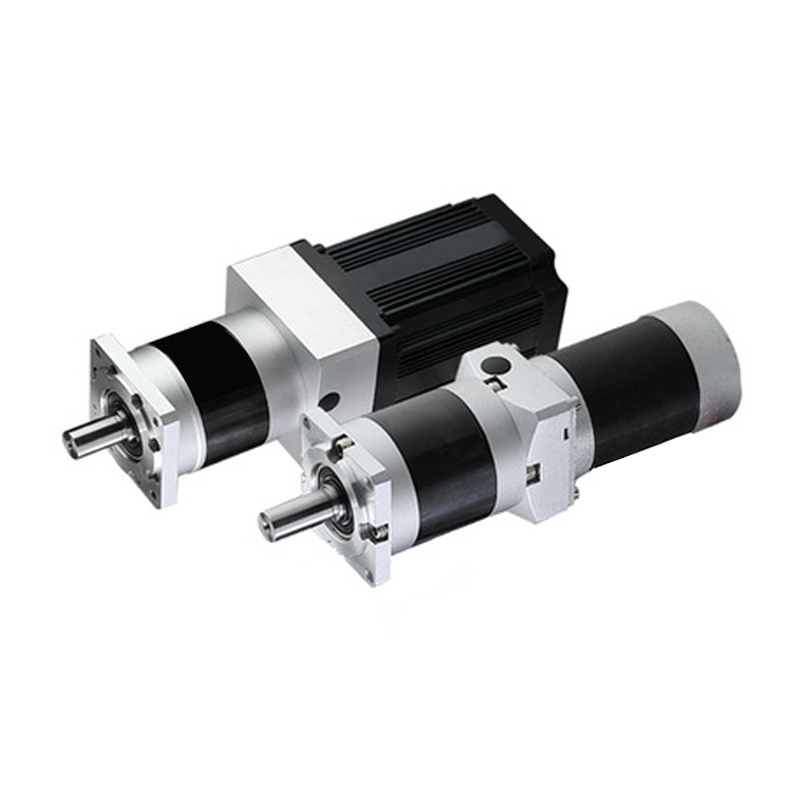

500kg load capacity AGV DC geared motor low speed high torque
We can provide the complete motors and gearboxes,
only provide your requirements(voltage, power, speed ratio,size and torque)
we will recommend a suitable DC motor with gearbox to you.
Product parameters:
| Positioning trigger | 120/240 degree three-phase DC brushless motor |
| Built-in square wave HALL sensor, power supply <+9V, maximum current consumption 12mA | |
| Number of poles | 8 Pole |
| Rated voltage | DC24V/36V/48V/160V310V AC110V/220V |
| Rated torque | 0.003-2.1N.m |
| Positioning torque | Rated torque *0.2 |
| Peak torque | Rated torque*3.5 |
| Continuous stall torque | Rated torque *1.2 |
| Rated speed | 1000Rpm-5000Rpm |
| No-load speed | Rated speed *1.25 |
| Insulation grade | Class B · Noise: <50 dB |
| Wiring | 300mm rear/side outlet (order specification) |
| Machine efficiency | Up to 85% |
| Warm rise | <60K |
| Installation method | Vertical / round / square |
| Ambient temperature | -45°C-+65°C |
| Working humidity | <85% (20+/-5°C) |
Product parameters:
| Model |
Rated Voltage V |
Rated Current A |
Rated Power W |
Rated Torque N.m | Peak torque N.m | Rated Speed rpm | Length mm | Mass KG |
| 80BL100-430 | 48 | 7 | 251 | 0.8 | 2.4 | 3000 | 105 | 1.6 |
| 80BL120-430 | 48 | 10.5 | 377 | 1.2 | 3.6 | 3000 | 125 | 2.5 |
| 80BL140-430 | 48 | 14 | 502 | 1.6 | 4.8 | 3000 | 145 | 3 |
| 80BL100-640 | 310 | 1.4 | 335 | 0.8 | 2.4 | 4000 | 105 | 1.6 |
| 80BL120-640 | 310 | 2.2 | 502 | 1.2 | 3.6 | 4000 | 125 | 2.5 |
| 80BL140-640 | 310 | 2.9 | 669 | 1.6 | 4.8 | 4000 | 145 | 3 |
Note: We are factory direct for sale. OEM/ODM is available. Above are only some typical models.
For more information or a customized motor, Please contact us.
Customizable accessories: motor length, shaft, voltage, power, rated speed and so on.
Installation drawing:
Application:
welding machine, electrical household, diamond machinery, office intelligent equipment, hotel leisure, antomated machine and so on.
Motor Voltage: DC12V, 24V,42V,48V,90V,110V ,300V
Motor Rated Power:15W, 25W,30W,45W,65W, 95W,120W,50W,180W
Motor no-load Speed:15RPM, 30RPM,60RPM,80RM,120RPM,150RPM,180RPM,200RPM,220RPM.
Packaging Details
1.Inside :Plastic bags with Chemical Desiccant For Gear Housing
2.Middle :Individual Carton packaging
3. Outside :Wooden Box
