Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
PW219
-
Max. Working Pressure:
-
60 Mpa
-
IP level:
-
IP66
-
Product name:
-
pump electronic pressure switch
-
Pressure range:
-
-0.1 MPa...0kPa~10kPa...1 00MPa
-
Accuracy:
-
0.1% (custom), 0.25% (typical), 0.5% (maximum)
-
Long-term stability:
-
±0.1%FS/year (typical), ±0.2%FS/year (maximum)
-
Power supply:
-
12~ 30V
-
Live display:
-
4-digit LED or LCD
-
Working temperature:
-
-40°C~80°C
-
Setting range:
-
Lower limit or Upper limit
-
Diaphragm material:
-
316L stainless steel or 304SS (default)
-
Keywords:
-
smart pressure switch
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
12V~30VDC
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
PW219
-
Max. Working Pressure:
-
60 Mpa
-
IP level:
-
IP66
-
Product name:
-
pump electronic pressure switch
-
Pressure range:
-
-0.1 MPa...0kPa~10kPa...1 00MPa
-
Accuracy:
-
0.1% (custom), 0.25% (typical), 0.5% (maximum)
-
Long-term stability:
-
±0.1%FS/year (typical), ±0.2%FS/year (maximum)
-
Power supply:
-
12~ 30V
-
Live display:
-
4-digit LED or LCD
-
Working temperature:
-
-40°C~80°C
-
Setting range:
-
Lower limit or Upper limit
-
Diaphragm material:
-
316L stainless steel or 304SS (default)
-
Keywords:
-
smart pressure switch

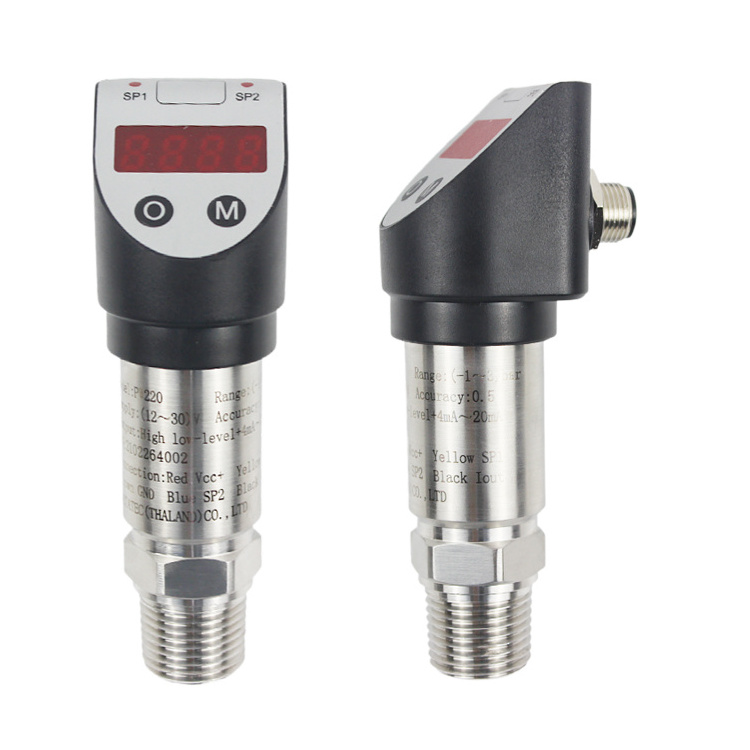

PW219 series pressure switch is a measurement and control component integrating pressure measurement and
control. This series of products mainly use silicon piezoresistive pressure sensors as the pressure sensitive core, and
can also be equipped with pressure sensors such as ceramic capacitors, sapphire, and sputtering films. After
programmable digital circuit correction and signal conditioning, they can output standard industrial application
signals and switches. quantity signal. Depending on the mode of use, the product can output 1 to 4 sets of
switching signals, which can control up to 4 pressure points. Customers can freely set the switch point according to
their needs.
PW219 series pressure switch faitfully serves various fluid measurement industries with its excellent performance.
Especially in water treatment, power, medicine, and other industries, it has good adaptability and application
advantages.
|
Range
|
-0.1 MPa...0kPa~10kPa...1 00MPa
|
Maximum power
|
Consumption < 3W
|
||
|
Overload capability
|
Below 10MPa≤2 times full scale, 10MPa and above≤1.5 times full scale
|
Switch life
|
>1million times
|
||
|
Pressure Type
|
gauge pressure, absolute pressure, sealed gauge pressure
|
Switch current
|
1.2A (maximum)
|
||
|
Accuracy
|
0.1% (custom), 0.25% (typical), 0.5% (maximum)
|
Switch response
|
< 100ms
|
||
|
Long-term stability
|
±0.1%FS/year (typical), ±0.2%FS/year (maximum)
|
Switch delay
|
0s ～ 180s
|
||
|
Zero temperature drift
|
±0.03%FS/°C (s1 00kPa), ±0.02%FS/°C (>100kPa)
|
Ambient temperature
|
-30°C~70 °C
|
||
|
Sensitivity temperature drift
|
±0.03%FS/°C (s1 00kPa), ±0.02%FS/°C (>100kPa)
|
Medium temperature
|
-40℃～85℃
|
||
|
Compensation temperature
|
0°C~50°C(≤100kPa), -10°C~ 70°C(> 100kPa)
|
Relative humidity
|
0~80%
|
||
|
Working temperature
|
-40°C~80°C
|
Pressure sensitive fifilm
|
316L stainless steel
|
||
|
Power supply
|
12~ 30V
|
|
|
||
|
Live display
|
4-digit LED or LCD
|
|
|
||
|
Output Signal
|
Relay contact
|
|
|
||
|
Setting range
|
Lower limit: 0 to the lowest value of the upper limit;
Upper limit: the highest value of the lower limit to the highest value of the upper limit
|
|
|
||
|
limit Protection level
|
IP66
|
|
|
||
Packing&Shipping
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4. Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales03(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848452889
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4. Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales03(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848452889
The specific price is subject to the parameters, please contact us for the quotation.
