Quick Details
-
Voltage:
-
380V/3Phase/50Hz
-
Disc Dia.:
-
None
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX-2-3
-
Warranty:
-
1 year
Quick Details
-
Power:
-
8.7KW
-
External Size:
-
7550*3550*3200mm (L*W*H)
-
Internal Size:
-
6300*3450*2800mm (L*W*H)
-
Voltage:
-
380V/3Phase/50Hz
-
Disc Dia.:
-
None
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX-2-3
-
Warranty:
-
1 year
Products Description
|

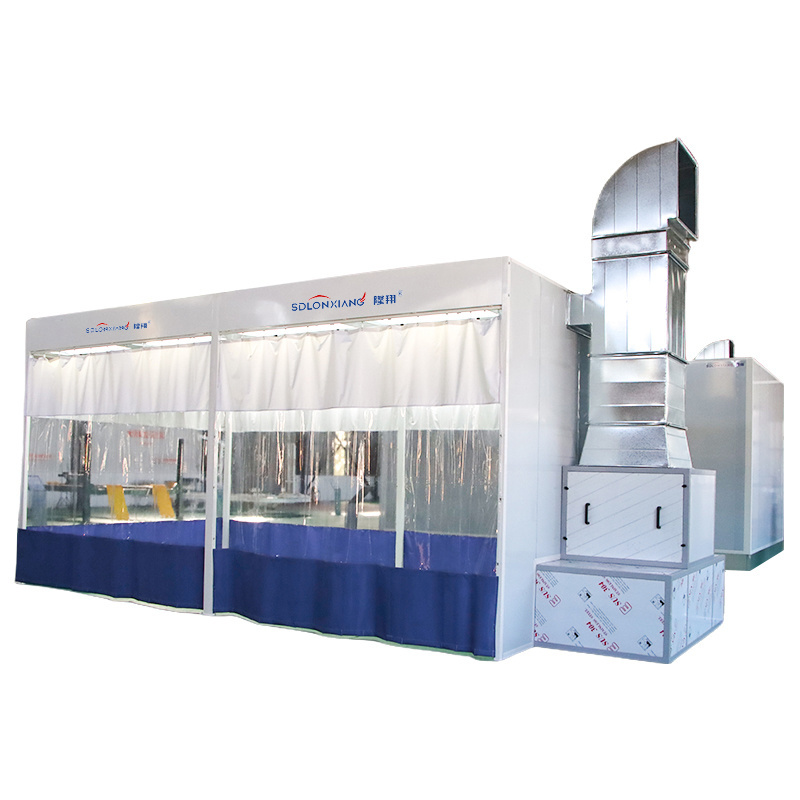

LX-2-3
|
|
|
|
|
||||
|
Inside size
|
|
6300×3450×2800mm (L*W*H)
|
|
|
||||
|
Outside Size
|
|
7550×3550×3200mm (L*W*H)
|
|
|
||||
|
Ceiling system
|
|
6400×3550×380mm (L×W×H),There are lights on both sides, two -thirds of the top of the top are equipped with filter cotton, and one
-third of the rear side is equipped with sealing board; |
|
|
||||
|
Generator Setting Type
|
|
Rear Exhaust,The air outbox is made of the steel plate of the spraying profile and the external protective film, which improves the anti -corrosion and rust resistance and extend the service life.
|
|
|
||||
|
Exhaust air system
|
|
The size of the cabinet is 2290 × 1200 × 1800mm (L × W × H), and the oversized fans can fully meet the needs of the polishing room exhaust; with a 7.5kW YDW series fan exhaust, the air volume is 20000m³/h, the volume is small, the air volume is large, the air volume is large, the air volume is large, and the air volume is large. Low noise and small vibration; heat -resistant moisture and durability. Electric damper control displacement exhaust volume.
|
|
|
||||
|
Seal Type
|
|
Back side set 50mm EPS, other 3 sides with PVC soft curtain,The color of the curtain: white, transparent in the middle, blue below.
|
|
|
||||
|
Ceiling Installation
|
|
Steel rope hanging or steel pole supporting the roof(Option).
|
|
|
||||
|
Filtering System
|
|
G2 level, filtering effect> 83%, which is the production of Italian technology, effectively capture dust particles greater than
10um, EU5 level efficient filtering, which is produced by Dutch technology.effectively capture dust particles greater than 4um, filtering effect≥ 99% Filtering cotton bracket, convenient for changing filter cotton, multi -layer glass fiber cotton, filtering effect> 70%, adsorbing dust and particulate matter in the paint fog. |
|
|
||||
|
Lighting System
|
|
8pcs*4units*16w LED lighting .Galvanized plate spraying light box shell, 3C quality certification tempered glass high
-transmitting panel. |
|
|
||||
|
Control System
|
|
Fan switch,lighting,air damper.
|
|
|
||||
|
Voltage and Frequency
|
|
380V,3Phase,50HZ
|
|
|
||||
|
Total Power
|
|
8.7 KW
|
|
|
||||
