Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Luohe Tian Shun Refrigeration Equipment Co.,Ltd
-
Model Number:
-
TJpanel-0516
-
Recommend thickness of steel plate:
-
0.4~0.8mm
-
PURFlammability Class of PUR:
-
B2/B3
-
PIRFlammability Class of PUR:
-
B1/B2
-
Density of PUR:
-
38~45KG/m³
-
Density of PIR:
-
45~55KG/m³
-
Compressive strength (MPa):
-
≥0.20
-
Standing color:
-
Whtie, gary,silver,blue,red,orange,and so on
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Luohe Tian Shun Refrigeration Equipment Co.,Ltd
-
Model Number:
-
TJpanel-0516
-
Recommend thickness of steel plate:
-
0.4~0.8mm
-
PURFlammability Class of PUR:
-
B2/B3
-
PIRFlammability Class of PUR:
-
B1/B2
-
Density of PUR:
-
38~45KG/m³
-
Density of PIR:
-
45~55KG/m³
-
Compressive strength (MPa):
-
≥0.20
-
Standing color:
-
Whtie, gary,silver,blue,red,orange,and so on
sandwich panels

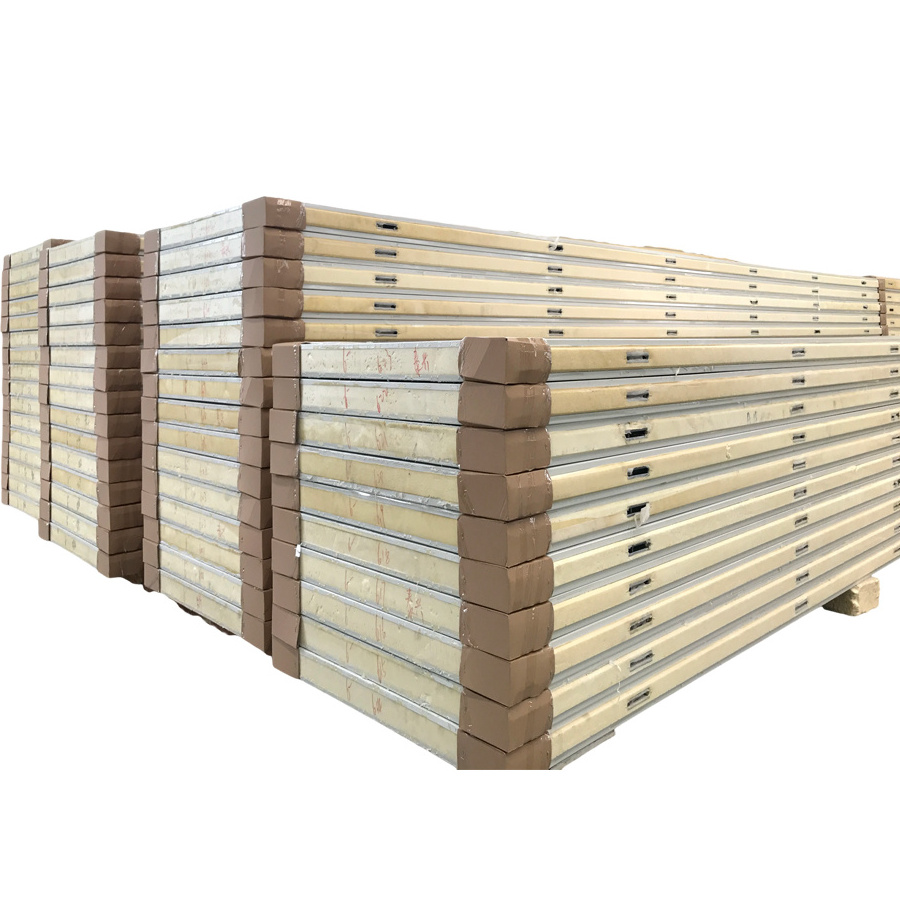

sandwich eps panel Polyurethane Foam PUR PIR Cold Room Storage Warehouse Insulation Sandwich Panels/boards
| Core Thickness | 50mm 75mm 100mm 120mm 150mm 180mm 200mm | |
| Density of core | 38-45kg/m3 | |
| Steel Plate Thickness | 0.4-0.8mm | |
| Metal Sheet | Color Coated Steel Sheet / Stainless steel plate | |
| Galvanized layer of steel plates | Exterior plate and Inner plate: Aluzinc or Zinc coating | |
| Panel Length | According to customers’ request | |
| Width | 1000mm / 1120/1130mm |
Wall Panels Parameter:
| Core Thickness | 50mm 75mm 100mm 120mm 150mm 180mm 200mm | |
| Density of core | 38-45kg/m3 | |
| Steel Plate Thickness | 0.4-0.8mm | |
| Metal Sheet | Color Coated Steel Sheet / Stainless steel plate | |
| Galvanized layer of steel plates | Exterior plate and Inner plate: Aluzinc or Zinc coating | |
| Panel Length | According to customers’ request | |
| Width | 1000mm |
PUR Corrugated Roof Panels:
| Core Thickness | 50mm 75mm 100mm 120mm 150mm 180mm 200mm | |
| Density of core | 38-45kg/m3 | |
| Steel Plate Thickness | 0.4-0.8mm | |
| Metal Sheet | Color Coated Steel Sheet | |
| Galvanized layer of steel plates | Exterior plate and Inner plate: Aluzinc or Zinc coating | |
| Panel Length | According to customers’ request | |
| Width | 1000mm |
