POWTECH is a high-tech enterprise who specialzes in manfuacturing electric transmission, distribution and telecom line materials like: ABC clamp, piercing insulation connector, insulators, surge arresters, dropout fuse, isolation switch, preformed guy grips, stainless steel banding, FTTH fittings, PLC splitter, patch cord, cross arm, stay wire and all transmission line fittings. Since our establishment in 1994, we dedicated ourselves to serve our partner with one-stop service, professional service, quality product, factory acceptance test, installation training, onsite guide and many value-added services.
After more than 20years' development, we are certified by ISO9001, ISO14001, SGS, FCC, CE, RoHS and by customer-appointed lab test suthorities etc.
With the belief, there's no small or big customer, every customer deserve good srevice. We are willing to support all of our customers grow and prosper.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Suspension Clamp with Bracket for ABC cable
-
Material:
-
Plastic , Aluminum
-
Application:
-
Hanging ABC Cable
-
cable range:
-
25-95mm2 50-120mm2
-
Certificate:
-
ISO9001
-
Usage:
-
Electrical Cable Fitting
-
Type:
-
Supporting
-
Sample:
-
Availble
-
OEM:
-
acceptable
-
Tension Load:
-
10-18kN
Quick Details
-
Brand Name:
-
Powtech
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
YRCS14
-
Product name:
-
Suspension Clamp with Bracket for ABC cable
-
Material:
-
Plastic , Aluminum
-
Application:
-
Hanging ABC Cable
-
cable range:
-
25-95mm2 50-120mm2
-
Certificate:
-
ISO9001
-
Usage:
-
Electrical Cable Fitting
-
Type:
-
Supporting
-
Sample:
-
Availble
-
OEM:
-
acceptable
-
Tension Load:
-
10-18kN
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
Powtech
|
|
Model Number
|
YRCS14
|
|
Product name
|
Suspension Clamp with Bracket for ABC cable
|
|
Material
|
Plastic , Aluminum
|
|
Application
|
Hanging ABC Cable
|
|
cable range
|
25-95mm2 50-120mm2
|
|
Certificate
|
ISO9001
|
|
Usage
|
Electrical Cable Fitting
|
|
Type
|
Supporting
|
|
Sample
|
Availble
|
|
OEM
|
acceptable
|
|
Tension Load
|
10-18kN
|
Products Description

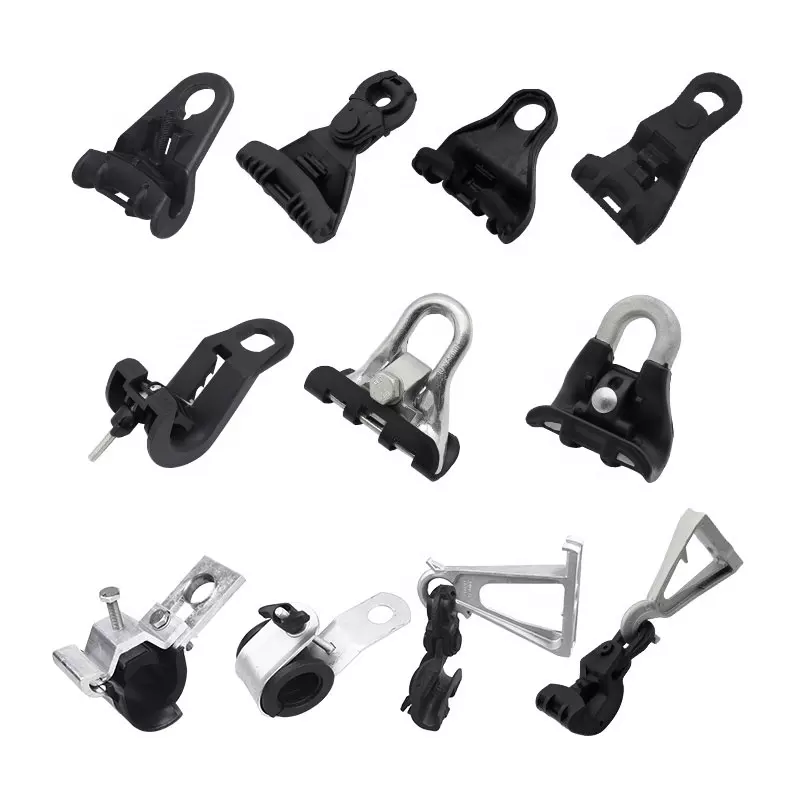

Suspension clamp
Suspension clamp for abc cable is used for suspension LV insulated aerial cable (ABC) or Insulated Neutral Messenger conductors size from 16mm2 to 95mm2 in straight and at angles.It is consists of a body,movable link and adjustable lock.The standard application is to support and suspend the conductor and to provide service connection by tapping main line.The application angle is ≤50 degree.It can be used with the pigtail bolt and bracket.The installation is very easy and convenient.
Materials of ABC suspension clamp
Body : UV and weather resistant, high strength engineering-plastic.
Movable Link : UV and weather resistant, high strength engineering-plastic.
Lock : UV resistant, high strength engineering-plastic
Materials of ABC suspension clamp
Body : UV and weather resistant, high strength engineering-plastic.
Movable Link : UV and weather resistant, high strength engineering-plastic.
Lock : UV resistant, high strength engineering-plastic
Technical Data
Packing & Delivery
Plywood Box or as per customer's request
Application
