Quick Details
-
Model Number:
-
TS-GM1
-
Max. Current:
-
16A, 16A
-
IP level:
-
/
-
Full time range:
-
24 hours
-
Mounting:
-
DIN rail
-
Guarantee:
-
18 Months
-
Certification:
-
CE
-
Frequency:
-
45~60 Hz
Quick Details
-
Max. Voltage:
-
240VAC, 85-250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
TS-GM1
-
Max. Current:
-
16A, 16A
-
IP level:
-
/
-
Full time range:
-
24 hours
-
Mounting:
-
DIN rail
-
Guarantee:
-
18 Months
-
Certification:
-
CE
-
Frequency:
-
45~60 Hz
···········This link price is only for
TS-GM1
···········

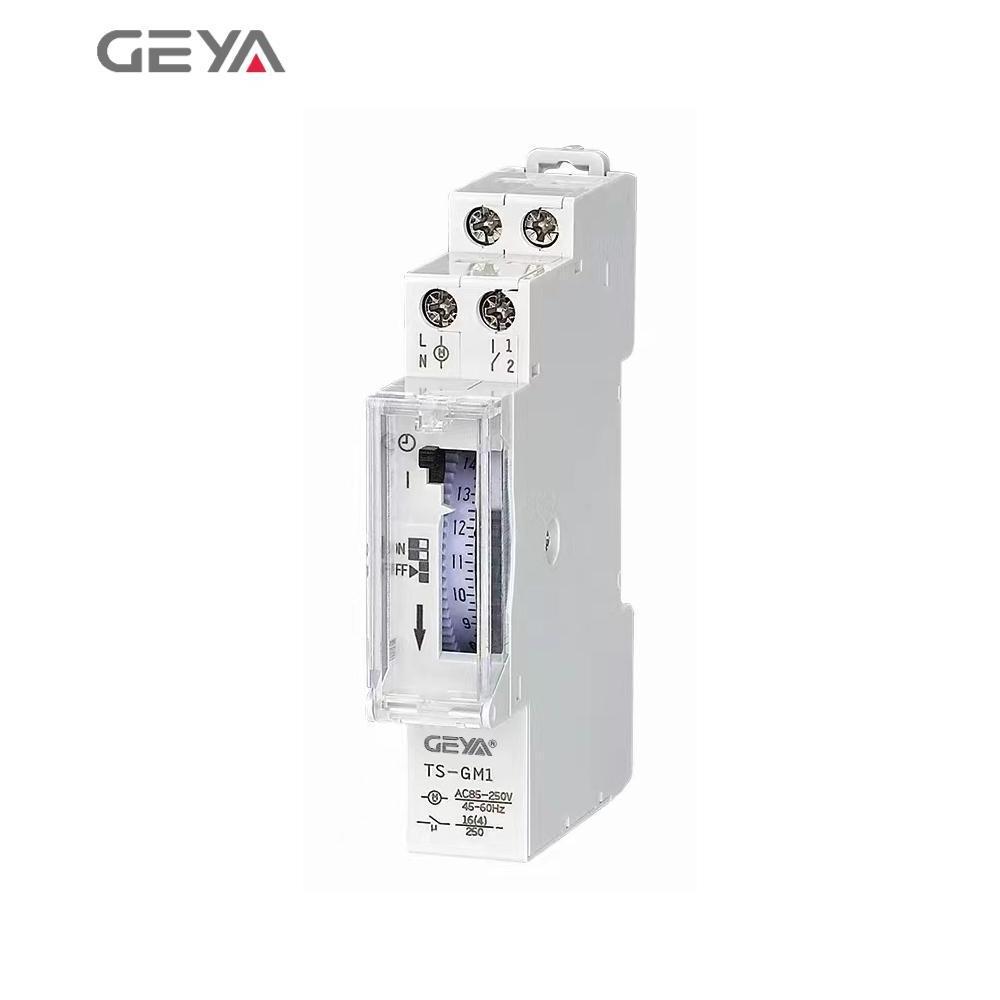

Product Description
The products according to the time set by the user,automatically turn on and turn off the vaariety ofelectrical equipment Control object can light boxes ,neon signs,production equipment,agriculture,aquaculture,warehouse exhaust dehumidifeier autonatically preheat optimal control products,suchas radio and television equipment.
Specification
|
Item No.
|
TS-GM1
|
TS-GM1N
|
|
|
Indicator light
|
NO
|
YES
|
|
|
Operating Voltage
|
85~250VAC
|
|
|
|
Frequency
|
45~60 Hz
|
|
|
|
Number of channels
|
1
|
|
|
|
Width
|
18mm
|
|
|
|
Installation method Type
|
DIN rail
|
|
|
|
Type Of connection
|
Screw Terminals
|
|
|
|
Drive
|
Quartz-contorolled stepper motor
|
|
|
|
Program
|
Daily program
|
|
|
|
Power reserve
|
3 days
|
|
|
|
Switching capacity
|
250V Ac,Cosφ=116A
250V Ac,Cosφ=0.64A |
|
|
|
Incandescent/Halogen lamp load
|
1000W
|
|
|
|
Shortest switching times
|
15' 15''
|
|
|
|
Type of contact
|
No contact
|
|
|
|
Number of switching segments
|
96
|
|
|
|
Stand-by consumption
|
~0.5W
|
|
|
|
Type of protection
|
IP20
|
|
|
|
Protection class
|
ll acording to EN 60730-1
|
|
|
|
Ambient temperature
|
-10℃ ～+50℃
|
|
|
