Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TYTION
-
Power:
-
5.5kw
-
Weight:
-
650 kg
-
Product name:
-
Dry Mix Concrete Shotcrete Machine for Sale
-
Application:
-
Construction Engineering
-
Capacity:
-
5-9 m³/h
-
Keyword:
-
Shotcrete Machine for Sale
-
Color:
-
Customised
-
Usage:
-
Building Project
-
Working pressure:
-
0.2-0.8 mpa
-
Motor power:
-
5.5 kw
-
Motor type:
-
Electric, diesel
-
Aggregate size:
-
20 mm
Quick Details
-
Max. Conveying Distance:
-
30/20m
-
Max Aggregate Size:
-
15
-
Hose Inner Diameter:
-
51 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TYTION
-
Power:
-
5.5kw
-
Weight:
-
650 kg
-
Product name:
-
Dry Mix Concrete Shotcrete Machine for Sale
-
Application:
-
Construction Engineering
-
Capacity:
-
5-9 m³/h
-
Keyword:
-
Shotcrete Machine for Sale
-
Color:
-
Customised
-
Usage:
-
Building Project
-
Working pressure:
-
0.2-0.8 mpa
-
Motor power:
-
5.5 kw
-
Motor type:
-
Electric, diesel
-
Aggregate size:
-
20 mm
Product Description

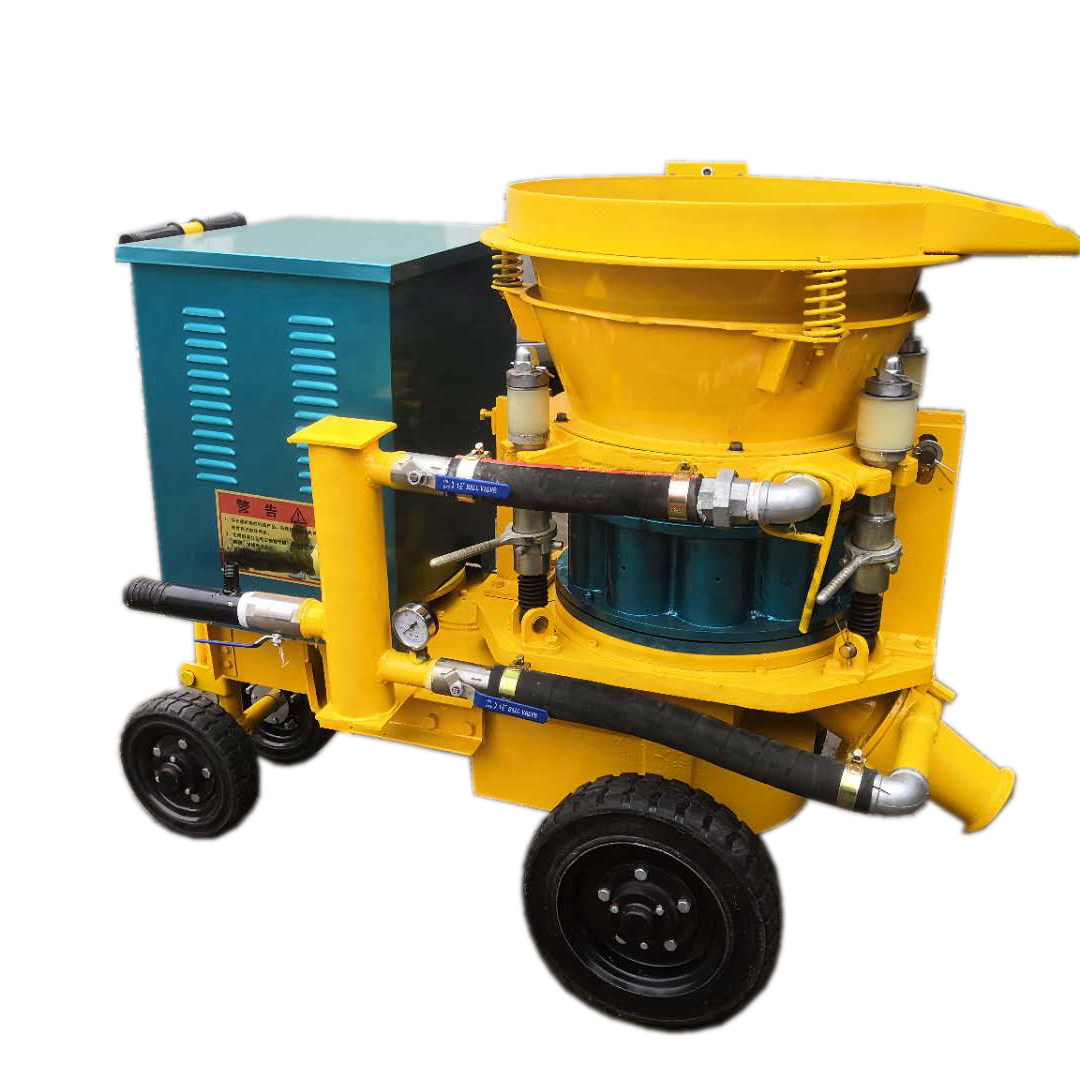

Information of Concrete Shotcrete Spraying Machine:
Concrete shotcrete spraying machine is wet sprayer series, it is a new type of high efficient concrete spraying machine, which is mainly used for wet spraying of concrete. Wet spraying can make the mixture mix evenly, the water cement ratio can be accurately controlled, which is conducive to the hydration of water and cement, so the dust is small, the rebound is small, the homogeneity of concrete is good, and the strength is high. It has the characteristics of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, long service life, etc. It is suitable for shotcrete construction of roadway in high marsh mine.
Parameters of concrete Shotcrete Spraying Machine:
|
Parameters of the technology
|
SP-6
|
SP-7
|
|
Throughput
|
6 m3/h
|
7 m3/h
|
|
Maximum conveying distance
|
30/20m
|
30/20m
|
|
Water cement ratio of suitable materials
|
0.20 -0.40
|
0.20 -0.40
|
|
Maximum aggregate size
|
Ф 15 mm
|
Ф 15 mm
|
|
Inner diameter of conveying pipe
|
Ф 15 mm
|
Ф 15 mm
|
|
Conveying working pressure
|
0.2-0.4 MPa
|
0.4-0.6 MPa
|
|
Gas Consumption for Feeding
|
10 m3/min
|
12 m3/min
|
|
Charging height
|
1.1 m
|
1.1 m
|
|
Rotor speed
|
11 r/min
|
11 r/min
|
|
power
|
5.5 Kw
|
7.5 Kw
|
|
weight
|
650Kg
|
800Kg
|
Structure and Operation of Concrete
Shotcrete
Spraying Machine:
The structure and working principle of concrete shotcrete spraying machine: the mixing material is discharged into the vibrating hopper by the mixing material mixer's discharge port (or artificial mixture and charging), and the sieve is fed into the jet feeder hopper through the screen. The material can be stirred into the straight through chamber of the rotor and rotated to the discharge port with the rotor, and the material is sent to the cyclone through the compressed air of the air chamber through the rotor. Here, another wind is introduced by the hydrocyclone, and the material is dispersed, accelerated, rotated, floated and entered into the feeding pipe in a multi-head wind spiral state. A small amount of supplementary water is added to the nozzle to spray out.
Use and Operation:
concrete spraying machine has two functions of tidal spraying and wet spraying. Before using it, the operator must read the Instructions for Use carefully and be familiar with the structure and operation rules of the machine before going on duty.
Matters needing attention:
1. The pneumatic accelerator pump is powered by compressed air. Proper lubrication can make the pump run more stable and prolong the service life of the pump.
2. To ensure the cleanliness of compressed air and the wear of dirty gas valve, it is recommended to install pneumatic triple parts.
Use and Operation:
concrete spraying machine has two functions of tidal spraying and wet spraying. Before using it, the operator must read the Instructions for Use carefully and be familiar with the structure and operation rules of the machine before going on duty.
Matters needing attention:
1. The pneumatic accelerator pump is powered by compressed air. Proper lubrication can make the pump run more stable and prolong the service life of the pump.
2. To ensure the cleanliness of compressed air and the wear of dirty gas valve, it is recommended to install pneumatic triple parts.
3. Switch on and off slowly to reduce the impact on the pipeline and diaphragm, check whether the pipeline connection is loose before starting.
Vulnerable part
Accessories
Our Company
FAQ
FAQ
Q: Are you original manufacturer?
A: Yes, Henan Tytion Machinery Co., Ltd was established in 2003.
Q: Which payment terms are available to us?
A: T/T term or L/C term.
A: Yes, Henan Tytion Machinery Co., Ltd was established in 2003.
Q: Which payment terms are available to us?
A: T/T term or L/C term.
On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.
On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms 2010 terms can we work?
A: Henan Tytion Machinery is a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 5-10 days to produce the ordered machines.
Q: How about your sales performance in China?
A: We have more than 1500 active customers in China. The leading market share of same function products in domestic fields.
Q: Which Incoterms 2010 terms can we work?
A: Henan Tytion Machinery is a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 5-10 days to produce the ordered machines.
Q: How about your sales performance in China?
A: We have more than 1500 active customers in China. The leading market share of same function products in domestic fields.
