Quick Details
-
Model Number:
-
Fixed Single
-
Color:
-
Yellow, silver, red, others
-
Advantages:
-
LED/LCD display + infrared sound and light alarm
-
Battery:
-
DC24V/36V±10%
-
Alarm method:
-
Light&sound&vibration&display
-
Feature:
-
timely reminder, three-wire system/four-wire system
-
Function:
-
Emergency Alert
-
Working Environment:
-
Temperature(-40~55)℃
Quick Details
-
Type:
-
Fixed Gas detector, Fixed Single Gas Detector
-
Place of Origin:
-
Ningxia, China
-
Brand Name:
-
Norktest, Brand Name
-
Model Number:
-
Fixed Single
-
Color:
-
Yellow, silver, red, others
-
Advantages:
-
LED/LCD display + infrared sound and light alarm
-
Battery:
-
DC24V/36V±10%
-
Alarm method:
-
Light&sound&vibration&display
-
Feature:
-
timely reminder, three-wire system/four-wire system
-
Function:
-
Emergency Alert
-
Working Environment:
-
Temperature(-40~55)℃
How To Order?
1. Send Inquiry Or Contact Supplier!
2. In stock! Send out in 7 day, click "Start Order" and pay directly!
(Input quantity, choose your country, then you can see total price)
3. Please do write your Name, Address, Zip code and Phone number for delivery!
1. Send Inquiry Or Contact Supplier!
2. In stock! Send out in 7 day, click "Start Order" and pay directly!
(Input quantity, choose your country, then you can see total price)
3. Please do write your Name, Address, Zip code and Phone number for delivery!
Recommend Products
Products Description

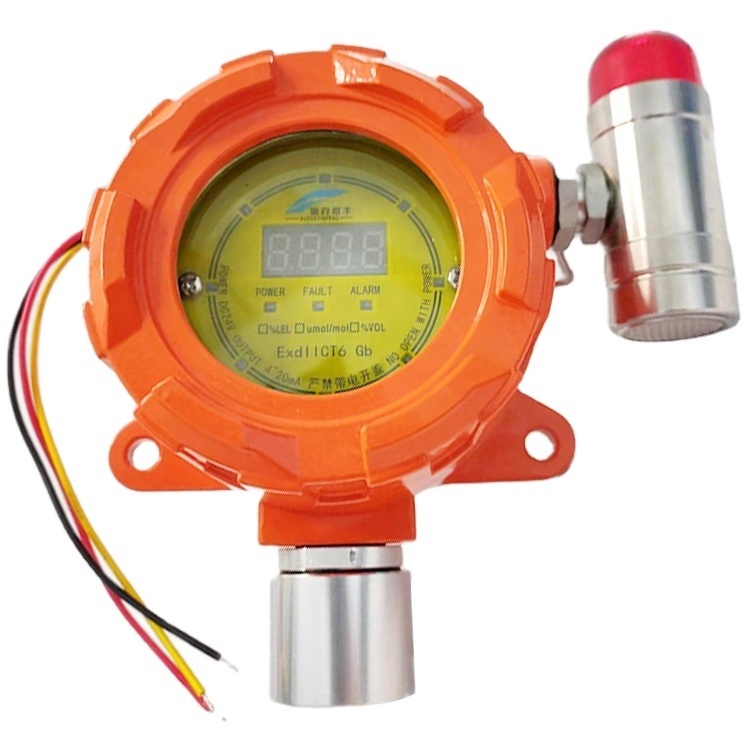

This fixed ethanol gas alarm detector can detect any combustible gas like butane propane acetylene, lpg, natural gas, CNG, the ethanol sensor is with explosion proof shell to collects and detects the gas concentration on the spot, With an optional audible &visual alarm light,when the gas concentration exceed a preset alarm point, the c2h2 detector will make alarm immediately.
Product Parameters
|
Measurable gas
|
combustible gas, toxic and harmful gas
|
|
Product Size
|
183*143*107mm (Display type） 183*43*92mm （No display type)
|
|
Sampling
|
Natural diffusion
|
|
Battery
|
DC24V/36V±10%
|
|
Ambient temperature
|
Temperature -40℃~70℃
|
|
Power
|
12-30V DC
|
|
Output signal (The user can decide as follows according to actual needs)
|
a. Standard three-wire 4-20mA analog signal output
b.Two-wire 4-20mA analog signal output (optional)
c. Relay switch output (optional) d. RS485 bus output (optional)
|
|
Wiring method
|
M20*1.5mm (metric)
|
|
Explosion proof mark
|
Exd IIC T6 Gb
|
|
Working temperature
|
10~55℃
|
|
Battery
|
DC24V/36V±10%
|
|
Alarm method
|
Light/sound
|
● With relay output 10A, can drive ventilator or solenoid valve.
● Monitor gas concentration in open air in the environment.
● Two stage alarm with sound and light
● Explosion proof design, proof grade Ex dII CT6, IP65 water dust proof.
● LED display, Independent acousto-optic alarm, need extra cost $15/pc.
● With zero calibration functions, makes the detection more accurate and reliable.
● With 4-20mA signal output, being compatible with PLC, DCS and other control system.
Detailed Images
Product Size:183*143*107mm (Display type）
183*43*92mm （No display type)
Box Dimension:21*21*12cm
Gross weight:1.8KG
Delivery time:7-10 days
We support customized packaging and single-piece samples, as per customer demand
Multi-gases Choices
|
Measured gas
|
Measuring range
|
Selectable range
|
Resolution
|
|
Combustible Ex
|
0-100%LEL
|
0-100%VOL
|
1%LEL/1%VOL
|
|
Oxygen O2
|
0-30%VOL
|
0-30%、0-100%VOL
|
0.1%VOL
|
|
Hydrogen Sulfide H2S
|
0-100PPM
|
0-50、200、1000PPM
|
0.1/1PPM
|
|
carbon monoxide CO
|
0-1000PPM
|
0-500/2000/5000PPM
|
0.1/1PPM
|
|
nitrogen dioxide NO2
|
0-20PPM
|
0-50、1000PPM
|
0.1/1PPM
|
|
natural gas
|
0-100%LEL
|
0-100%LEL
|
1%LEL
|
|
Nitrogen oxides
|
0-20PPM
|
0-50、1000PPM
|
0.1/1PPM
|
|
Methane CH4
|
0-100%LEL
|
0-100%LEL
|
1%LEL/1%VOL
|
|
carbon dioxide CO2
|
0-5000PPM
|
0-1%、5%、10%VOL
|
1PPM/0.01%VOL
|
|
Nitric oxide NO
|
0-250PPM
|
0-500、1000PPM
|
1PPM
|
|
nitrogen N2
|
0-100%LEL
|
0-100%VOL
|
1%VOL
|
|
Alcohol
|
0-100%LEL
|
0-100%LEL
|
1%LEL/1%VOL
|
|
Sulphur dioxide SO2
|
0-20PPM
|
0-50、1000PPM
|
0.1/1PPM
|
|
Chlorine CL2
|
0-20PPM
|
0-10、100PPM
|
0.1PPM
|
|
Dichlorosilane
|
0-20PPM
|
0-20、100PPM
|
1PPM/0.1PPM
|
|
Ammonia NH3
|
0-100PPM
|
0-50、500、1000PPM
|
0.1/1PPM
|
|
Silicon tetrachloride
|
0-20PPM
|
0-20、100PPM
|
1PPM/0.1PPM
|
|
Hydrogen H2
|
0-100%LEL
|
0-1000PPM
|
1%LEL/1PPM
|
|
Phosphine PH3
|
0-20PPM
|
0-20、0-100PPM
|
0.01/0.1PPM
|
|
Hydrogen chloride HCl
|
0-20PPM
|
0-20、50、100PPM
|
0.01/0.1PPM
|
|
Acrylonitrile
|
0-100PPM
|
0-100PPM
|
1PPM/0.1PPM
|
|
TVOC
|
0-100PPM
|
0-100PPM
|
1PPM/0.1PPM
|
|
CLO2
|
0-50PPM
|
0-10、100PPM
|
0.1PPM
|
|
Hydrogen cyanide HCN
|
0-50PPM
|
0-100PPM
|
0.1/0.01PPM
|
|
Ethylene oxide ETO
|
0-10PPM
|
0-100PPM
|
1PPM/0.1PPM
|
|
Ozone O3
|
0-10PPM
|
0-20、100PPM
|
0.011PPM/0.1PPM
|
|
Formaldehyde CH2O
|
0-20PPM
|
0-50、100PPM
|
1/0.1PPM
|
|
Fluorine gas F2
|
0-10PPM
|
0-1、10PPM
|
1PPM/0.1PPM
|
|
Hydrogen fluoride HF
|
0-10PPM
|
0-1、10、50、100PPM
|
0.01/0.1PPM
|
|
Xylene, Toluene
|
0-20PPM
|
0-5、10、50、100PPM
|
0.01/0.1PPM
|
|
malodor
|
0-100PPM
|
0-100PPM
|
1PPM/0.1PPM
|
