★ HID high rejection quality sheet;
★ Long service life for reducing the cost;
★ High stabilized rejection with realized nominal flux;
★ Sanitary qualified elements;
★ Stringent in-house inspection & testing control.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Carton
-
Weight:
-
11.6kg /pc
-
Productivity:
-
11000 GPD
-
Weight (KG):
-
13 kg
-
RO membrane sheet:
-
HID
-
Membrane wrap material:
-
Fiber Glass
-
Desalination:
-
99.7%
-
Filter:
-
Reverse Osmosis Membrane
-
HS Code:
-
8421999090
-
Application:
-
Waste Water Treatment
-
Function:
-
Water Purification Plant
-
Product name:
-
Seawater Reverse Osmosis RO Membrane 8040
-
Capacity:
-
11000GPD
-
Model:
-
8040
Quick Details
-
Core Components:
-
membrane
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HID
-
Material:
-
Carton
-
Weight:
-
11.6kg /pc
-
Productivity:
-
11000 GPD
-
Weight (KG):
-
13 kg
-
RO membrane sheet:
-
HID
-
Membrane wrap material:
-
Fiber Glass
-
Desalination:
-
99.7%
-
Filter:
-
Reverse Osmosis Membrane
-
HS Code:
-
8421999090
-
Application:
-
Waste Water Treatment
-
Function:
-
Water Purification Plant
-
Product name:
-
Seawater Reverse Osmosis RO Membrane 8040
-
Capacity:
-
11000GPD
-
Model:
-
8040

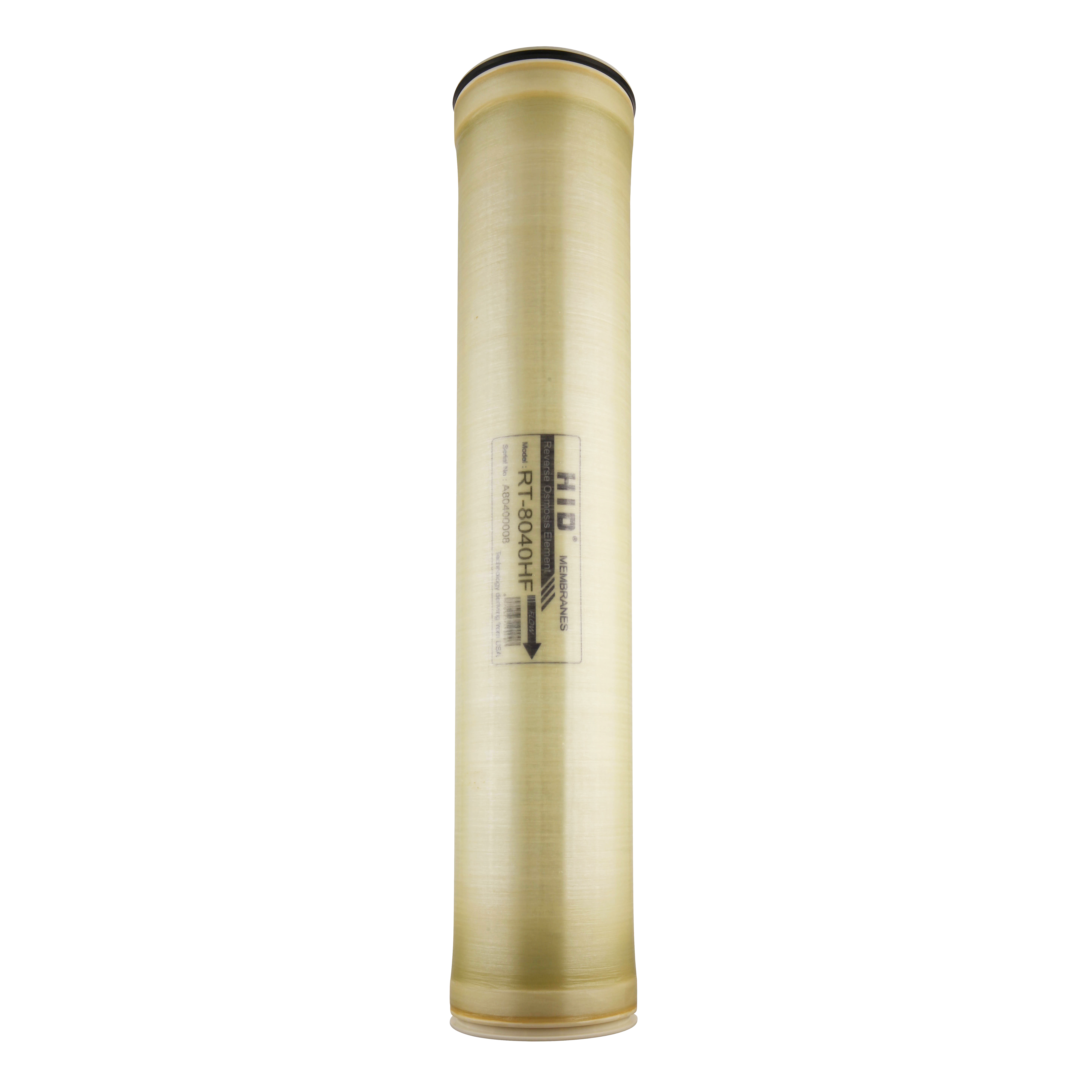

Product Description
8040 series RO membranes are widely used for filtration of tap water, underground water & brackish water; we well serve the industries including commercial drinking / food water treatment, electronics & chemical works, power plant, etc.
★ HID high rejection quality sheet;
★ Long service life for reducing the cost;
★ High stabilized rejection with realized nominal flux;
★ Sanitary qualified elements;
★ Stringent in-house inspection & testing control.
Specification
|
Model No.
|
Feed Spacer thickness (mil)
|
Min. Salt Rejection (%)
|
Stabilized Salt Rejection (%)
|
Permeate Flow Rate (gpd)
|
Test Pressure (PSI)
|
Test water NaCl (PPM)
|
|
TW8-460ULP
|
28
|
98.3
|
98.8
|
12000
|
150
|
1000
|
|
BW8-440XLE
|
31
|
98.5
|
98.9
|
11000
|
150
|
1500
|
|
BW8-400LP
|
31
|
98.6
|
99.2
|
10500
|
225
|
2000
|
|
BW8-380AF
|
34
|
98.7
|
99.2
|
9600
|
225
|
2000
|
1. Permeate flow rate and salt rejection is based on testing conditions: 250C, pH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater
characteristics and operating conditions. 3. Active area guaranteed +/- 3%.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater
characteristics and operating conditions. 3. Active area guaranteed +/- 3%.
|
Model No.
|
Maximum
Operating Temperature
|
Maximum Operating Pressure
|
Feed Water PH Range, continuous operation *
|
Maximum Feed Water Turbidity
|
Maximum Feed Water SDI
|
Chlorine tolerance
|
||||||
|
TW8-460ULP
|
45°C
|
600psig
|
2-11
|
1NTU
|
5
|
<0.1ppm
|
||||||
|
BW8-440XLE
|
45°C
|
600psig
|
2-11
|
1NTU
|
5
|
<0.1ppm
|
||||||
|
BW8-400LP
|
45°C
|
600psig
|
2-11
|
1NTU
|
5
|
<0.1ppm
|
||||||
|
BW8-380AF
|
45°C
|
600psig
|
2-11
|
1NTU
|
5
|
<0.1ppm
|
||||||
|
* for short term cleaning (30 min.): 1-13.
|
|
|
|
|
|
|
||||||
