Capacity:5 tons
Coil inner diameter:450-550mm
Feeding width: max 1220mm
Structure: welded by the steel plates and profiled bar.
The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
24/26 Gauge (0.4-0.6 Mm)
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZTRFM
-
Voltage:
-
380v/50hz/3p (As Requested)
-
Dimension(L*W*H):
-
9.5m*1.65m*1.5m
-
Weight:
-
7500 kg
-
Feeding width:
-
43inch ( 1092mm )
-
Marketing Type:
-
New Product
-
Advantage:
-
Easy installation and operation
-
After-sales Service:
-
Provided Lifetime technical service
-
Local service:
-
Provide Engineers door-to-door service
-
Certification:
-
CE ISO
-
Raw material:
-
PPGI,PPGL
-
Material of rollers:
-
High grade 45# forged steel
-
Forming stations:
-
Roller stations :18 rows
-
Diameter of shafts:
-
80mm solid
-
Material of shafts:
-
High grade 45#,with heat treatment
-
Transmission way:
-
By 1 inch chain (double chains)
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
24/26 Gauge (0.4-0.6 Mm)
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZTRFM
-
Voltage:
-
380v/50hz/3p (As Requested)
-
Dimension(L*W*H):
-
9.5m*1.65m*1.5m
-
Weight:
-
7500 kg
-
Feeding width:
-
43inch ( 1092mm )
-
Marketing Type:
-
New Product
-
Advantage:
-
Easy installation and operation
-
After-sales Service:
-
Provided Lifetime technical service
-
Local service:
-
Provide Engineers door-to-door service
-
Certification:
-
CE ISO
-
Raw material:
-
PPGI,PPGL
-
Material of rollers:
-
High grade 45# forged steel
-
Forming stations:
-
Roller stations :18 rows
-
Diameter of shafts:
-
80mm solid
-
Material of shafts:
-
High grade 45#,with heat treatment
-
Transmission way:
-
By 1 inch chain (double chains)

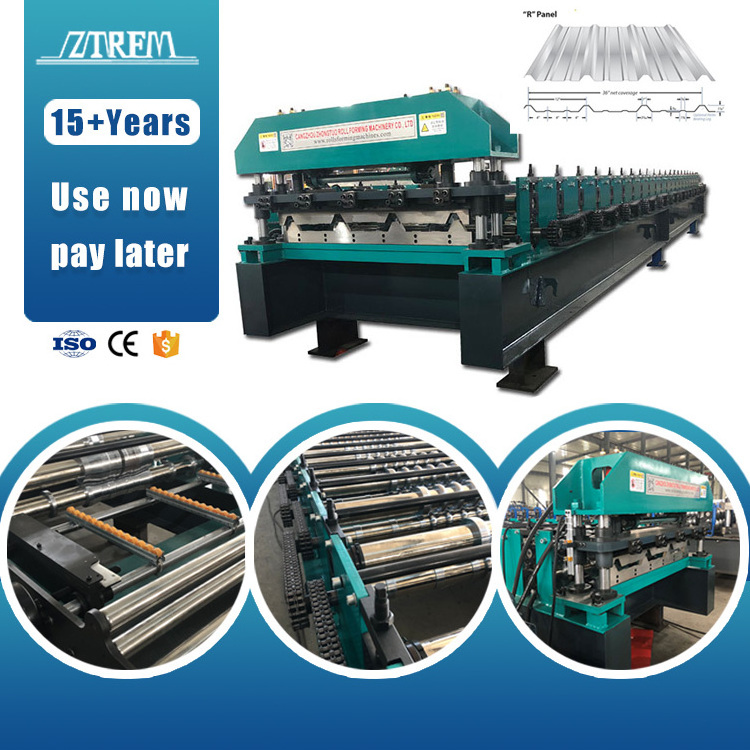

Full Automatic Metal Trapezoid Roof Sheet Making Machine R Panel Roll Forming Machine Hot Sale To America
Design Idea：
Stable Transmission: Double chain and gear drive,keynote rollers design.
Full Automatic Easy Operation
:
Whole producing line just need one person for operation.
Profile drawing for reference:
this type R panel roof sheet very hot sale in US.As we sold many machines to America,we have rich experience on it to confirm the finished product good and suit for market.
Processing Flow
Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving
table
table
|
R Panel Roll Forming Machine Hot Sale To America
|
|
|
|
Raw Material
|
PPGI,PPGL
|
|
|
Raw material
|
Material Thickness:24/26 Gauge （0.4-0.6 Mm)
|
|
|
Machine Frame
|
350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
|
|
|
Material Of Rollers
|
High Grade 45# Forged Steel
|
|
|
Material Of Rollers
|
Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
|
|
|
Forming Stations
|
Roller Stations :18 Rows
|
|
|
|
Rolling Type: Separate Rolling Design Concept, It Can Release Internal Stress From The Sheets, Then The Sheet Will Be In Good Shape And High Precision.
|
|
|
Diameter Of Shafts
|
Φ80mm Solid
|
|
|
Material Of Shafts
|
High Grade 45#,With Heat Treatment
|
|
|
Forming Speed
|
15 M/Min
|
|
|
Voltage
|
380v/50hz/3p (As Requested)
|
|
|
Transmission Way
|
By 1 Inch Chain (Double Chains)
|
|
|
Main Motor
|
11 kw
|
|
|
Cutting Blade Material
|
Gcr12 quenched treatment
|
|
|
Cutting Type
|
hydraulic post cutting
|
|
|
Driving Method
|
By pillar type Cylinder
|
|
5T Manual Decolier For Free
Feeding Device
1.Hand wheels on both sides can be used to adjust the feeding width.
2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.
3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.
Roll Forming And Transmission Device
1.rollers thick chromed good hardness for long service time.
2. Each roller has number and with keynotes, it can fix on the shaft stablely
3.gear and double chain,stable
Hydraulic Cutting Device
We use four pillars cutting system structure, it can make sure the cutting stable
PLC control system
Hydraulic station
● Hydraulic station motor:5.5KW
● Hydraulic oil:46# hydraulic oil
● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
