Quick Details
-
The Main electrical appliances:
-
Taiwan also
-
Hydraulic valve:
-
Taiwan's seven ocean
-
motor:
-
Wuxi taihu lake
-
High pressure tubing:
-
Produced
-
The oil pump:
-
Zhejiang yongling
-
Oil cylinder:
-
Produced
-
Travel switch:
-
Changde
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
1100
-
Machine case:
-
Produced
-
The Main electrical appliances:
-
Taiwan also
-
Hydraulic valve:
-
Taiwan's seven ocean
-
motor:
-
Wuxi taihu lake
-
High pressure tubing:
-
Produced
-
The oil pump:
-
Zhejiang yongling
-
Oil cylinder:
-
Produced
-
Travel switch:
-
Changde
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support

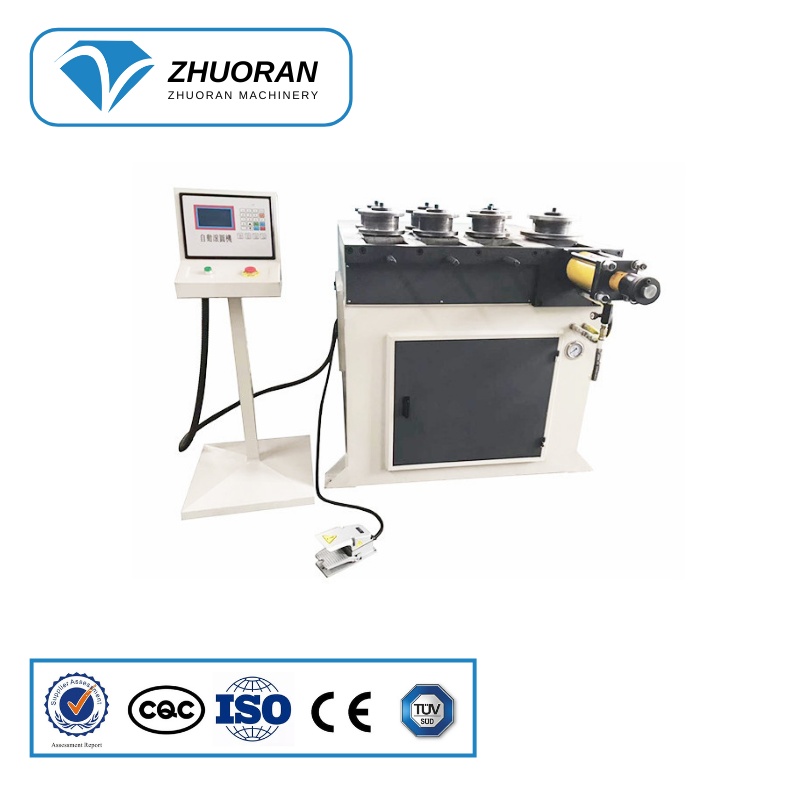

Stainless steel pipe rolling machine Hydraulic pneumatic roller bending machine
Tube / Bar Rolling Machine
1.
Semi-automatic or fully automatic pipe rolling machines are available.
.
2. Pneumatic or hydraulic are available.
3. It can process general iron pipes, steel pipes, aluminum pipes, copper pipes, stainless steel pipes, bar materials, PVC pipes, nylon pipes, hexagonal rods, etc.
GY60NC
Roller machine
4. side wheels can feed workpieces on both sides;
5. foot switch plus emergency stop function, easy to operate;
6. the machine transmission balance, only need to adjust the compression, can obtain different curvature of the circular, arc or spiral；
7. changing the mold groove, can process all kinds of metal profiles, such as angle steel, flat steel, round pipe and other special section profiles.
|
Model
|
GY60NC-7
|
Note
|
|
Maximum bending capacity
|
Φ60mm x 2mm
|
Specifications can be customized according to customer requirements
|
|
Minimum bend radius
|
R≥10D
|
|
|
Bending speed
|
Adjustable
|
|
|
Die diameter
|
180mm
|
|
|
Shaft diameter
|
60mm
|
|
|
Hydraulic motor power
|
5.5kw
|
|
|
Machine Dimensions
|
2100mm x 1220mm x1100mm
|
|
|
Machine weight
|
1100kg
|
|
Zhangjiagang Zhuoran Machinery Co., LTD
has been engaged in the production of pipe processing machinery for 10 years, with strong design and development capabilities, using the latest 3D design technology and PROE high-precision production and testing equipment, has developed a variety of automatic pipe processing machines.
A: Are you a factory or a trading company?
Q: We are a professional pipe equipment manufacturer with a history of 10 years. We always pay attention to the development of the industry! We can give you a discount according to the quantity of machines you buy.
A: What certifications do you have?
Q: At the same time, we take effective measures to control the production process and ensure product quality. Our products are certified. And can provide SGS, TUV, ISO9001, ISO14001, CE and other certifications.
A: Where is your factory located?
Q: Our factory is located in Nanfeng Town, Zhangjiagang, Jiangsu Province, China, warmly welcome customers at home and abroad to visit!
A: Do you have any agents or distributors overseas?
Q: We hope to cooperate with overseas agents to become our agents, there will be a variety of preferential policies and provide various technical support.
A: When can I get my machine after I pay?
Q: Usually the production time is around 15-25 working days, depending on the type of machine you order, some off-the-shelf products can be shipped directly.
How long is your warranty?
Q: Regarding the warranty, we usually offer a 1.5 year warranty, we can also offer lifetime maintenance.
