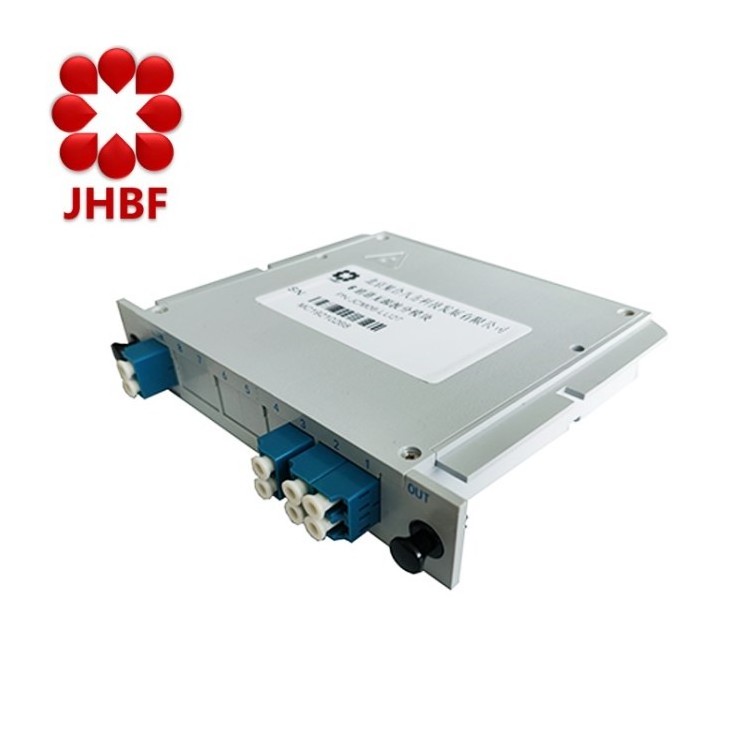

Chinese Supplier 8 Channel 1471 to 1611nm CWDM LGX Box Mux Demux fiber optic multiplexer

Chinese Supplier 8 Channel 1471 to 1611nm CWDM LGX Box Mux Demux fiber optic multiplexer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $72

≥10 Pieces

US $69

≥50 Pieces

US $66

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: JHBF

Product name:: Passive CWDM

Wavelength:: 1471~1611nm

Channel Number:: 8

Connector:: LC

Channel Spacing:: 20nm

1dB Bandwidth:: >14nm

Insertion Loss:: <2.4dB

Adjacent Isolation:: >25dB

Temperature:: 0~70

Certification:: ISO9001;14001;OHSAS18001

Quick Details

Type:: Fiber Optic Multiplexer

Model Number:: JCM08-LU47

Place of Origin:: Beijing, China

Brand Name:: JHBF

Product name:: Passive CWDM

Wavelength:: 1471~1611nm

Channel Number:: 8

Connector:: LC

Channel Spacing:: 20nm

1dB Bandwidth:: >14nm

Insertion Loss:: <2.4dB

Adjacent Isolation:: >25dB

Temperature:: 0~70

Certification:: ISO9001;14001;OHSAS18001

Products Description

CWDM/DWDM Mux and Demux

JHBF JCM/JDM series passive CWDM/DWDM multiplexer and demultiplexer utilizes thin film filter technology and Athermal Arrayed
Waveguide Grating technology to multiplex 4/6/8/12/16/32/40/80 diffent wavelength signal into one fiber, it supports CWDM/DWDM ITU wavelength, low insertion loss, high channel isolation, wide passband, low-temperature sensitivity.
JHBF JCM/JDM series product is simple, transparent, cost effective, high reliability and easy to install, it is widely used for
data center interconnection, 4G/5G mobile fronthaul. Combine with JHBF CWDM/DWDM series optical transceivers, it is the best way
to save fiber.

Details Images

Highlights

* Passive, no need power, high reliability, support outdoor application;
* Be transparent to any service signals, it can support FE/GE/10GE/25GE/100GE, OTU1/OTU2/OTU3, FC1/2/4/8/10, STM1/4/16/64, and
others;
* Small and light, Industrial, can be placed flexibly;
* Plug and play, easily install and maintenance, no need any configuration;
* Zero transmission delay, improve transmission performance, support further distance;
* Low CAPEX and low OPEX, Low TCO.

Application

It is widely used for data center interconnection, metro and acess network, 4G/5G mobile fronthaul.

3/4/5G mobile fronthaul

Data center Interconnection

Metro Network

Specifications

DWDM series	JDM/JDB04-LU21L	JDM/JDB08-LU21L	JDM/JDB16-LU21L	JDB32-LU21R	JDB40-LU21R
Channel Number	4	8	16	32	40
Channel Wavelength	ITU C21-C25	ITU C21-C28	ITU C21-C36	ITU C21-C56	ITU C21-C60
Channel Spacing (GHz)	100	100	100	100	100
1dB Bandwidth (nm)	>0.4	>0.4	>0.4	>0.4	>0.4
Insertion Loss (dB)	1.8	3.0	3.5	<5.7	<5.7
Uniformity (dB)	<1.2	<1.2	<1.2	<1.2	<1.2
Ripple (dB)	<0.5	<0.5	<0.5	<0.5	<0.5
Adjacent Isolation (dB)	28	28	28	>25	>25
Non-Adj Isolation (dB)	40	40	40	>30	>30
Return Loss (dB)	>45	>45	>45	>45	>45
Operating Temperature (℃)	0～+70	0～+70	0～+70	-5～65	-5～65
Storage Temperature (℃)	-40～85	-40～85	-40～85	-40～85	-40～85
Connector	LC or SC	LC or SC	LC or SC	LC	LC
Dimension(mm)	LGX:217x185x26 1U:429x232x43.6	LGX:217x185x26 1U:429x232x43.6	LGX:217x185x26 1U:429x232x43.6	1U:426x300x43.2	1U:426x300x43.2

CWDM series	JCM06-LU27	JCM12-LU27	JCM18
Channel Number	6	12	18
Channel Wavelength(nm)	1271~1371	1271~1371, 1471~1571	1271~1611
Channel Spacing (nm)	20	20	20
1dB Bandwidth (nm)	14	14	14
Insertion Loss (dB)	<2.1	<3.0	<3.5
Adjacent Isolation (dB)	>25	>25	>25
Non-Adj Isolation (dB)	>35	>35	>35
Return Loss (dB)	>40	>40	>40
IL Temperature Sensitivity(dB/℃)	<0.005	<0.005	<0.005
Operating Temperature (℃)	0～+70	0～+70	0～+70
Storage Temperature (℃)	-40～85	-40～85	-40～85
Connector	LC	LC	LC
Dimension(mm)	13012025	13012025	13012050
