Quick Details
-
Brand Name:
-
ELEJOY
-
Model Number:
-
WS-M150-14.6V
-
Work Time (h):
-
100000 hours
-
Max PV Power:
-
150W
-
Max PV Voltage:
-
25V
-
Certificate:
-
CE
-
Warranty:
-
1 year
-
WEIGHT:
-
130g
-
PV Voltage:
-
25V
-
PV Power:
-
150W
Quick Details
-
Type:
-
MPPT
-
Application:
-
Solar Working Station, Solar System Controller, Voltage Controller, Charger Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ELEJOY
-
Model Number:
-
WS-M150-14.6V
-
Work Time (h):
-
100000 hours
-
Max PV Power:
-
150W
-
Max PV Voltage:
-
25V
-
Certificate:
-
CE
-
Warranty:
-
1 year
-
WEIGHT:
-
130g
-
PV Voltage:
-
25V
-
PV Power:
-
150W
Professional MPPT solar charge controller factory in China
All of the MPPT solar charge controllers have passed CE certification.
MPPT: Maximum Power Point Tracking
The MPPT controller utilizes Solar Maximum Power Point
Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.

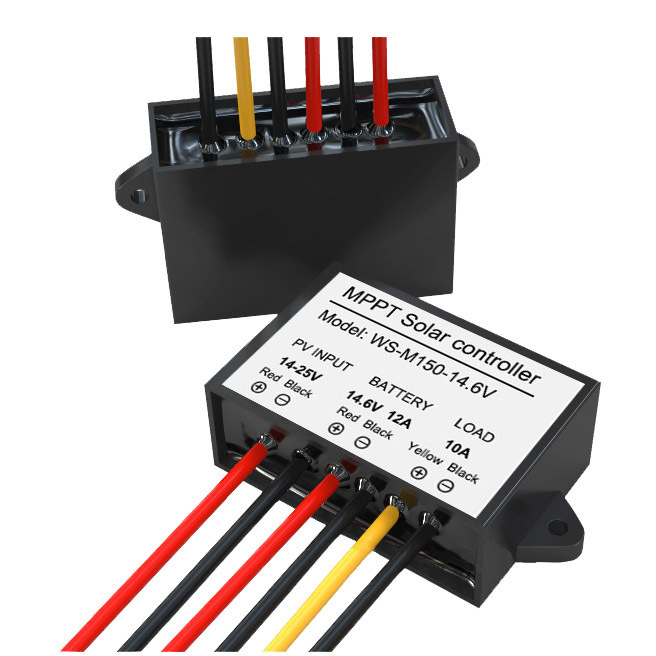

| PRODUCT NAME | MPPT SOLAR CONTROLLER | |
| MANUFACTURER | WANSAN | |
| MODEL | WS-M150-14.6V | |
| CHARGING MODULE | PHOTOVOLTAIC INPUT POWER | 150W |
| PHOTOVOLTAIC INPUT VOLTAGE | 14-25V | |
| OUTPUT TO BATTERY VOLTAGE | 14.6V | |
| OUTPUT TO BATTERY CURRENT | 12A | |
| PWM CONVERSION EFFCIENCY | 97% | |
| MPPT EFFECTIVENESS | 99% | |
| DISCHAGING MODULE | INPUT VOLTAGE | EQUAL BATTERY VOLTAGE |
| LOAD OUTPUT VOLTAGE | EQUAL BATTERY VOLTAGE | |
| LOAD OUTPUT CURRENT | 10A | |
| LOAD OUT TYPE | NORMALLY OPEN | |
| PROTECTION MODULE | BATTERY OUTPUT UNDERVOLTAGE PROTECTION | 11.2V(10 seconds delay) |
| BATTERY SHORT CIRCUIT PROTECTION | YES | |
| LOAD SHORT CIRCUIT PROTECTION | YES | |
| TEMPERATURE PROTECTION | YES | |
| IP CLASS | IP67 | |
| LINE LENGTH | 10CM | |
| DIMENSIONS | 58mm × 40mm × 22mm | |
| N.W. | 115g | |
COMPANY INFORMATION
FAQ:
1. Are you a manufacturer?
100% yes, if you have a chance, you can visit our factory anytime.
2. Do you have any MOQ limit?
One piece is possible, you can buy one sample for testing first.
3. What about the lead-time?
Normally 1-2 working days after receive the payment.
4. How to pay for the sample fee?
Please send the payment to our PayPal account or from Alibaba directly.
5. How do you ship the goods?
We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.
6. Do you offer guarantee for the products?
Yes, we offer 1-year warranty for all solar charge controllers.
7. I cannot find the suitable model, can I ask for a special model I need?
Sure. We are professional solar charge controllers designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
