Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
2''
-
Diameter:
-
customized
-
Product name:
-
square shaft helical piers
-
Helix Plate material:
-
conforms to ASTM A36
-
Surface treatment:
-
Hot Dip Galvznized
-
Helices thickness:
-
3/8" and 1/2"
-
Size:
-
all sizes or as your requirement
-
Degress:
-
45 degress
-
Corrosion protection:
-
conform to ASTM A153 standard
-
Sample:
-
available
-
OEM:
-
available
Quick Details
-
System of Measurement:
-
INCH
-
Material:
-
Steel
-
Capacity:
-
Strong
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
2''
-
Diameter:
-
customized
-
Product name:
-
square shaft helical piers
-
Helix Plate material:
-
conforms to ASTM A36
-
Surface treatment:
-
Hot Dip Galvznized
-
Helices thickness:
-
3/8" and 1/2"
-
Size:
-
all sizes or as your requirement
-
Degress:
-
45 degress
-
Corrosion protection:
-
conform to ASTM A153 standard
-
Sample:
-
available
-
OEM:
-
available
Product Overview

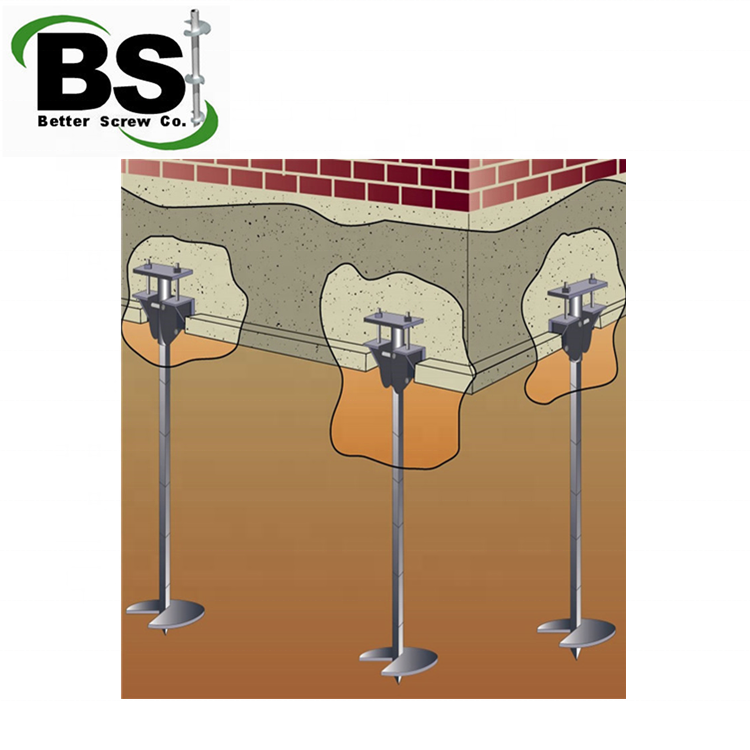

What is a Helical Pile?
Helical piles are a form of prefabricated
deep foundation
, they
are an important piece of underground construction technology which
invisibly hold buildings and bridges
in place.
Most helical piles are round hollow shafts or square solid shafts, extruded from steel and come in a wide variety of diameters and gauges, to serve different types of projects.
The purpose of a helical pile is to
provide foundational support for structures of all types and sizes.
Just like old-fashioned pile-foundations, helical piles (also referred to as screw piles, helical piers, helical anchors, etc.) are embedded deep underground in order to disperse the enormous weight which sits atop them. Multiple piles are installed to create a platform, on which a building, a bridge or any number of other large structures can rest.
Features
Helical piles
are growing in popularity in an exponential manner due to the many advantages they offer. In short, helical piles are a very versatile deep foundation and this versatility results in a long list of benefits, including but not limited to:
* Fast Installation.
Helical piles are small and don't require equipment like cranes for transportation.
* Environmentally Friendly.
* High Load Bearing Capacity.
* Improved Versatility.
* Cost-Effective.
* Great Accuracy.
* Reduced Impact on the Site.
* Delivers Stability to Foundations on Any Soil.
* Environmentally Friendly.
* High Load Bearing Capacity.
* Improved Versatility.
* Cost-Effective.
* Great Accuracy.
* Reduced Impact on the Site.
* Delivers Stability to Foundations on Any Soil.
Specification
Square Tubular Shaft Helical Piles
* Available in
2", 2.5", 3" or 4"
square tube
* helices thickness are available in 3/8” and 1/2”
* Helices material conforms to ASTM A36 hot rolled plate
* All helix leading edges sharpened and rock cut and 45 degrees.
* Corrosion protection to conform to ASTM A153 standard for hot dipped zinc coating
* Square Tube eliminated over torquing concerns associated with pipe style helicals
* Efficient torque transfer
* Clear visual indicator of torsional deflection
* helices thickness are available in 3/8” and 1/2”
* Helices material conforms to ASTM A36 hot rolled plate
* All helix leading edges sharpened and rock cut and 45 degrees.
* Corrosion protection to conform to ASTM A153 standard for hot dipped zinc coating
* Square Tube eliminated over torquing concerns associated with pipe style helicals
* Efficient torque transfer
* Clear visual indicator of torsional deflection
|
Specifications
|
|
|
|
|
||||
|
Size
|
Tube Thickness(inch)
|
Lead Length (ft)
|
Helix Size (inch)
|
Extension Length(ft)
|
||||
|
2"
|
5/16"
|
3ft/5ft/7ft
|
8/10/12/14
|
3ft/5ft/7ft/10ft
|
||||
|
2.5"
|
5/16" or 3/8"
|
3ft/5ft/7ft
|
8/10/12/14
|
3ft/5ft/7ft/10ft
|
||||
|
3"
|
5/16" or 3/8"
|
3ft/5ft/7ft/10ft
|
8/10/12/14
|
3ft/5ft/7ft/10ft
|
||||
|
4"
|
5/16" or 3/8" or 7/16”
|
3ft/5ft/7ft/10ft
|
8/10/12/14
|
3ft/5ft/7ft/10ft
|
||||
Applications
