Quick Details
-
Model Number:
-
XY--PLH
-
Specification:
-
1"inch~12"inch
-
Length:
-
as customer request
-
Thickness:
-
as customer request
-
Standard:
-
ISO9001~2008
-
product name:
-

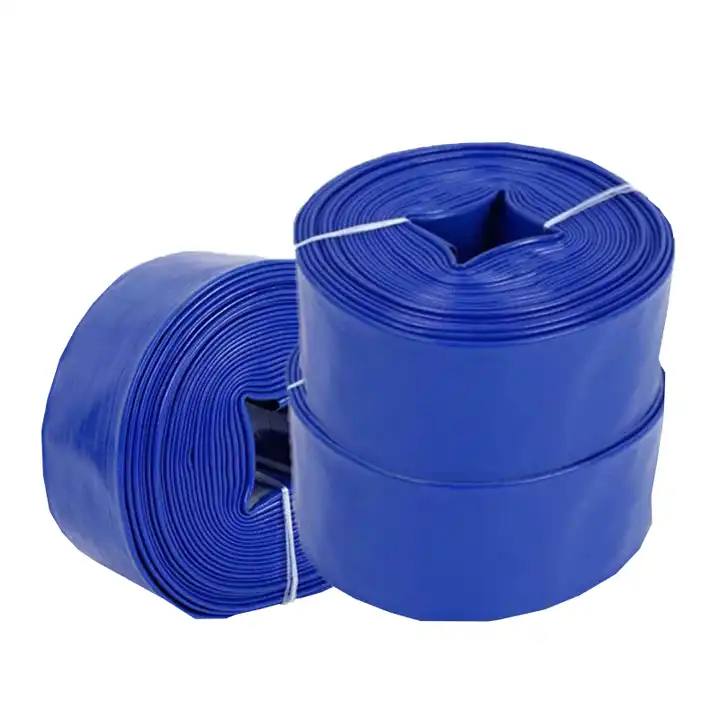

pvc layflat hose
-
brand name:
-
xiyuanflex
-
Color:
-
as customer request
-
Temperature:
-
-10℃ to 65℃
-
type:
-
economy duty, medium duty, heavy duty
-
standard length:
-
100mtr/roll
-
working pressure:
-
4 ~ 10 bar
-
description:
-
with original technic from Japan, the hose is finished with one-step
-
feature:
-
the hose adhesion is very strong that owns very long life
-
application:
-
farming irrigation, industrial liquid
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XIYUANFLEX
-
Model Number:
-
XY--PLH
-
Specification:
-
1"inch~12"inch
-
Length:
-
as customer request
-
Thickness:
-
as customer request
-
Standard:
-
ISO9001~2008
-
product name:
-
pvc layflat hose
-
brand name:
-
xiyuanflex
-
Color:
-
as customer request
-
Temperature:
-
-10℃ to 65℃
-
type:
-
economy duty, medium duty, heavy duty
-
standard length:
-
100mtr/roll
-
working pressure:
-
4 ~ 10 bar
-
description:
-
with original technic from Japan, the hose is finished with one-step
-
feature:
-
the hose adhesion is very strong that owns very long life
-
application:
-
farming irrigation, industrial liquid
PRODUCT DISCRIPTION
PRODUCT SPECIFICATION
|
Economic Duty PVC layflat hose
|
|
|
|
|
|
|
|
||||||
|
I.D.(inch)
|
I.D.(mm)
|
Standard length(mtr/roll)
|
Working Pressure(Bar)
|
Bursting Pressure(Bar)
|
Weight(kg/roll)
|
Measurement(width×height)
|
|
||||||
|
1''
|
25
|
100
|
4
|
12
|
15
|
67*5
|
|
||||||
|
1-1/4''
|
32
|
100
|
4
|
12
|
17
|
64*6
|
|
||||||
|
1-1/2''
|
38
|
100
|
4
|
12
|
20
|
63*7
|
|
||||||
|
2''
|
51
|
100
|
4
|
12
|
23
|
60*9
|
|
||||||
|
2-1/2''
|
64
|
100
|
4
|
12
|
32
|
64*12
|
|
||||||
|
3''
|
76
|
100
|
4
|
12
|
36
|
64*14
|
|
||||||
|
4''
|
102
|
100
|
4
|
12
|
55
|
67*18
|
|
||||||
|
5''
|
127
|
100
|
4
|
12
|
75
|
68*22
|
|
||||||
|
6''
|
153
|
100
|
4
|
12
|
90
|
68*26
|
|
||||||
|
8''
|
204
|
100
|
4
|
9
|
160
|
79*34
|
|
||||||
|
10''
|
254
|
100
|
4
|
9
|
260
|
85*42
|
|
||||||
|
12''
|
305
|
100
|
4
|
6
|
290
|
85*50
|
|
||||||
|
Mediun duty pvc layflat hose
|
|
|
|
|
|
|
|
||||||
|
I.D.(inch)
|
I.D.(mm)
|
Standard length(mtr/roll)
|
Working Pressure(Bar)
|
Bursting Pressure(Bar)
|
Weight(kg/roll)
|
Measurement(width×height)
|
|
||||||
|
3/4''
|
19
|
100
|
6
|
18
|
11.5
|
67*305
|
|
||||||
|
1''
|
25
|
100
|
6
|
18
|
17
|
68*5
|
|
||||||
|
1-1/4''
|
32
|
100
|
6
|
18
|
19
|
68*6
|
|
||||||
|
1-1/2''
|
38
|
100
|
6
|
18
|
22
|
67*7
|
|
||||||
|
2''
|
51
|
100
|
6
|
18
|
28
|
66*9
|
|
||||||
|
2-1/2''
|
64
|
100
|
6
|
18
|
38
|
72*11
|
|
||||||
|
3''
|
76
|
100
|
6
|
18
|
46
|
73*13
|
|
||||||
|
4''
|
102
|
100
|
6
|
18
|
65
|
77*18
|
|
||||||
|
5''
|
127
|
100
|
6
|
8
|
90
|
78*22
|
|
||||||
|
6''
|
153
|
100
|
5
|
15
|
150
|
84*26
|
|
||||||
|
8''
|
204
|
100
|
4
|
12
|
200
|
83*34
|
|
||||||
