Quick Details
-
Color:
-
Full color
-
Panel Size:
-
960mm*960mm, 960mm*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MT-FONPNSN1A10
-
Pixel Pitch:
-
2.5mm 3mm 4mm 5mm 6mm 8mm 10mm, 2.5mm 3mm 4mm 5mm 6mm 8mm 10mm
-
IP Rating:
-
IP65, IP65
-
HS Code:
-
8531200000
-
View Angle（H/V）:
-
140°, 140°
-
Tube Chip Color:
-
FULL COLOR
-
Operating Temperature:
-
- 20℃~+50℃
-
Pixel Configuration:
-
SMD 1R1G1B
-
Certificate:
-
CE ROHS for LED Videotron Outdoor
-
Warranty:
-
5 Years
-
Power Supply:
-
AC 110/220V
-
Life span:
-
100,000hours
-
Usage:
-
outdoor
-
Screen Dimension:
-
Customized Size
Quick Details
-
Application:
-
Advertising, commercial
-
Type:
-
LED
-
Brand Name:
-
Maxtop
-
Color:
-
Full color
-
Panel Size:
-
960mm*960mm, 960mm*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MT-FONPNSN1A10
-
Pixel Pitch:
-
2.5mm 3mm 4mm 5mm 6mm 8mm 10mm, 2.5mm 3mm 4mm 5mm 6mm 8mm 10mm
-
IP Rating:
-
IP65, IP65
-
HS Code:
-
8531200000
-
View Angle（H/V）:
-
140°, 140°
-
Tube Chip Color:
-
FULL COLOR
-
Operating Temperature:
-
- 20℃~+50℃
-
Pixel Configuration:
-
SMD 1R1G1B
-
Certificate:
-
CE ROHS for LED Videotron Outdoor
-
Warranty:
-
5 Years
-
Power Supply:
-
AC 110/220V
-
Life span:
-
100,000hours
-
Usage:
-
outdoor
-
Screen Dimension:
-
Customized Size

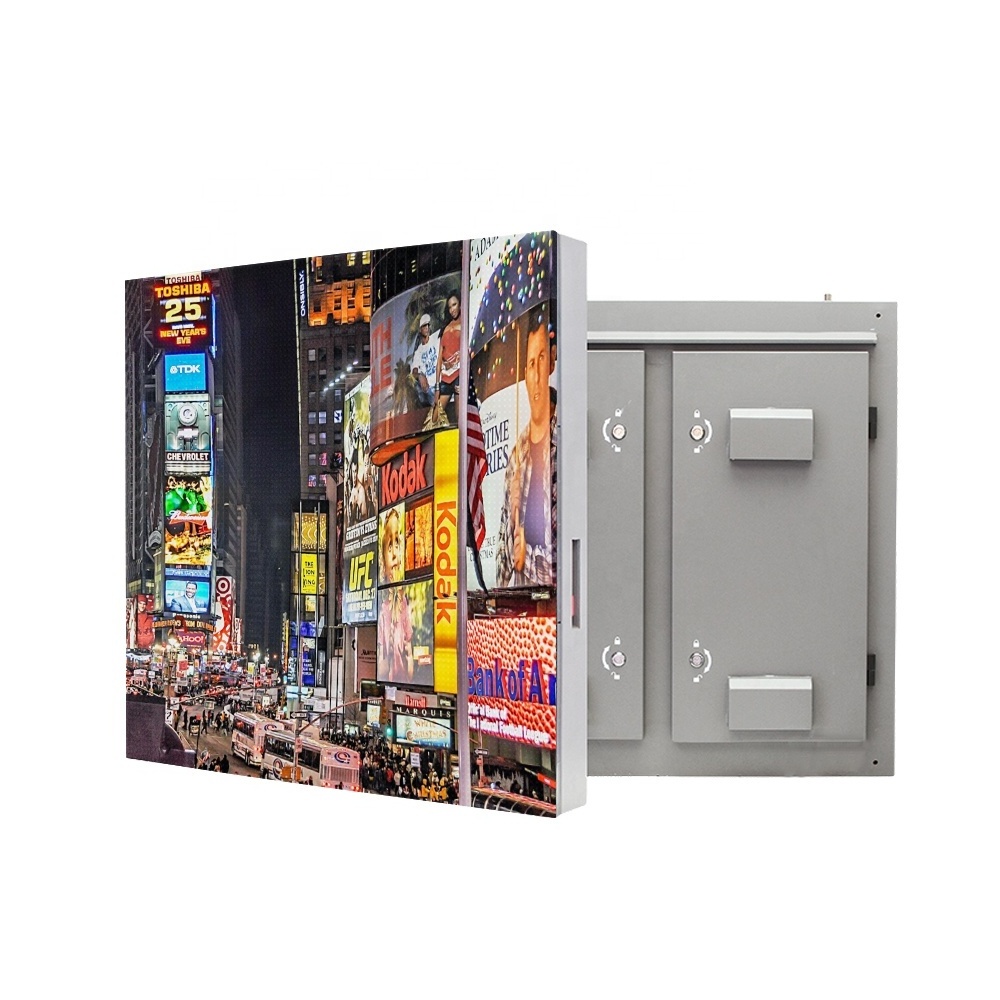

MAX TOP LED Videotron Outdoor
Technical Specifications:
| Specification of Modules | |||||||||
| NO. | Item | Specification | |||||||
| 1 | Pixel Pitch | 6.67mm | |||||||
| 2 | LED encapsulation | KN-light SMD3535 Copper material | |||||||
| 3 | Module Size | 320x160mm | |||||||
| 4 | Module Resolution | 22200 pixel/m2 | |||||||
| 5 | Driving IC | ICN2038 IC | |||||||
| 6 | Refresh Rate | 1920Hz | |||||||
| 7 | Scan Model | 1/6 Scan | |||||||
| 8 | Brightness | >5000 nilts/m2 | |||||||
| 9 | PCB Board | Standard | |||||||
| 10 | Plastic Basic and Mask | Standard | |||||||
| 11 | Waterproof Grade | Front IP65 | |||||||
| 12 | Maintenance mode | Back service | |||||||
| 13 | Ave. Power Consumption | 17W | |||||||
| 14 | Max Power Consumption | 55W | |||||||
| 15 | Horizontal Viewing Angle | 120° (Standard LEDs Viewing Angle) | |||||||
| 16 | Vertical Viewing Angle | 120° (Standard LEDs Viewing Angle) | |||||||
| 17 | Input Voltage | AC110V/220V/380V±10% | |||||||
| 18 | Input Power Frequency | 50/60Hz | |||||||
| 19 | Frame Rate | > 60 frames/sec | |||||||
| 20 | Brightness Adjustment | Manual, 256 level; Auto, 8 levels | |||||||
| 21 | Operating Temperature | –20℃~+50℃ 10%~90%RH | |||||||
| 22 | Defect Rate | ≤0.0002 | |||||||
| 23 | Data Transfer Method | RJ45 | |||||||
| 24 | Humidity | 0--90% | |||||||
| 25 | Control Method | Synchronized with computer monitor | |||||||
| 26 | Color Temperature | 6500K±500 | |||||||
| 27 | LEDs Lifetime | >100,000 Hours | |||||||
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample orders to test and check quality. Both for a module or the whole screen.
Q2. What about the lead time?
A: Orders less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display orders?
A: Low MOQ, 1 square meter, or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept FOB train terms, but we can help you order and arrange a shipping agent. It usually takes 20 to 30 days on the sea. a few days for customs clearance
Q5. How to proceed with an order for an LED display?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 5 years warranty on our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send a new module with a new order for a small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to the real situation.
